DF-G2 High Speed Expert
Small Object Counter
Quick Start Guide
Advanced sensor with dual digital displays for small object counting applications
For complete technical information about this product, including dimensions, accessories, and specifications, see
www.bannerengineering.com
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to
serious injury or death. This device does not include the self-checking redundant circuitry necessary
to allow its use in personnel safety applications. A sensor failure or malfunction can cause either an
energized or de-energized sensor output condition.
Overview

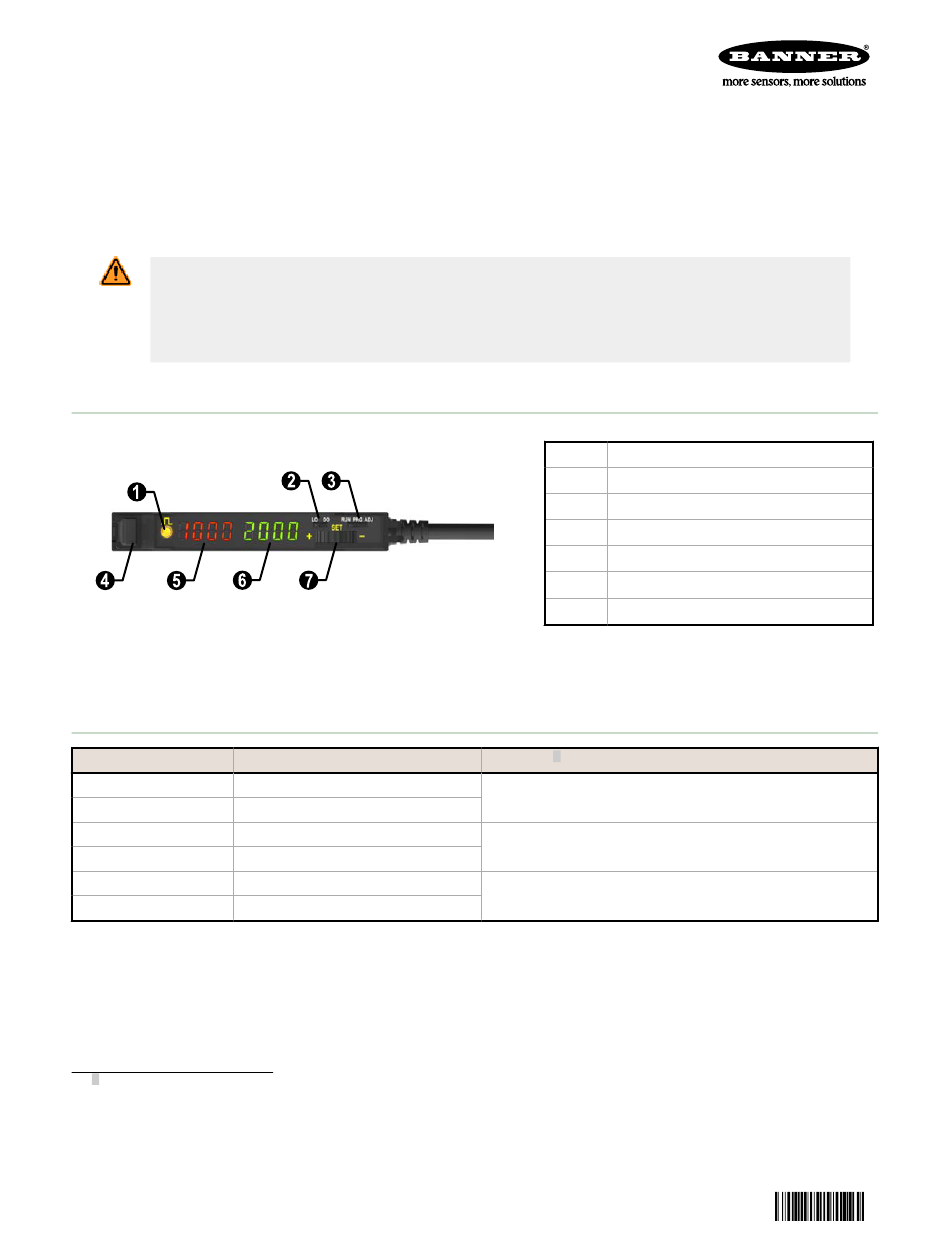

Figure 1. DF-G2 Model Features
Models
Model
Outputs
DF-G2-NC-2M
Single NPN, plus Health Mode output
DF-G2-PC-2M
Single PNP, plus Health Mode output
DF-G2-NC-Q5
Single NPN, plus Health Mode output
DF-G2-PC-Q5
Single PNP, plus Health Mode output
DF-G2-NC-Q7
Single NPN, plus Health Mode output
DF-G2-PC-Q7
Single PNP, plus Health Mode output
1 Connector options:
•
A model with a QD connector requires a mating cordset
•
For 9 m cable, change the suffix 2M to 9M in the 2 m model number (example, DF-G2-NC-9M)
•
For 150 mm (6 in) PVC cable with a 5-pin M8/Pico-style QD model, change the suffix 2M to Q3 in the 2 m model number
(example, DF-G2-NC-Q3)
•
For Q3 and Q7 models, use a 5-pin M8/Pico-style or a 6-pin M8/Pico-style mating cordset
Original Document
178061 Rev. E
™
and search 178236.
9 September 2015
Dual Display
1
Output LED
2
LO/DO Switch
3
RUN/PRG/ADJ Mode Switch
4
Lever Action Fiber Clamp
5
Red Signal Level
6
Green Threshold
7
+/SET/- Rocker Button
Connector 1
2 m (6.5 ft) cable, 5-wire
150 mm (6 in) PVC cable with a 5-pin M12/Euro-style quick
disconnect
Integral 5-pin M8/Pico-style quick disconnect
http://
178061
Advertisement
Table of Contents
Related Manuals for Banner High Speed Expert DF-G2
Summary of Contents for Banner High Speed Expert DF-G2
- Page 1 DF-G2 High Speed Expert Dual Display ™ Small Object Counter Quick Start Guide Advanced sensor with dual digital displays for small object counting applications For complete technical information about this product, including dimensions, accessories, and specifications, see http:// www.bannerengineering.com and search 178236. WARNING: Not To Be Used for Personnel Protection Never use this device as a sensing device for personnel protection.
-
Page 2: Installation Instructions
™ DF-G2 High Speed Expert Dual Display Small Object Counter Fiber Optic Arrays Detection Window Models 2 Minimum Object Size 3 Fiber Exit Dimensions PFCVA-10X25-S Side exit 10 mm x 25 mm 1.5 mm PFCVA-10X25-E End exit PFCVA-25X25-S Side exit 25 mm x 25 mm 3 mm PFCVA-25X25-E... -
Page 3: Fiber Adapters
NOTE: If a thin fiber with less than 2.2 mm outer diameter is used, install the fiber adapter provided with the fiber assembly to ensure a reliable fit in the fiber holder. Banner includes the adapters with all fiber assemblies. -
Page 4: Wiring Diagrams
™ DF-G2 High Speed Expert Dual Display Small Object Counter Wiring Diagrams PNP Models NPN Models 1 = Brown – 2 = White 10–30 V dc 10-30V dc 3 = Blue – 4 = Black 5 = Gray Load Load (6 = no connection) Health Health... -
Page 5: Remote Input
™ DF-G2 High Speed Expert Dual Display Small Object Counter Operating Instructions Remote Input For more information about how to perform TEACH/SET methods and to program the sensor remotely, see www.bannerengineering.com and search 178236. Run Mode Run mode allows the sensor to operate normally and prevents unintentional programming changes. The +/SET/- rocker button is disabled during RUN mode, except when using Window SET, see Window SET on page 6. -
Page 6: Adjust Mode
™ DF-G2 High Speed Expert Dual Display Small Object Counter Factory Default Settings: Setting Factory Default Threshold 3700 (typical) TEACH Selection Window SET Response Speed Standard: 250 µs Offset Percent Totalizer Counts Totalizer One-Shot Dynamic Event Stretcher Display Readout Numeric, ECO disabled, Normal Orientation Adjust Mode Sliding the RUN/PRG/ADJ mode switch to the ADJ position allows the user to perform Expert TEACH/SET methods. - Page 7 ™ DF-G2 High Speed Expert Dual Display Small Object Counter A single sensing condition is presented, and the sensor positions a threshold a programmable % offset below the presented condition. When a condition darker than the threshold is sensed, the output either turns ON or OFF, depending on the LO/DO setting.
-
Page 8: Specifications
™ DF-G2 High Speed Expert Dual Display Small Object Counter SET Result % Offset Meaning PASS (with % Offset) Displays the % offset used for the SET method FAIL (with % Offset) Displays the minimum required % offset necessary to PASS the SET method FAIL (without % Offset) Presented condition cannot be used for the SET method Health Mode Alarm... - Page 9 Banner Engineering Corp. Limited Warranty Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty period.
