Related Manuals for Hoover HV-RTMWD332
Summary of Contents for Hoover HV-RTMWD332

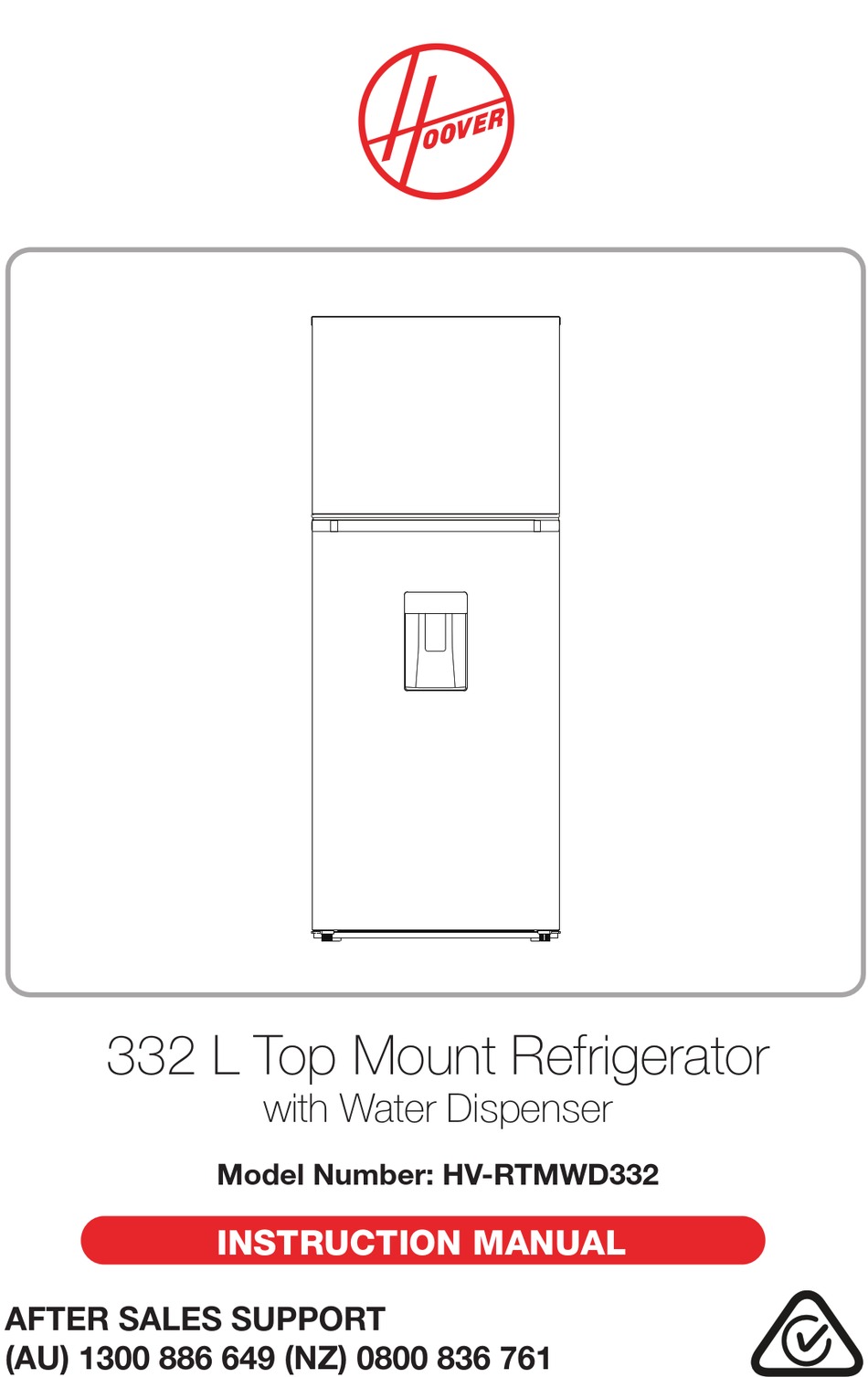

- Page 1 332 L Top Mount Refrigerator 不 带外 显 FC2 -4 55 D，不 带 外显 with Water Dispenser Model Number: HV-RTMWD332 INSTRUCTION MANUAL FC 2 AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761 E209...
-
Page 2: Table Of Contents
Contents General Safety Instructions Product Overview Getting Started Instructions FAQs and Troubleshooting Guide Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support... -
Page 3: General Safety Instructions
General Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. - Page 4 General Safety Instructions (Cont.) To reduce the risk of fire, electric shock or injury, always follow basic safety precautions and accident prevention measures when using this appliance, including the following: Electrical safety • Voltage: Plug the appliance in a 220–240 V, 50 Hz, properly earthed power outlet, which must be in good working order.
- Page 5 General Safety Instructions (Cont.) • Usage restrictions: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. •...
- Page 6 Other Useful Information (Cont.) • Location: Install the appliance in an area that meets the following requirements: • Ambient temperature: The ambient temperatures must correspond to the climate class (T) indicated on the rating plate of the appliance (16 °C–43 °C). •...
-
Page 7: Product Overview
Product Overview Scope of delivery Top mount refrigerator Other inclusions (not shown) Hinge cover (for door reversal) Freezer shelf Instruction manual Water Dispenser Quick start guide Fridge Shelves (x2) Warranty certificate Crisper Leveling feet Door balconies (x2 freezer, x3 fridge) NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. -
Page 8: Getting Started
Getting Started Unpacking • Packaging materials: This product has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. - Page 9 Getting Started (Cont.) • Overhanging wall units: To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units.
-
Page 10: Instructions
Instructions Temperature regulation This refrigerator has two separate temperature controls, one in the freezer and one in the fridge compartment, so you can adjust the temperature in each compartment separately according to the food stored. First Use The first time you turn the unit on, set the temperature controls to SUMMER (freezer) and COLDEST (fridge) for 2–3 hours before loading the compartments. - Page 11 Instructions (Cont.) Fresh food storage tips • In order to maintain good cooling efficiency and save energy, do not open the doors for too long or too often. • Do not overload the fridge. • Keep enough space around items for cold airflow. •...
- Page 12 Instructions (Cont.) Water Dispenser The refrigerator is equipped with a water dispenser located in the door (Fig. 6), which allows for convenient access to chilled water at the touch of a button. Cleaning the Water Dispenser Before using the water dispenser for the first time, remove and clean the water tank. It is recommended that you clean the water dispenser components every 3 to 6 months, depending on how often it is used.
- Page 13 Instructions (Cont.) Filling the Water Dispenser • Open the small lid on the tank balcony (Fig. 10). • Carefully fill the water tank with clean, drinkable water up to the 2 L mark. • Close the small lid. NOTE: • Do NOT fill the water dispenser with any liquids other than plain or purified water. •...
- Page 14 Instructions (Cont.) The freezer compartment The freezer compartment, located at the top of the appliance, is equipped with a glass shelf and door balcony for convenient access and organised storage. It is suitable for freezing domestic quantities of fresh food and long-term storage (up to three months) of frozen food.
- Page 15 Instructions (Cont.) Energy saving tips • Locate the appliance in the coolest area of the room, away from heat-producing appliances and out of direct sunlight. • Let hot foods cool to room temperature before placing them in the freezer. Overloading the compartments forces the compressor to run longer. •...
-
Page 16: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide If you experience a problem with the appliance, check in the following table for solutions to help you solve the problem. If none of the solutions offered help you solve the problem, please contact our after sales support centre for advice. Problem Possible cause The appliance does not... - Page 17 FAQs and Troubleshooting Guide (Cont.) Problem Possible cause The appliance freezes or • The temperature is set too cold. Turn it to a warmer cools too much. setting temporarily. Food in the freezer • The freezer temperature is set too warm; set it to a compartment is not colder setting.
-
Page 18: Other Useful Information
Other Useful Information WARNING! To reduce the risk of electric shock or injury, always switch off the appliance and disconnect it from the power supply before cleaning or maintenance. Cleaning the appliance For hygienic reasons the appliance interior, including the interior accessories, should be cleaned regularly. - Page 19 Other Useful Information (Cont.) Door reversal This appliance has the capability of opening the door from either the left or right side. If your set-up requires changing the opening direction, proceed as follow: IMPORTANT! You will need: • Make sure you have someone there to help you, do not try to do this on your own. •...
- Page 20 Other Useful Information (Cont.) Carefully lay down the refrigerator and remove the levelling legs, then unscrew the lower hinge using a Phillips head screwdriver (Fig. 13). Fig. 13 Unscrew and remove the bottom hinge pin, turn the bracket over and replace it (Fig.
- Page 21 Other Useful Information (Cont.) Reverse the direction of the middle hinge by 180 degrees, then transfer it to the proper position on the left. Affix the middle hinge pin in the upper hole of the lower door, then tighten the screws (Fig. 16). Unscrew the right middle stopper with metal block from the bottom of the upper door (Fig.
- Page 22 Our after sales support centre stocks spare parts for the appliance. To purchase a part, contact the centre at tempo.org/support or on 1300 886 649. Technical specifications Model HV-RTMWD332 Rated voltage, frequency and current 220 – 240 V~ Rated frequency...
- Page 23 Other Useful Information (Cont.) Responsible disposal At the end of its working life, do not throw this appliance out with your household waste. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling and recovery of the refrigerant and blowing agent.
- Page 24 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
