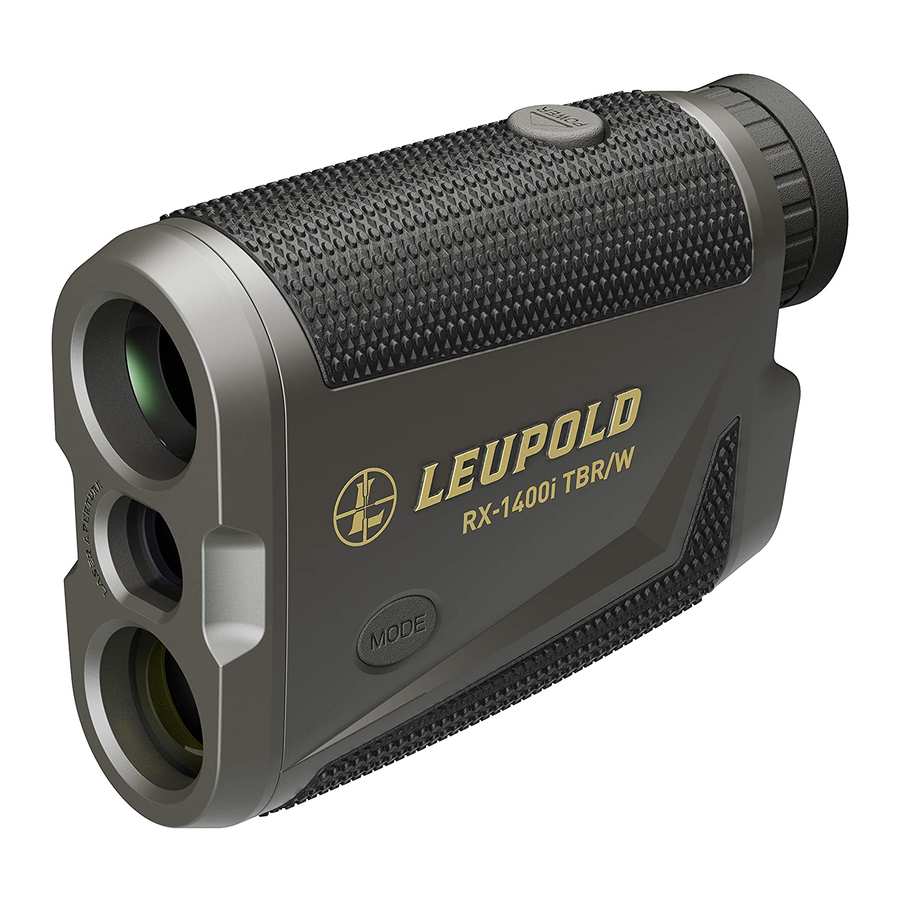

Leupold RX Quick Reference Card

RX Quick Reference Card
™

Basic Operations

Press "Power" to acquire a target.
Press "Mode" to navigate through the

Quick Set Rotary Menu

clockwise.
™
Press "Power" (RX -I and RX -II) or
™ ™
"Set" (RX -III and RX -IV) to toggle
™ ™
Quick Set Rotary Menu selections.
To toggle Clear Field on and off – hold the
™
"Power" button, then press the "Mode" button.
Quick Set Rotary Menu
™
To activate Quick Set Rotary Menu – press "Mode" (holding the
Mode button will display all function options).
Advance through Quick Set Rotary Menu by pressing "Mode." To
toggle functions on or off press "Power" (RX-I and RX-II) or "Set"
(RX-III and RX-IV).
True Ballistic Range (TBR )
™ ™
Available on the RX-II, RX-III, and RX-IV models.
For Bow – select BOW function by toggling on BOW. Do not turn on
TBR as this will activate rifle cartridge settings. Advance through the
Quick Set Rotary Menu to select ballistic groups A, B, or C.
For Rifle – select TBR function, and select HOLD, MOA or BAS. HOLD
displays inches or centimeters of holdover, MOA displays minute of
angle adjustment, and BAS displays equivalent horizontal range.
Press "Mode" to advance the Quick Set Rotary Menu to the ballistic
settings and choose A, B, C, AB, AC, BC, or ABC.
