Homelegance 1570GYF/GY-3 Assembly Instruction

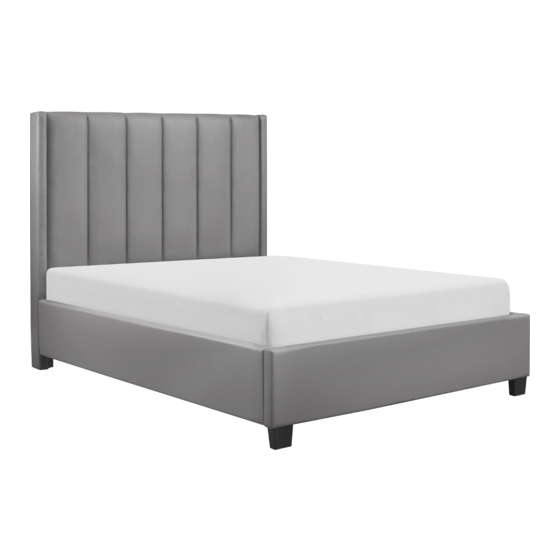

Assembly Completed
PART LIST
1 HEADBOARD X 1PC
4 SIDE RAIL
RSF X 1PC
6 CENTER SLAT SUPPORT X 1PC
HARDWARE SET
A X 1 B
ALLEN KEY M6x60mm
*** Above hardware are packed in 1570GY / GYF - 3
MADE IN MALAYSIA
ITEM NO : 1570GYF / GY -3
QUEEN FOOTBOARD / FULL FOOTBOARD / QUEEN SIDE RAILS / FULL SIDE RAILS /
BUN FOOTS / SUPPORT LEGS / CENTER SUPPORT / SLATS
Thank you for purchasing this product. Please take time to read and follow the instructions below.
Check that you have all parts and hardware before assembly. Parts apparently missing are often
found in the packing materials. If you do not have all the parts listed, hav
us and they will be sent to you immediately.
It is recommended to install protective pads under all legs and supports to avoid damage or
scratches when placing furniture on a wood floor or otherhard surface, and to limit indentation
and prevent discoloration if placing on carpet
2 FOOTBOARD X 1PC
7 FULL SLAT X 10PCS / QUEEN SLAT X 10PCS
X 8 C X 4 D
M6x30mm
LSF X 1PC
X 8 E X 4
19mm FLAT CSK SCREW
M4x45mm
WASHER
e your dealer contact
3 BUN FOOT X 2PCS
5
SLAT SUPPORT LEG X 4PCS
F X 4 G
CSK SCREW
LEVELER M4x25mm
X 20
PAGE 1 OF 2
