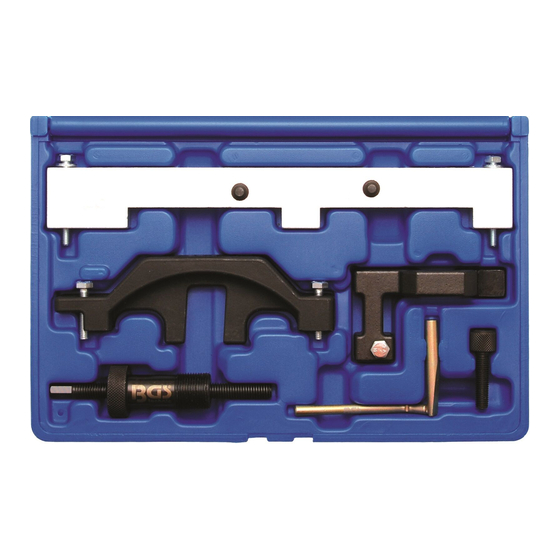

Engine Timing Tool Set BMW N40 / N45
1
4

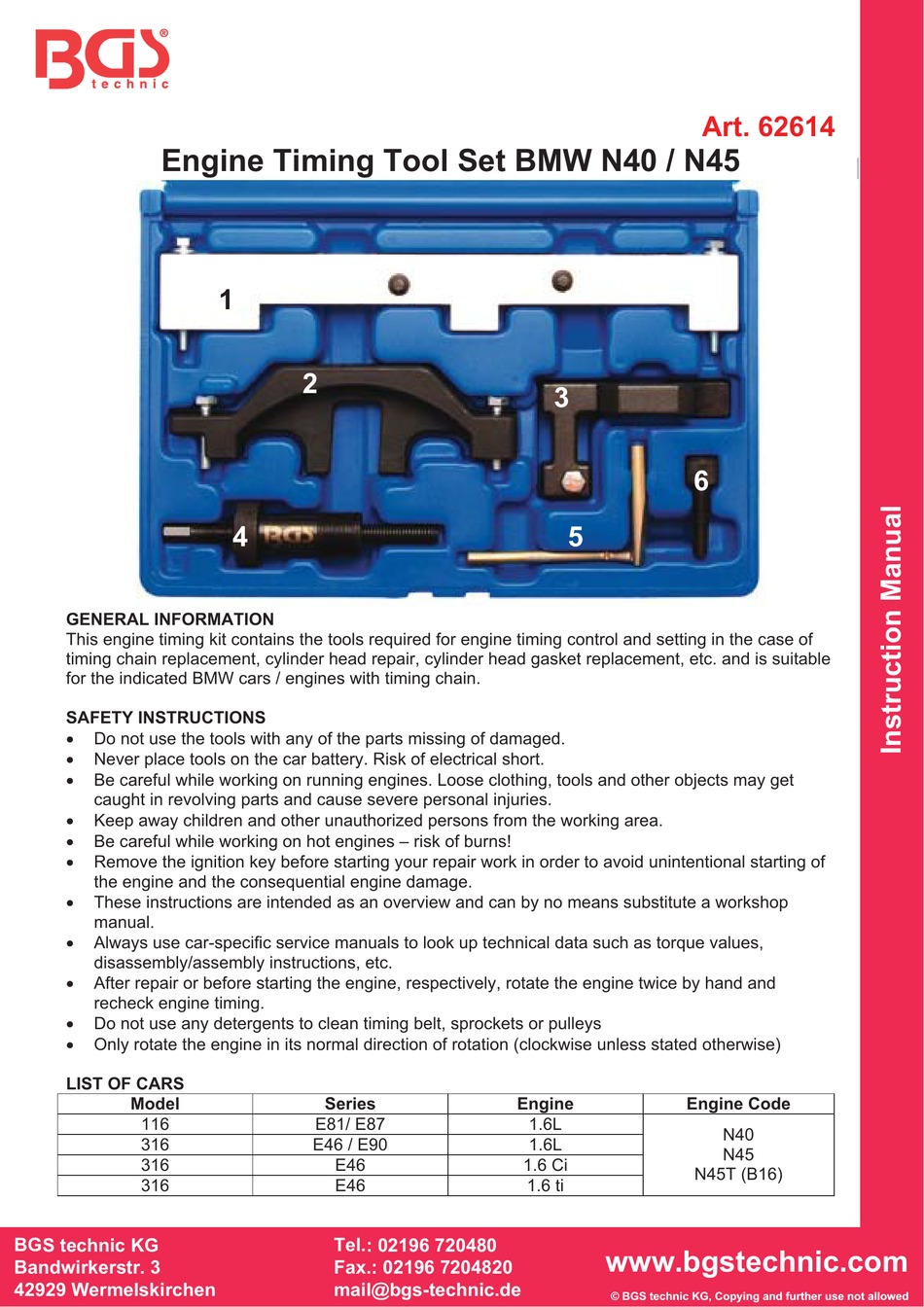

GENERAL INFORMATION

This engine timing kit contains the tools required for engine timing control and setting in the case of
timing chain replacement, cylinder head repair, cylinder head gasket replacement, etc. and is suitable
for the indicated BMW cars / engines with timing chain.

SAFETY INSTRUCTIONS

x
Do not use the tools with any of the parts missing of damaged.
x
Never place tools on the car battery. Risk of electrical short.
x
Be careful while working on running engines. Loose clothing, tools and other objects may get
caught in revolving parts and cause severe personal injuries.
x
Keep away children and other unauthorized persons from the working area.
x
Be careful while working on hot engines – risk of burns!
x
Remove the ignition key before starting your repair work in order to avoid unintentional starting of
the engine and the consequential engine damage.
x
These instructions are intended as an overview and can by no means substitute a workshop
manual.
x
Always use car-specific service manuals to look up technical data such as torque values,
disassembly/assembly instructions, etc.
x
After repair or before starting the engine, respectively, rotate the engine twice by hand and
recheck engine timing.
x
Do not use any detergents to clean timing belt, sprockets or pulleys
x
Only rotate the engine in its normal direction of rotation (clockwise unless stated otherwise)

LIST OF CARS
