Topdon Phoenix Plus User Manual page 29

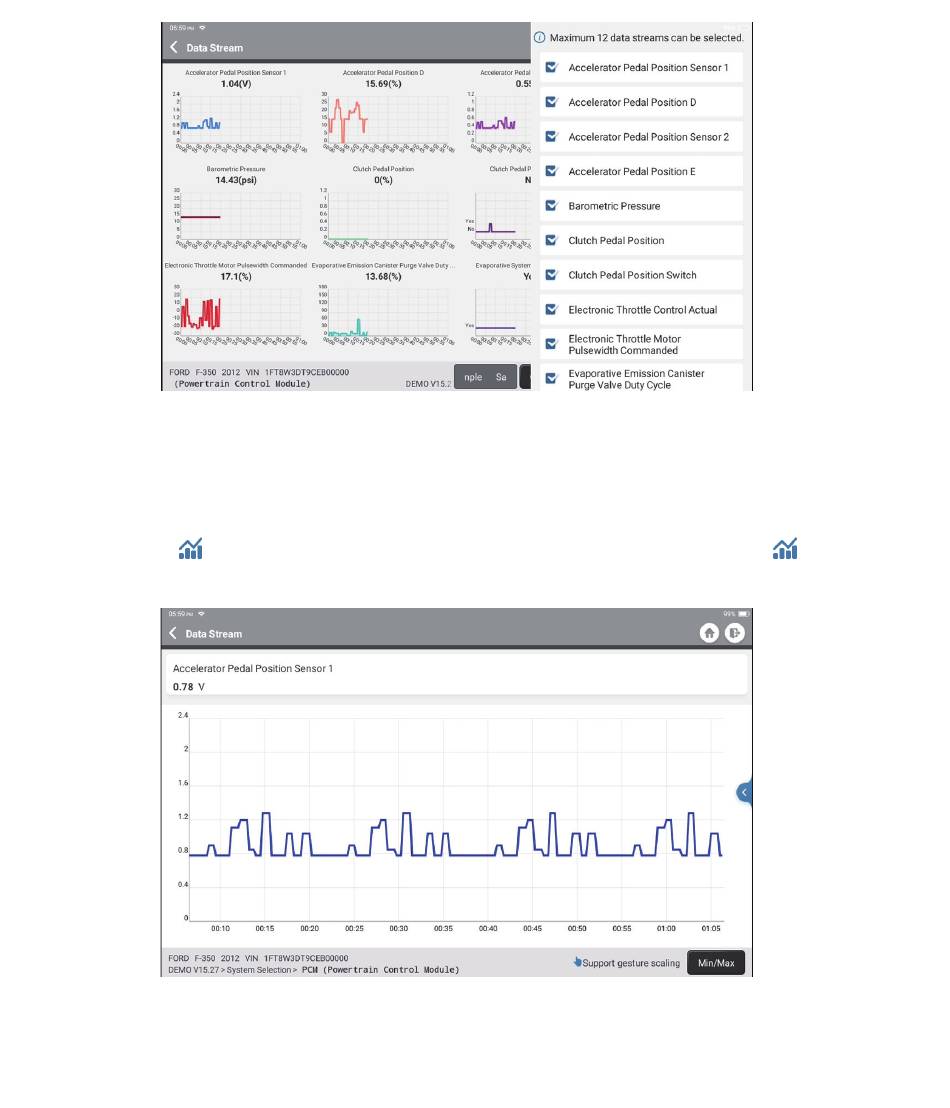

You can select specific data stream options to be viewed on the left.
Note: A maximum of 12 data streams can be displayed in this module.
Report: To save the number of current data streams.
•
Record: To record the diagnostic data for further analysis.
•
•
The following page will appear:
Tap "Min/Max" to define the maximum/minimum value. Once the value goes
beyond the specified value, the data will be shown in red.
Tap "<" on the right side of the screen. The following page will appear:
26
: To view single data steam displayed in wave patterns. Tap " ".
