This chain saw is designed especially for tree service by a trained
operator.
Read the instructions carefully and follow the rules for safe
operation.
Failure to do so could result in serious injury.
ECHO, INCORPORATED
400 Oakwood Road, Lake Zurich, Illinois 60047-1564
Phone : 847-540-8400
Printed in Japan

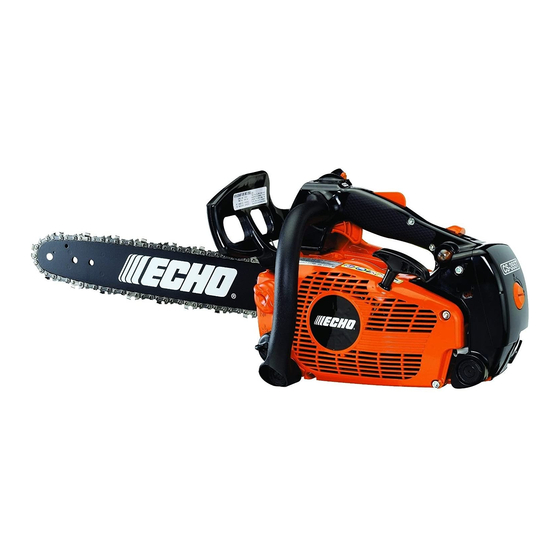

OPERATOR'S MANUAL
WARNING
CHAIN SAW
CS-355T
X750 332-350 2
   1712F 0867 ES
1710MJ 0723 ES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-355T and is the answer not in the manual?

Questions and answers

Summary of Contents for Echo CS-355T

  • Page 1 OPERATOR'S MANUAL CHAIN SAW CS-355T WARNING This chain saw is designed especially for tree service by a trained operator. Read the instructions carefully and follow the rules for safe operation. Failure to do so could result in serious injury. ECHO, INCORPORATED...
  • Page 2 WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Copyright © 2017 All Rights Reserved.
  • Page 3: Rules For Safe Operation

    The Kick Guard device is not installed on the guide bar when you purchase your 3. Make sure that the area in which you ECHO chain saw. are cutting is free from obstructions. ® The Kick Guard can be used in a majority...
  • Page 4 9. Carry the chain saw with the engine SAE Standard J335 are standard stopped, the guide bar and saw chain on ECHO chain saws to reduce the to the rear, and the muffl er away from possibility of forest fi res.
  • Page 5: Table Of Contents

    The enclosed message provides information CAUTION necessary for the protection of the unit. The safety alert symbol accompanied by the word “CAUTION” calls attention to an act or condition which may lead to minor or moderate personal injury if not avoided. CS-355T...
  • Page 6 PARTS” section will help you locate them. Make sure the decal is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. CS-355T...
  • Page 7: Packing List

    The ECHO product you purchased has been After opening the carton, check for damage. factory pre-assembled for your convenience. Immediately notify your retailer or ECHO dealer of Due to packaging restrictions, guide bar and saw damaged or missing parts. chain installation and other assembly may be Use the packing list to check for missing parts.
  • Page 8: Nomenclature Of Parts

    NOMENCLATURE OF PARTS X505-002310 X505-009430 Part Number X505-002310 Part Number X505-009430 * If a decal cannot be read, a new one can be ordered from your ECHO dealer. CS-355T...
  • Page 9 10. Guide bar - The part that supports and guides techniques and use of all recommended the saw chain. safety equipment. 11. Saw chain - Chain, serving as a cutting tool. 12. Bar tip guard - Anti-kickback device attached on the bar nose. CS-355T...
  • Page 10: Operator Safety

    If this guideline is not followed, hearing loss can numbness in the fi ngers. occur. The following precautions are strongly ECHO recommends wearing hearing protection recommended because the minimum exposure at all times. which might trigger the ailment is unknown.
  • Page 11: Correct Use Of Chain Brake

    ECHO chain brakes have been designed and Reduced radius belongs on top tested to comply with international safety standards as follows.
  • Page 12: Preparation For Use

    1. Remove spark plug lead. (See page 26) 2. Remove the clutch cover nuts and remove clutch cover. 3. Remove bar and saw chain if necessary. See “Maintenance and Care” section for guide bar / saw chain maintenance procedures. CS-355T...
  • Page 13 5. Pull the chain around the bar by hand. Loosen the adjustment if you feel tight spots. 6. When chain is properly tensioned, tighten clutch cover nuts securely - 20 to 23 N·m (175 to 200 in. lb.). 7. Keep chain properly tensioned at all times. CS-355T...
  • Page 14: Fuel And Lubricant

    IMPORTANT Echo brand 2-stroke oils meet these standards. • Echo brand 2-stroke oils may be mixed at 50:1 Engine problems due to inadequate lubrication ratio for application in all Echo engines sold in caused by failure to use an ISO-L-EGD (ISO/CD the past regardless of ratio specifi...
  • Page 15 • Do not use used or reclaimed oil to avoid various oiler problems. • Use ECHO bar and chain oil. • Use bar and chain oil of the following grades: SAE No. 30 ..in summer SAE No. 10 ..in winter or when cutting...
  • Page 16: Emission Data

    (This is an example only, information on THIS ENGINE MEETS * * * * U.S. EPA EXH/EVP & CALIFORNIA EXH/EVP EMISSION REGULATIONS FOR S.O.R.E. REFER TO OWNER’S MANUAL FOR label varies by engine family). MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS. CS-355T...
  • Page 17: Operation

    (Chain brake unlocked position) • Never use throttle latch for cutting. Starter handle • Use the chain brake only in starting or in emergencies. Unlock chain brake CS-355T...
  • Page 18 • Choke may be used if necessary, but after fi rst Unlock chain brake fi ring sound, pull throttle trigger to release choke. • After starting the engine, pull front hand guard towards the operator immediately. (Chain brake unlocked position) CS-355T...
  • Page 19 If engine does not stop, move the control lever to “Cold Start” position to stop engine. Throttle trigger Return the unit to your authorized ECHO dealer to check and repair stop switch before starting the engine again. CHECKING CHAIN TENSION •...
  • Page 20: Cutting Instruction

    CUTTING INSTRUCTION GENERAL CAUTION • Read the ECHO “CHAIN SAW SAFETY MANUAL” included with your chain saw for additional cutting and safety instructions. • Wear suitable hearing protection such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises.
  • Page 21 5 cm (2 in.) will act as a hinge Second cut when the tree falls, guiding it in the desired direction. One-third tree diameter When the tree starts to fall, kill the engine, place the saw on the ground and make your retreat quickly. CS-355T...
  • Page 22 • The chain saw industry and government agencies have attempted to prescribe various safety devices, but the best protection is to avoid kickback. • Comply with the safety precautions as listed in this Manual and Safety Manual. CS-355T...
  • Page 23 When the brake lever trips, the chain should stop. Immediately release the throttle trigger. WARNING If the chain does not stop immediately, return the saw to your authorized ECHO dealer for Chain brake unlock repair. When the lever is fully pulled toward the operator, brake is unlocked.
  • Page 24 4. The impact should lock the chain brake. IMPORTANT When checking the operation of the automatic chain brake, use a soft surface substance like wood to provide the impact so the chain is not damaged. Rear handle should be gripped lightly with the right hand. CS-355T...
  • Page 25: Chain And Guide Bar Combination

    CHAIN AND GUIDE BAR COMBINATION The following combinations are recommended for model CS-355T. Guide bar Saw chain Length mm (in.) ECHO Part No. Pitch mm (in.) ECHO Part No. Links 12A0ES3745 91PXL45CQ 305 (12) 12A0ED3745 91PX45CQ 14A0ES3752 91PXL52CQ 356 (14) 9.53 (3/8)
  • Page 26: Maintenance And Care

    MAINTENANCE AND CARE Your ECHO chain saw is designed to provide many SKILL LEVELS hours of trouble free service. Regular scheduled Level 1 = Easy to do. Most required tools come maintenance will help your chain saw achieve that with unit.
  • Page 27 If a tachometer is available idle speed should be To maintain proper engine operation and emission set to 2800 r/min. compliance above 1100 feet ASL the carburetor may need to be adjusted by an authorized ECHO CAUTION service dealer. When starting, idling adjustment speed...
  • Page 28 Oil fi lter • If the fi lter is dirty, wash it in gasoline or replace • When the inside of the tank gets dirty, rinsing the tank out with gasoline can clean it. CS-355T...
  • Page 29 Adjusting screw When the screw touches stopper and stops, this position indicates maximum discharge volume. (13 mL/min at 7000 r/min) - Do not turn the adjusting screw beyond the maximum or minimum limit of volume adjustment. CS-355T...
  • Page 30: Setting The Saw Chain

    (5/32 in.) diameter and fl at fi le are used. • To keep correct position and correct angle, use Keep this angle ® the fi le holder (Sure Sharp 30° Push fi le as shown 90° Hold the fi le horizontally CS-355T...
  • Page 31 - If the saw chain becomes soiled with resin, for (0.025 in.) instance, clean it with kerosene and soak in it oil. NOTICE Parallel These angles are referred to as Oregon 91PXL or 91PX. To sharpen other follow chain manufacturer’s Depth gauge instruction. CS-355T...
  • Page 32: Troubleshooting

    • Fuel fi lter clogged • Clean or replace cranks carburetor carburetor • Fuel line clogged • Clean • Carburetor • Ask your ECHO dealer Fuel at No fuel at • Carburetor • Ask your ECHO dealer cylinder cylinder Muffl er wet with •...
  • Page 33: Storage After Use

    • Store in a dry area, free from dust. • For future reference, you should keep this Operator's Manual and the Safety Manual. • If this Operator's Manual or the Safety Manual has become illegible or is lost, please purchase a new one from your ECHO dealer. CS-355T...
  • Page 34: Technical Data

    Recoil starter Power transmission Automatic centrifugal clutch Fuel Mixture ratio 50 : 1 ratio with ECHO Power Blend X™ or ECHO Red Armor™, ISO-L- EGD (ISO/CD 13738) and JASO M345-FD two-stroke, air-cooled engine oil. Gasoline Use 89 octane unleaded. Do not use fuel containing methyl alcohol, more than 10 % ethyl alcohol or 15 % MTBE.
  • Page 35: Warranty Registration Sheet

    Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It’s FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifi...
  • Page 36 C67415001001 - C67415999999...
