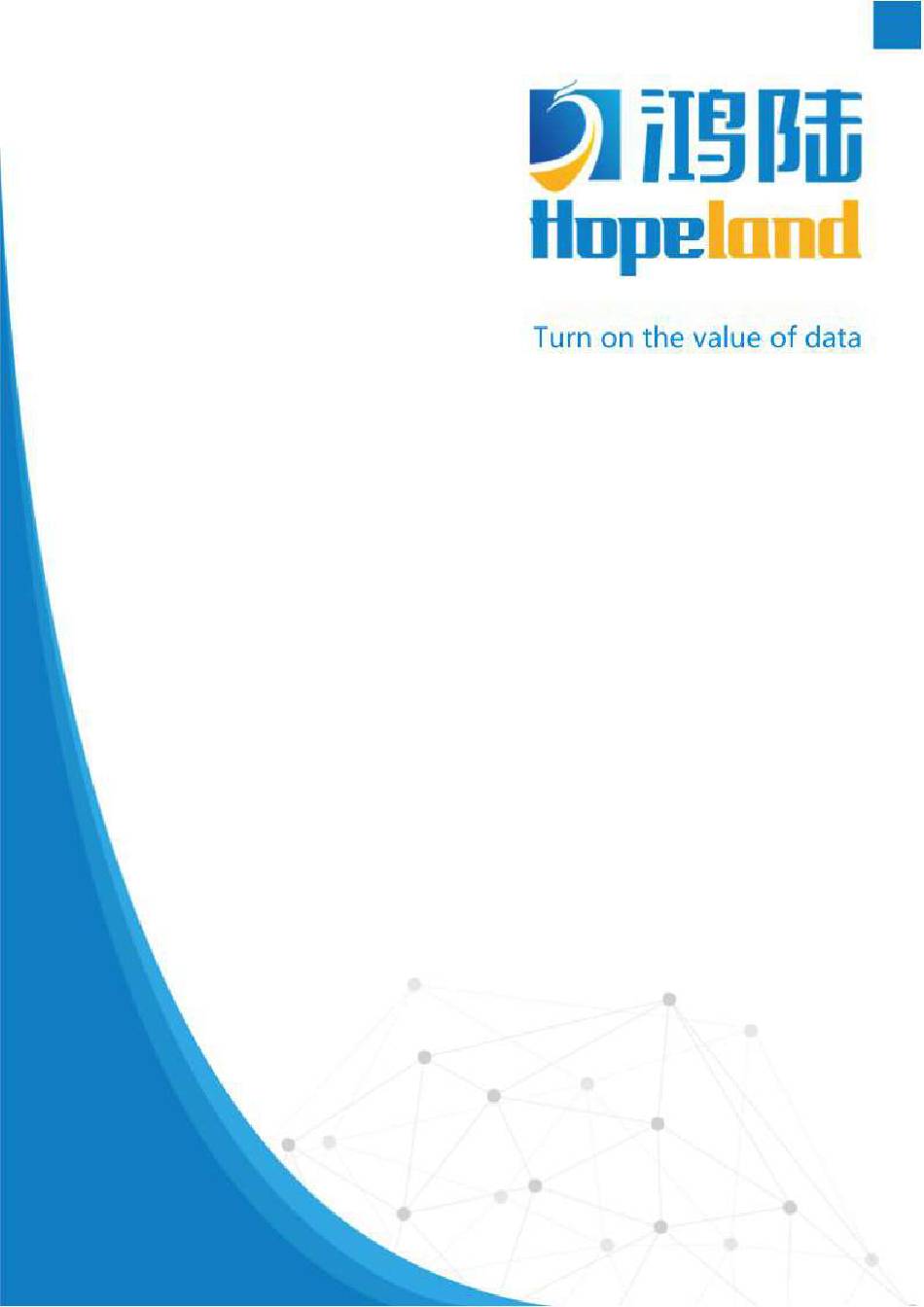

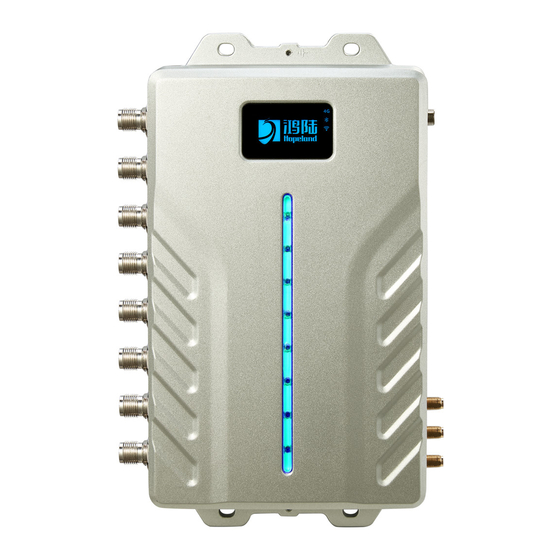

HH340/380
Shine 340/380
User Manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Shine HH340 and is the answer not in the manual?

Questions and answers

Related Manuals for Hopeland Shine HH340

Summary of Contents for Hopeland Shine HH340

  • Page 1 HH340/380 Shine 340/380 User Manual - 1 -...
  • Page 2 Welcome to become user of Hopeland RFID products. Thank you for choosing the multi-port reader Shine 340/380, hope to bring convenience for your work - 2 -...

  • Page 3: Table Of Contents

    CONTENTS 1.TECHNICAL SPECIFICATIONS ..........................- 5 - ................................- 5 - 1.1 F EATURES .................... - 5 - 1.2 M UNCTIONS ECHNICAL ERFORMANCE 1.2.1 Product Features ............................- 5 - 1.2.2 Typical Applications ..........................- 5 - 1.2.3 Specifications .............................. - 5 - 2.
  • Page 4 5. WEB PAGE OPERATION INSTRUCTIONS ......................- 25 - ..............................- 25 - 5.1 S YSTEM OGIN 5.1.1 Login ................................- 25 - 5.1.2 System Navigation ........................... - 25 - ..............................- 26 - 5.2 RFID S ETTINGS 5.2.1 Antenna Configuration ..........................- 26 - 5.2.2 Frequency Configuration ........................

  • Page 5: Technical Specifications

    Shine 340/380 User Manual 1.Technical Specifications 1.1 Features Shine HH340/380 is a high performance four-port/eight-port fixed UHF RFID reader with built-in high-performance Android OS 9. which has strong computing power, large storage capacity, rich interfaces, open development environment, and convenient extension of custom applications.
  • Page 6 Shine 340/380 User Manual Main Function Air interface protocol: ISO18000-6B/C EPC C1G2 all mandatory commands Built-in Android 9.0 operating system Rich communication interfaces (RJ-45, HDMI, RS-485, OTG, 4G, WiFi, Bluetooth, Wiegand interface) Adjustable RF output power POE power supply (optional) Working mode: fixed frequency/frequency hopping optional I/O interface: 4 optocoupler inputs, 4 relay outputs (drive capacity: DC 30V/ 2A, AC 125V/0.3A)
  • Page 7 Shine 340/380 User Manual BT: BT v2.1+EDR, 3.0+HS, v4.1+HS USB interface: support OTG, Type-C I/O interfaces: 4 relay outputs/4 optocoupler inputs RF interface: four/eight TNC antenna interfaces Power Parameters Equipment power supply: DC 9V～30V (60W); POE: IEEE802.3af/at/bt standard (optional) Working power consumption: 30W (output power 35dBm) Environmental Parameters Working temperature: -20℃～+70℃...

  • Page 8: Sketch Map

    Shine 340/380 User Manual 2. Sketch map 2.1 Physical construction Picture 2-1 Structure diagram of Shine 340/380 reader Shine 340/380 Reader Volume Parameter is: 241mm×132mm×36mm 2.2 Net Weight HH340：0.9kg HH380: 1kg 2.3 Interface Diagram 2.3.1 Power, Communication And I/O Interfaces Picture 2-3 Schematic diagram of reader power, communication and I/O interfaces Picture 2-3 is a schematic diagram of the reader and the power supply, communication and I/O interface panel.

  • Page 9: I/O Interface Definition

    Shine 340/380 User Manual Interface ID Interface Name Detailed Description Power supply interface DC, 10~30V, power capacity not less than 30W. 10/100M Ethernet interface, reader control Ethernet interface communication interface. POE:IEEE802.3af/at/bt standard (optional) HDMI output HDMI signal output 720P with audio. The USB TYPE-C interface can be connected to a USB interface computer and supports OTG.
  • Page 10 Shine 340/380 User Manual logic '1' indicates closed, default is open circuit. Relay 1# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open circuit, logic '1' indicates closed, default is open circuit. Relay 2# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open circuit, logic '1' indicates closed, default is open circuit.
  • Page 11 Shine 340/380 User Manual GPO Usage Example: Relay type GPO: GPO is equivalent to a switch, logic ‘0’ means open circuit, logic ‘1’ means closed, default is open circuit state. You can connect the alarm light, buzzer, etc. to the GPO for use.

  • Page 12: Coaxial Rf Feeder Cable (Optional)

    Shine 340/380 User Manual 2.3.3 Coaxial RF Feeder Cable (optional) Picture 2-6 schematic diagram of feeder line RF cable TNC(Reverse polarity, internal thread, inner pin) connector connect with reader antenna TNC connector, RF cable SMA connector connect with external circular polarization antenna’s SMA connector, cable maximum length is 5m, impedance 50Ω, insertion loss is less than 2dB, high-performance cable can also be selected, and the length can be increased appropriately, insertion loss is less than 2dB.

  • Page 13: Installation Instructions

    Shine 340/380 User Manual 3. Installation Instructions 3.1 Precautions To ensure the normal and stable operation of the device and your personal property and safety, please carefully read the following notes before install HH340/380 reader. 1. Firstly, check whether the power socket is connected to the ground, and to see whether the local power supply voltage is in accordance with the applicable voltage range of the reader;...

  • Page 14: Device Connection

    Shine 340/380 User Manual Before installing the reader, please check carefully whether the product is in good condition and the accessories are complete. If there is any parts missing or damage, please contact the supplier in time. 3.3 Device Connection 3.3.1 Connect Power Adapter Or PoE Switch a.Connect Power Adapter Plug the power cord into the AC power supply outlet and then plug the other end of the...

  • Page 15: Connect External Antenna And Rf Cable

    Shine 340/380 User Manual CAT 7 S/FTP √ √ √ CAT 7A S/FTP √ √ √ CAT 8.2 S/FTP √ √ √ 3.3.2 Connect External Antenna And RF Cable The reader built with four/eight TNC coaxial cable connectors for connecting external antennas, select low consumption RF cable, connectors should be tightened (Ensure to be waterproof when install outdoors);...

  • Page 16: Install Reader

    Shine 340/380 User Manual Open Lock Re-install the cover of the SIM card slot. 3.4 Install Reader The reading and writing range of the reader depends on the onsite application, the tilt angle of the antenna is adjusted to achieve the best reading and writing performance. 3.5 Acceptance The acceptance criteria are mainly given from two aspects: structure and performance.

  • Page 17: Android Os Demonstration Operation

    Shine 340/380 User Manual 4. Android OS Demonstration Operation 4.1 HDMI High-definition Display Output Interface HH340/380 is equipped with an HDMI high-definition display output interface. In workstation application scenarios, an external monitor can be connected to operate the reader, or software development on the reader 4.2 Display Reader Android OS to PC via Scrcpy Using Scrcpy on a PC to display Reader Android OS on a PC.You can download Scrcpy...

  • Page 18: Wifi Settings

    Shine 340/380 User Manual 1.After the reader is turned on, first connect the PC and the reader type C interface through the supplied USB cable 2.Open the folder of the Scrcpy software, double-click scrcpy.exe to execute the Scrcpy software 3.Operate the reader OS through the same screen interface 4.3 WiFi Settings Shine series readers have a built-in WiFi module.

  • Page 19: Bluetooth Settings

    Shine 340/380 User Manual 1. After the reader is powered on, connect the supplied WiFi/Bluetooth shared antenna to the reader’s WiFi/Bluetooth shared antenna interface 2. Enter the WiFi setting interface of the Android OS, select the WiFi hotspot to connect to, and remember the obtained ip address after connected, and then you can use this ip to connect to the reader through the demo software.
  • Page 20 Shine 340/380 User Manual use this Bluetooth serial port to communicate with the reader. 1. After the reader is powered on, connect the supplied WiFi/Bluetooth shared antenna to the reader’s WiFi/Bluetooth shared antenna interface 2. View the Bluetooth name of the reader through the Android OS 3.
  • Page 21 Shine 340/380 User Manual - 21 -...

  • Page 22: Mobile Network Settings

    Shine 340/380 User Manual 4.5 Mobile Network Settings Reader has built-in 4G function and supports global 4G frequency band.Reader Android OS is used to set the relevant parameters of the mobile network. 1. According to the content in chapter 3.3.4, install the mobile phone SIM card when the reader is turned off 2.
  • Page 23 Shine 340/380 User Manual Android demo, choose TCP as the connection method, the parameters are the IP address and port number of the reader. - 23 -...
  • Page 24 Shine 340/380 User Manual - 24 -...

  • Page 25: Web Page Operation Instructions

    Shine 340/380 User Manual 5. Web page Operation Instructions 5.1 System Login 5.1.1 Login It is recommended to use Google Chrome to log in. When logging in, please enter the URL of the reader in the address bar, such as: http://192.168.1.116:8080/. The login interface is shown in Figure 5.1.1.

  • Page 26: Rfid Settings

    Shine 340/380 User Manual Figure 5.1.2 5.2 RFID Settings The RFID setting menu includes antenna configuration, frequency configuration,baseband configuration and advanced baseband configuration. 5.2.1 Antenna Configuration Click RFID Settings-->Antenna Power under the left navigation to enter the antenna configuration page, as shown in Figure 5.2.1. On the antenna power page, you can check the antenna to be used and select the power for configuration.

  • Page 27: Frequency Configuration

    Shine 340/380 User Manual Figure 5.2.1 5.2.2 Frequency Configuration Click RFID Settings-->Frequency under the left navigation to enter the frequency configuration page, as shown in Figure 5.2.2. Frequency can set the working frequency band, frequency hopping mode and working frequency points of the device. When the Freq Hopping mode selects Auto, the frequency list cannot be selected.

  • Page 28: Advanced Baseband Settings

    Shine 340/380 User Manual Figure 5.2.3 5.2.4 Advanced Baseband Settings Click RFID Settings-->Advanced Baseband under the left navigation to enter the advanced baseband settings page, as shown in Figure 5.2.4. In the Advanced Baseband Settings page, antenna switching mode, dynamic Q algorithm, and special tag inventory can be configured.

  • Page 29: Reader Settings

    Shine 340/380 User Manual Figure 5.2.4 5.3 Reader Settings The reader settings contains Ethernet configuration, wireless network configuration, RS485 configuration and advanced network parameters. 5.3.1 Ethernet Configuration Click Reader Settings-->Ethernet under the left navigation to enter the Ethernet configuration page, which is shown in Figure 5.3.1. The Ethernet Configuration page allows you to view the current Ethernet connection status and configure the network parameters and DHCP mode for Ethernet.

  • Page 30: Wireless Network Configuration

    Shine 340/380 User Manual Figure 5.3.1 Note: The IP address here is the set value, not the actual value (the actual IP may be different after enabling DHCP) Note: Ethernet settings need to restart reader to take effect 5.3.2 Wireless Network Configuration Click Reader Settings-->WiFi under the left navigation to enter the wireless network configuration page, which is shown in Figure 5.3.2.

  • Page 31: Rs485 Configuration

    Shine 340/380 User Manual Figure 5.3.2 Note: The IP address here is the set value, not the actual value (the actual IP may be different after enabling DHCP) 5.3.3 RS485 Configuration Click Reader Settings-->RS485 under the left navigation to enter the RS485 configuration page, which is shown in Figure 5.3.3.

  • Page 32: Advanced Network Parameters

    Shine 340/380 User Manual Figure 5.3.3 Note: RS485 settings need to be restart reader to take effect 5.3.4 Advanced Network Parameters Click Reader Settings-->Network under the left navigation to enter the advanced network parameter setting page, which is shown in Figure 5.3.4. The advanced network parameters page allows you to set the heartbeat packet and TCP client/service mode for communication.

  • Page 33: Filter Settings

    Shine 340/380 User Manual Figure 5.4.1 Note: The correct firmware must be used to upgrade, otherwise the device will not function properly. 5.4.2 Filter Settings Click Advanced Settings-->Filter Settings under the left navigation to enter the filter settings page, which is shown in Figure 5.4.2. Filter settings for tag RSSI threshold filtering, read time filtering and regular expression filtering for tag EPC/TID.

  • Page 34: Task Settings

    Shine 340/380 User Manual Figure 5.4.2 5.4.3 Task Settings Click Advanced Settings-->Task Settings under the left navigation to enter the task settings page, which is shown in Figure 5.4.3. The task settings interface allows you to view the task status and control the enable/disable of the task.

  • Page 35: Offline Cache

    Shine 340/380 User Manual 5.4.3.1 Offline Cache The offline cache task is used to cache the read data into the database when the reader is disconnected during the tag reading process. After the host is reconnected, offline data for this period can be retrieved. 5.4.3.2 Whitelist The whitelist task is used to process tag events related to the tags in the whitelist.

  • Page 36: Httppost Upload

    Shine 340/380 User Manual Figure 5.4.3.5.1 5.4.3.6 HttpPost Upload The HttpPost upload task is to transmit the tag data in JSON format to the specified server URL. Parameters such as tag data fields and upload interval can be configured through the common parameter of the configuration interface, as shown in Figure 5.4.3.6.1;...

  • Page 37: Mqtt Upload

    Shine 340/380 User Manual Figure 5.4.3.6.1 Figure 5.4.3.6.2 5.4.3.7 MQTT Upload The MQTT upload task is to transmit the tag data to the specified MQTT server in JSON format. Parameters such as tag data fields and upload interval can be configured through the common parameter of the configuration interface, as shown in Figure 5.4.3.7.1;...

  • Page 38: Mysql Upload

    Shine 340/380 User Manual Figure 5.4.3.7.1 Figure 5.4.3.7.2 5.4.3.8 MySQL Upload The MySQL upload task is to write tag data into the specified MySQL database. Parameters such as tag data fields and upload interval can be configured through the common parameter of the configuration interface, as shown in Figure 5.4.3.8.1; server information can be configured through the specified parameter of the configuration interface, as shown in Figure 5.4.3.8.2.
  • Page 39 Shine 340/380 User Manual Create the same database name and table in the MySQL database, and create the table structure according to the sample SQL script. The order of the fields doesn't matter, as long as the data types of the fields are correct, as shown in Figure 5.4.3.8.3. After starting the reader to read tags, the reader can transmit the read tag data to the specified MySQL database, as shown in Figure 5.4.3.8.4.

  • Page 40: Mssql Upload

    Shine 340/380 User Manual Figure 5.4.3.8.3 Figure 5.4.3.8.4 5.4.3.9 MSSQL Upload The MSSQL upload task is to write tag data into the specified MSSQL database. Parameters such as tag data fields and upload interval can be configured through the common parameter of the configuration interface, as shown in Figure 5.4.3.9.1; server information can be configured through the specified parameter of the configuration interface, as shown in Figure 5.4.3.9.2.
  • Page 41 Shine 340/380 User Manual the reader to read tags, the reader can transmit the read tag data to the specified MS SQL database, as shown in Figure 5.4.3.9.4. Figure 5.4.3.9.1 Figure 5.4.3.9.2 - 41 -...
  • Page 42 Shine 340/380 User Manual Figure 5.4.3.9.3 Figure 5.4.3.9.4 - 42 -...

  • Page 43: Account Modify

    Shine 340/380 User Manual 5.4.4 Account Modify Click Advanced Setup-->Account Modify under the left navigation to enter the account modify page, as shown in Figure 5.4.4.1. Enter the old password and the new password, and click the "Submit" button to modify the password. Figure 5.4.4.1 5.5 Log Management The log management menu contains operation log and tag log.

  • Page 44: Tag Log

    Shine 340/380 User Manual Figure 5.5.1.1 5.5.2 Tag Log Click Log Management-->Tag Log under the left navigation to enter the tag log page, which is shown in Figure 5.5.2.1. The tag log is the tag data recorded by the local tag log task. The tag log includes timestamp, antenna, EPC, TID, user area, reserved area, reading times, RSSI, frequency, phase,etc.
  • Page 45 Shine 340/380 User Manual Tag Data Field Description Timestamp timestamp DateTime format: yyyy-MM-dd HH:mm:ss.SSS EPC data String format, minimum length 24 characters TID data String format, minimum length 24 characters User data userdata String format, the minimum length is determined according to the size of the user area Reserved data reserved...

  • Page 46: Common Failures

    Shine 340/380 User Manual 6. Common Failures 6.1 Daily Maintenance Daily maintenance of Shine 340/380 reader during use: Check whether the RF connector is tightened Check whether the screws fixing the reader and antenna are loose Check whether the outer shielding layer is disconnected at the RF cable connector Check whether the power cord of the reader is connected firmly 6.2 Common Failure Analysis And Solution Power supply system failure:：...

  • Page 47: Packaging Accessories And Storage

    Shine 340/380 User Manual 7. Packaging Accessories And Storage 7.1 Package Figure 6-1 Carton box size Carton box size: 252mm*271.5mm*53.5mm (inner size) 7.2 Accessories In order to facilitate future storage and transportation, after unpacking the Shine 340/380 reader, properly store the box and packaging materials. In addition to the reader, the box also includes the accessories required for the use of the product.

  • Page 48: Storage Requirements

    Shine 340/380 User Manual Mountingscrews M4*28 nickel plated Included warranty card Included Certificateofapproval Included 10P GPIO connector Included Foot pad Included 4G antenna Included Bluetooth WIFI antenna Included 7.3 Storage Requirements Shine 340/380 readershouldbestoredinbelowconditions:  Environmental temperature: -40℃～+85℃  Relative humidity: 5% RH～90%RH - 48 -...

  • Page 49: After-Sale Service

    Since our aim is to continuously improve our products forbetter user experience, we maymodify the product characteristics, composition and design ofcircuitswithoutgivennotifications.Thustherealproductmaybenotinaccordance withthismanual.Generally,wewillprovidetimelyamendmentstothismanual.Ifits notprovidedtimely,pleaseconsultourservicedepartment. ShenzhenHopelandTechnologiesCo.,Ltd. Guarantee card of Shenzhen Hopeland Technologies Co., Ltd Product Name Model No. Product Code Level Descriptionof troubles User’s name...
