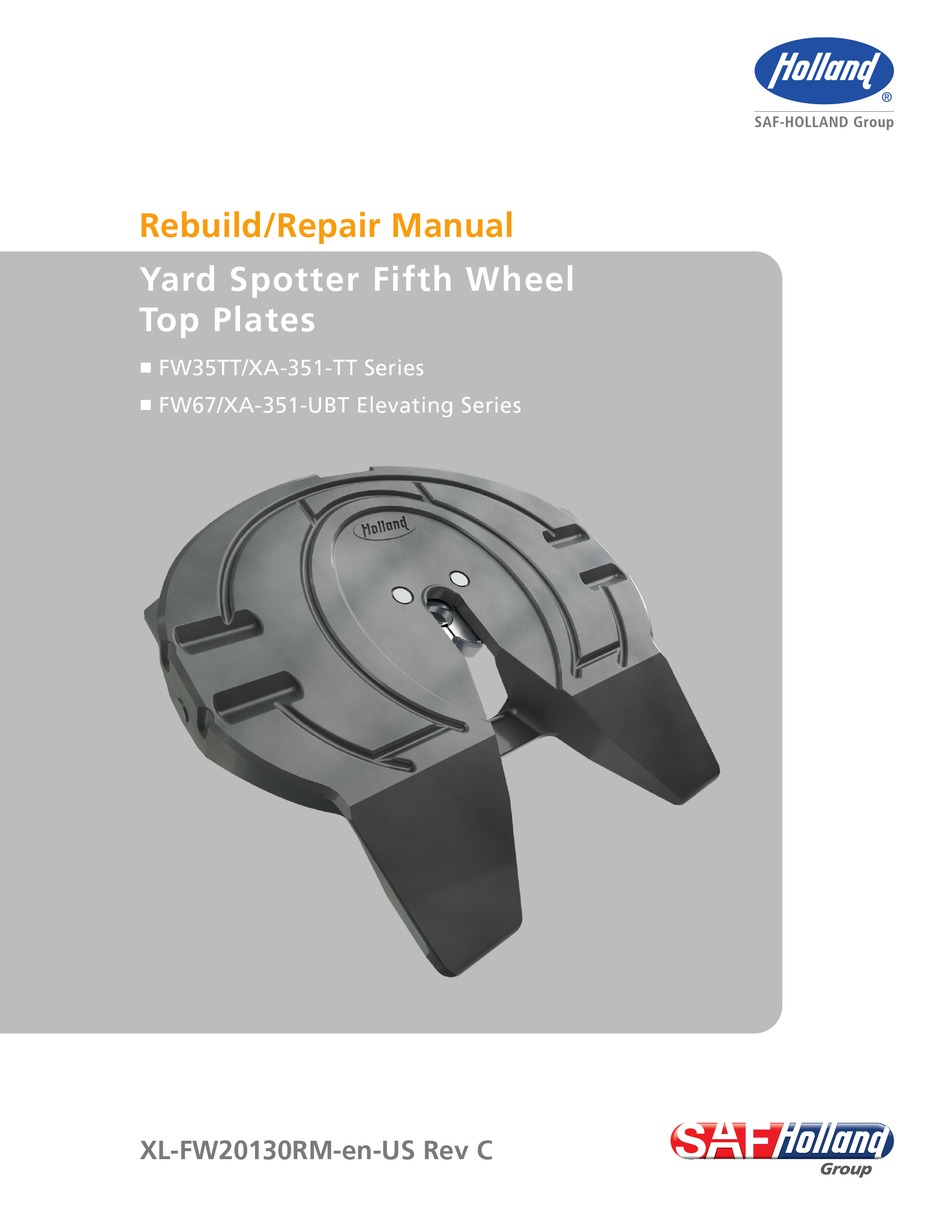

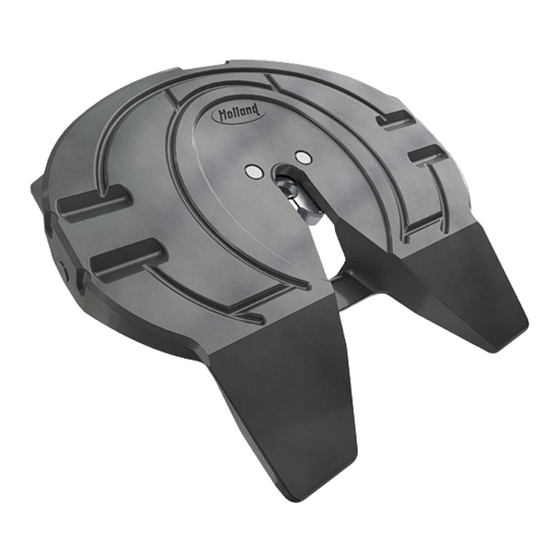

- Page 1 Rebuild/Repair Manual Yard Spotter Fifth Wheel Top Plates FW35TT/XA-351-TT Series FW67/XA-351-UBT Elevating Series XL-FW20130RM-en-US Rev C...
-
Page 3: Table Of Contents
XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 4: Section 1 - General Safety Instructions
For proper installation procedures, refer to Installation Manual XL-FW10008BM-en-US available on the internet at www.safholland.us. XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 5: Section 2 - Model Identification
Figure 3 Figure 4 FW35TT/XA-351-TT FW67/XA-351-UBT BRACKET PIN NUTS WELDED ONTO CASTING XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 6: Exploded View
RK-12197 Pocket Inserts XA-351-TT Series Only Two (2) of each required XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 7: Parts List
Kingpin Lock Tester TF-TLN-5001 Note: Kits available from a local SAF-HOLLAND Distributor. XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 8: Section 3 - Top Plate Removal
MUST could result in death or serious injury. be replaced. XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 9: Section 4 - Yoke Installation
SHAFT INTO YOKE, ALIGNING HOLES YOKE SHAFT TIGHTEN ALTERNATELY BACK AND FORTH XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 10: Section 5 - Lock Installation
LOCK JAWS LOCK PINS INSTALLED FROM UNDERNEATH XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 11: Section 6 - Cam Plate Installation
M12 x 1.75 LOCK CAM PLATE NUT SECURED UNDER LUG HOLE XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. - Page 12 ROLLER BOLT MUST YOKE YOKE BOTTOM OUT IN SHAFT YOKE SHAFT XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
-
Page 13: Section 7 - Secondary Lock Installation
SPRING, THEN DRIVE REST AGAINST THE PIN THRU, FLUSH TO CASTING CASTING LUG XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 14: Section 8 - Cam Spring Installation
HEAD OF PIN NEAREST FIFTH WHEEL TOP TOP PLATE SURFACE PLATE SURFACE XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 15: Section 9 - Air Cylinder Installation
Complete installation of the air cylinder by tightening the first lock nut. AIR FITTING PORT FACING CAM SPRINGS XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 16: Section 10 - Upshock Cushions, Pocket Inserts And Brackets Inspection
REPLACE UPSHOCK CUSHIONS IF MORE THAN 1-1/2" (38.1 mm) ILS-STYLE CUSHION XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. - Page 17 REPLACE BRACKETS IF 3/8" (9.5 mm) OR LESS (EITHER SIDE) ILS-STYLE BRACKET XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
-
Page 18: Section 11 - Top Plate Installation
Reattach air lines and lube lines as necessary. CLINCH PIN BRACKET XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 19: Section 12 - Operation Check
XL-FW20130RM-en-US Rev C · 2022-01-03 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. - Page 20 SAF-HOLLAND Original Parts are tested and designed to provide maximum performance and durability. Will-fits, look-alikes or, worse yet, counterfeit parts will only limit the performance potential and could possibly void SAF-HOLLAND’s warranty. Always be sure to spec SAF-HOLLAND Original Parts when servicing your SAF-HOLLAND product.
