Savant ITP-E8000V2 Quick Reference Manual

Savant® Touch 8 Inch Control Screen [ITP-E8000V2x] Quick Reference Guide
Box Contents
(1) Touch 8 Inch Control Screen (ITP-E8000V2x-xx)
(1) Installation Kit (075-0203-xx0)
(1) Installation Template (009-1561-xx)
(1) Mounting Bracket (For standard 2-gang electrical box)
(4) Mounting Bracket Screws (6-32 x 1 in.)
(1) Regulatory Statement (009-1950-xx)
Specifications
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weights
Device
Height 5.84 in (14.84 cm)
Width 8.80 in (22.35 cm)
Depth 1.43 in (3.63 cm)
w/ Mounting Bracket
2.05 in (5.21 cm)
Weight 0.95 lbs (0.44 kg)
Power
Power over 802.3af compliant
Ethernet (PoE)
Power Average: 5.14 W
Consumption Maximum: 6.76 W
Compliance
Safety and FCC Part 15
Emissions
RoHS Compliant
Supported Release
Savant OS da Vinci 9.4.5, 10.0.1, and higher
Supported Orientations
Landscape – The ITP touch panel must be installed with the proximity
sensor position on the right hand side.
Portrait – The ITP touch panel must be installed with the proximity
sensor at the top.
Network Requirements
For more information, see the Savant Device Networking Guidelines
on the Savant Customer Community.
Touch 8 in Control Screen V2 QRG | 009-2065-00
Copyright © Savant Systems, Inc | 220711
Shipping
11.50 in (29.21 cm)
11.75 in (29.84 cm)
3.00 in (7.62 cm)
1.85 lbs (0.83 kg)
CE UKCA WEEE

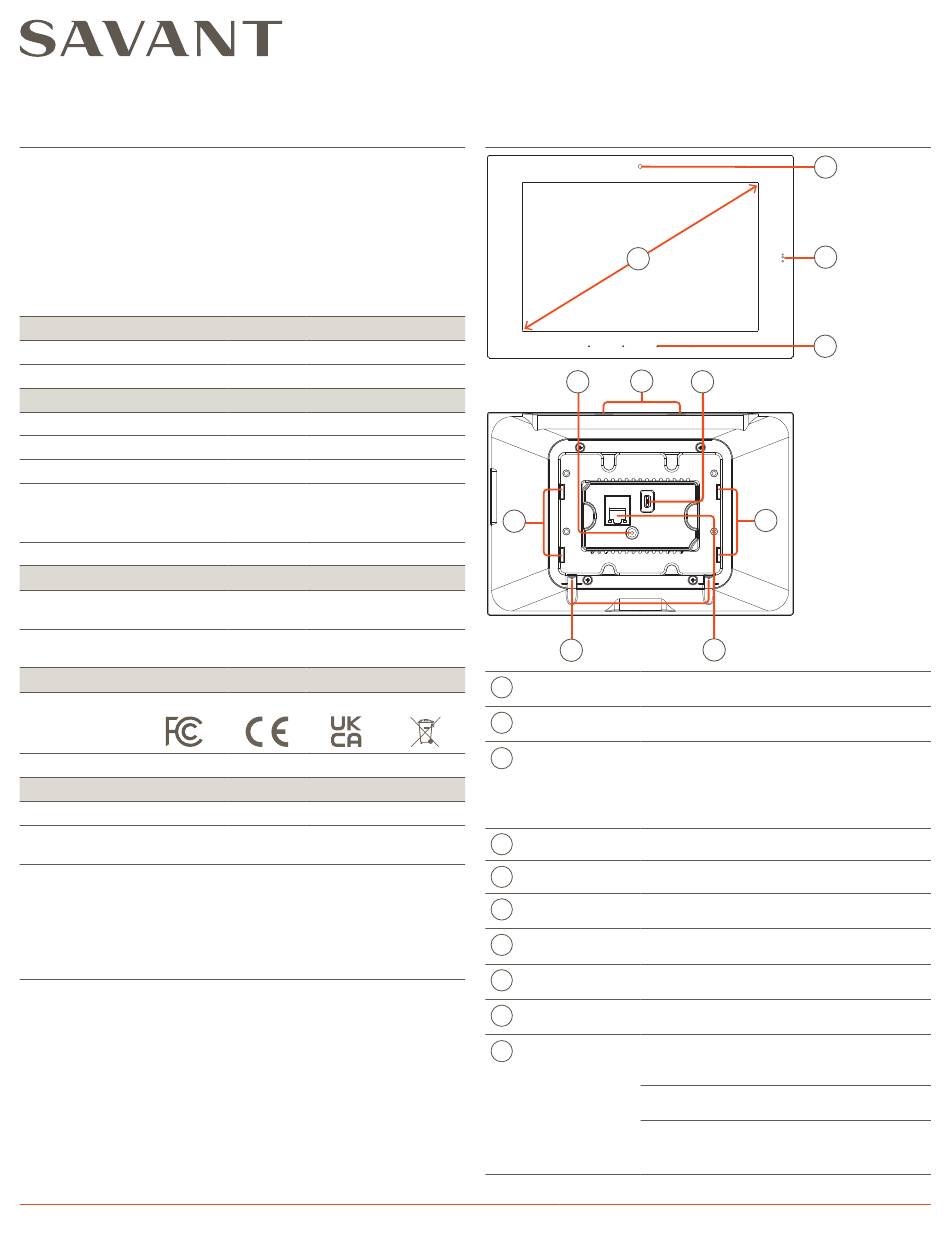

Device
E
H
I
Camera
A
Display
B
Proximity Sensor
C
Microphones
D
Micro USB
E
Embedded
F
Speaker
Alternate
G
Power Input
Mounting Slots
H
Captive Screws
I
Ethernet
J
1 of 2
B
F
G
H
J
For video input. (Optional)
Reserved for future use.
Screen Size: 8.0 in (20.30 cm)
Resolution: 1280 x 800 | 16.7 M colors
Sensor (proximity) mounted in front panel
will wake up the display when movement is
detected in front of display.
Sensor operating at 940 nm, affective range
about 3.28 ft (1 m).
For voice input.
Not Used.
For audio output.
Not Used.
Align the mounting frame hooks and press
down to seat.
Used to secure touch panel to bracket after
mounting frame hooks have been seated.
8-pin RJ-45 port:
10/100 Base-T auto-negotiation port with
link and activity LEDs.
Orange - Link is established.
Link LED
Off – No link established
Link Green Blinking - Indicates
Activity data activity.
LED Off – No Activity
45 Perseverance Way, Hyannis, MA 02601
Savant.com
A
C
D
| 508.683.2500
