Document Reader AT9000 MK2 User Guide

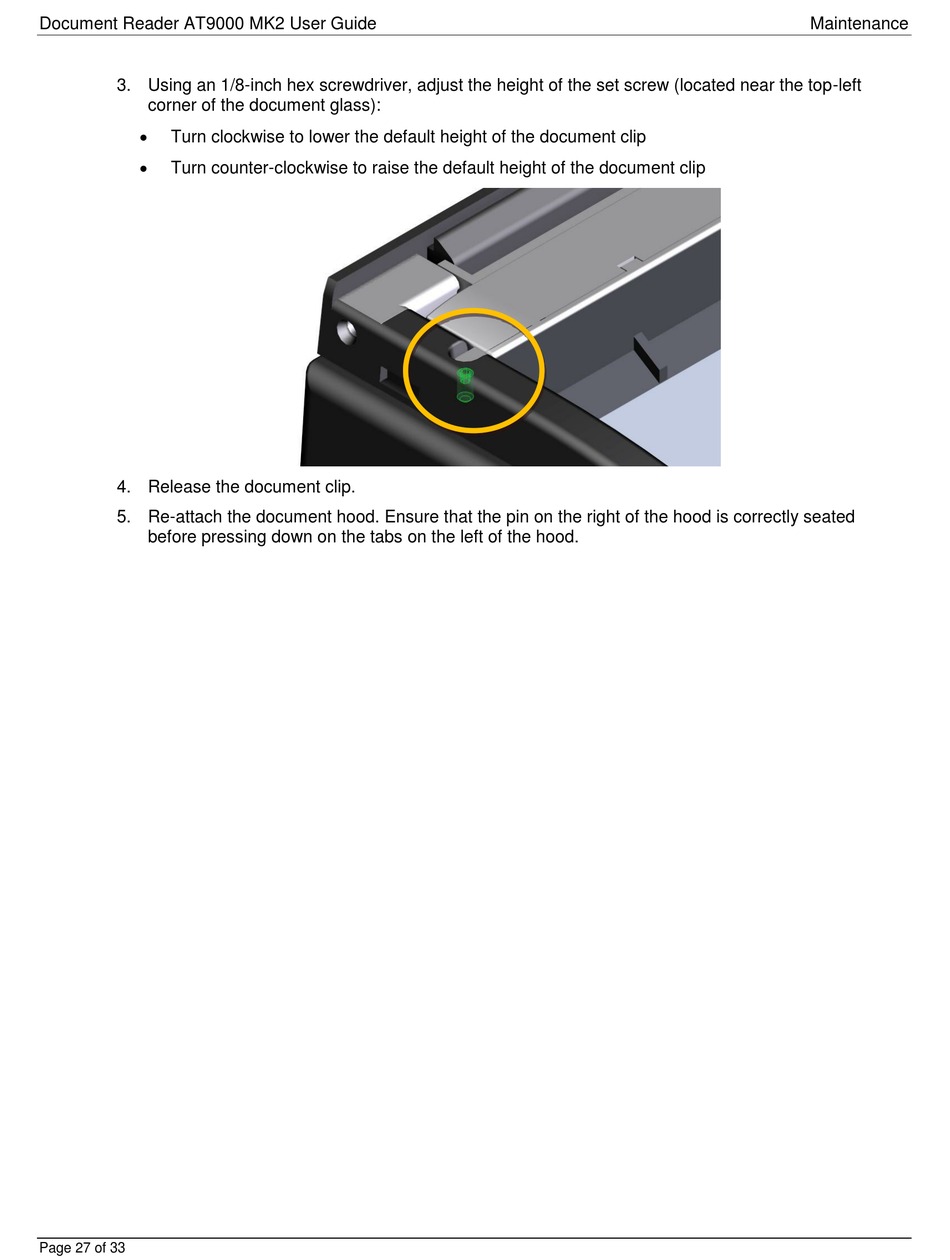

3. Using an 1/8-inch hex screwdriver, adjust the height of the set screw (located near the top-left
corner of the document glass):

Turn clockwise to lower the default height of the document clip

Turn counter-clockwise to raise the default height of the document clip
4. Release the document clip.
5. Re-attach the document hood. Ensure that the pin on the right of the hood is correctly seated
before pressing down on the tabs on the left of the hood.
Page 27 of 33
Maintenance
