Wiring Information
Wire Colour
Function
Red
Power
Black
Ground
Yellow
Pattern Selection
Surface Mount: 2 Holes @ 3
Light should be fused with 7.5 Amp Fuse
Pattern Selection
Tap yellow wire (Pattern Selection) to ground momentarily to change patterns (see Flash Patterns)
NOTE: This unit may not be factory-set to Flash Pattern #1
Flash Patterns
NO.
1
Single Flash
2
Double Flash
3
Triple Flash
4
Quad Flash
5
Rotating @ 126 RPM
6
Rotating @ 96 RPM

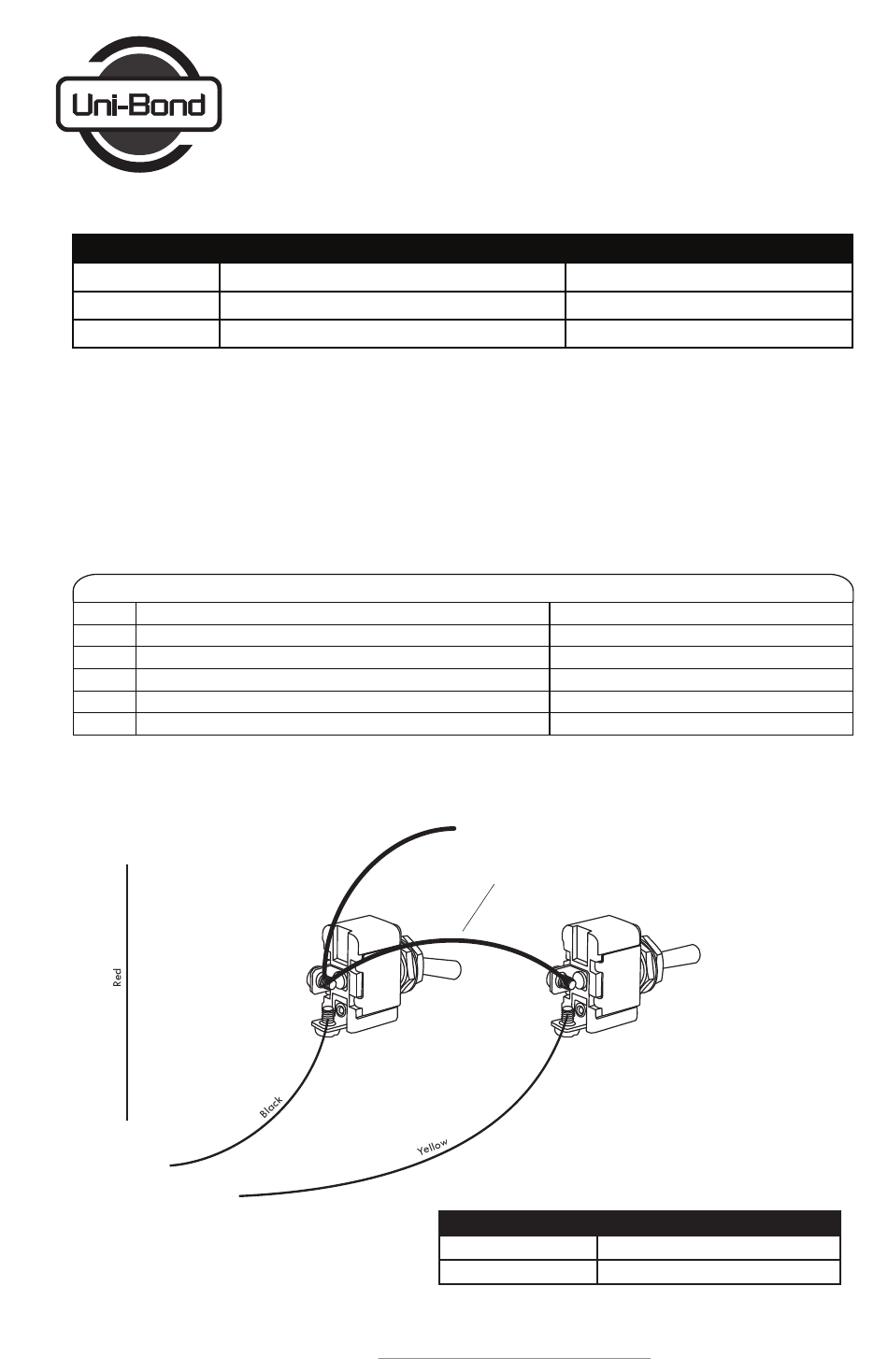

Suggested Switch Connection
Battery Positive
Power
Ground
Pattern Selection
INSTALLATION MANUAL
/
" centres or 7" centres
1
2
(ATM075 sold
Flash Patterns
(switches sold separately)
Switch #1
ST100
(ON/OFF)
NOTE: Disassembling lamp or cutting the wires voids the warranty
Visit us at www.unibondlighting.com

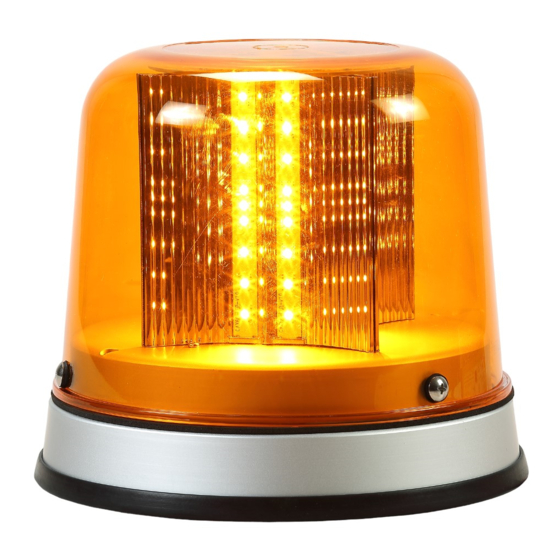

E-890A & E-890B
For 12V to 36V DC Applications
Connect To
+12/24/36 VDC (Power)
- (Ground)
- (Ground)
separately)
Class 1 (E-890A) / Class 2 (E-890B)
From Vehicle Ground
Jumper Wires
Operation:
Switch #
Lamp Function
Switch 1
Power
Switch 2
Pattern Selection
SAE
Switch #2
ST108
(OFF-Momentary ON)
Last Updated: 04/04/2022
