Uni-bond E-556 Series Installation Manual

Flash Patterns

#1 - Single Flash
#2 - Double Flash
#3 - Triple Flash

This unit may not be factory-set to Flash Pattern #1

Surface Mount Model: E-556A

Wire Colour Function
Red Power
Black Ground
Blue Pattern Selection
5 Amp Fuses (sold seperately) Wire from Power Source should be fused

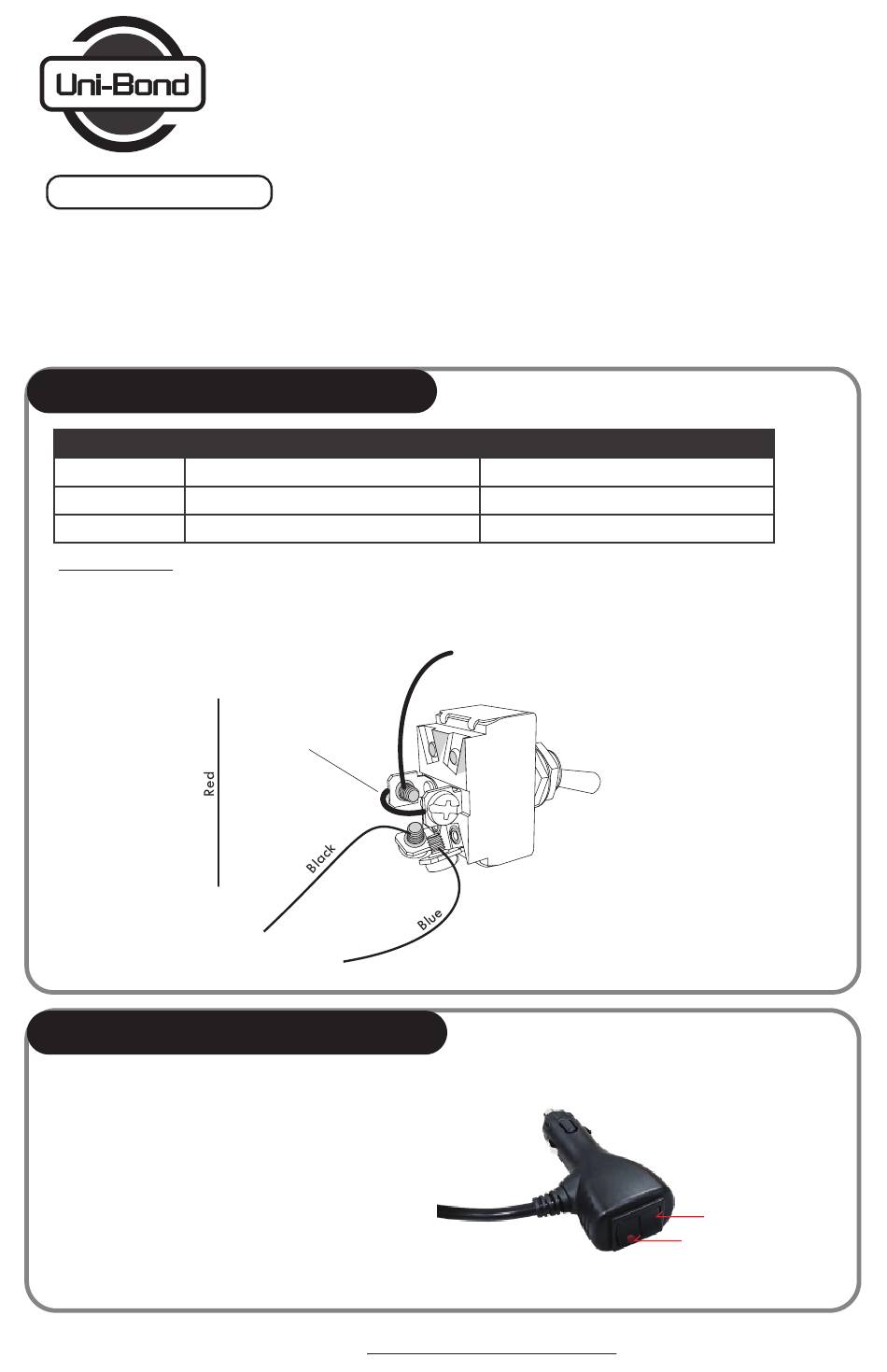

Suggested Switch Connection

Battery Positive
Power
Ground
Pattern Selection

Magnetic Mount Model: E-556AM

This Light comes with a Cigarette Power Adaptor with the following Sequence;
1. Press the ON/OFF button to turn beacan on/off
2. Press the Flash Pattern button to change patterns
This unit may not be factory-set to Flash Pattern #1

Note: Cutting wires voids the warranty

INSTALLATION MANUAL
#4 - Quad Flash [ SAE Class 1 ]
#5 - Quint Flash
#6 - Rotating
(switches sold separately)
Jumper Wires
Visit us at www.unibondlighting.com
For 12V to 24V DC Applications
Connect To
+12/24 VDC (Power)
- (Ground)
- (Ground)
From Battery Ground
Switch Part No.
ST307
(OFF/ON/MomentaryON)
E-556 Series
Flash Pattern button
ON/OFF button
