Uni-bond E-7615AB Installation Manual

Wiring Information

Function
Activate Colour #1 (Amber)
Activate Colour #2 (Blue)
Ground

Pattern Selection

Synchronization
Dimming
Light should be fused with 5 Amp Fuse (
1.0 Pattern Selection Briefly Connect Pattern Selection Wire (Yellow wire) to Power Wires:
- Less than 1 second for the pattern change
Hold for 5 seconds for the DEFAULT pattern (#1)
-
1.1

Flash Patterns

#1 - Rotating @ 60 RPM (DEFAULT)
#2 - Double Flash
#3 - Quad Flash [ ]
SAE
2.0

Synchronizing

Do not connect synchronization wires together until all E-76 lamps have been separately set to
the same pattern. Once all lamps are set to the same pattern, connect all synchronization wires
together.
3.0

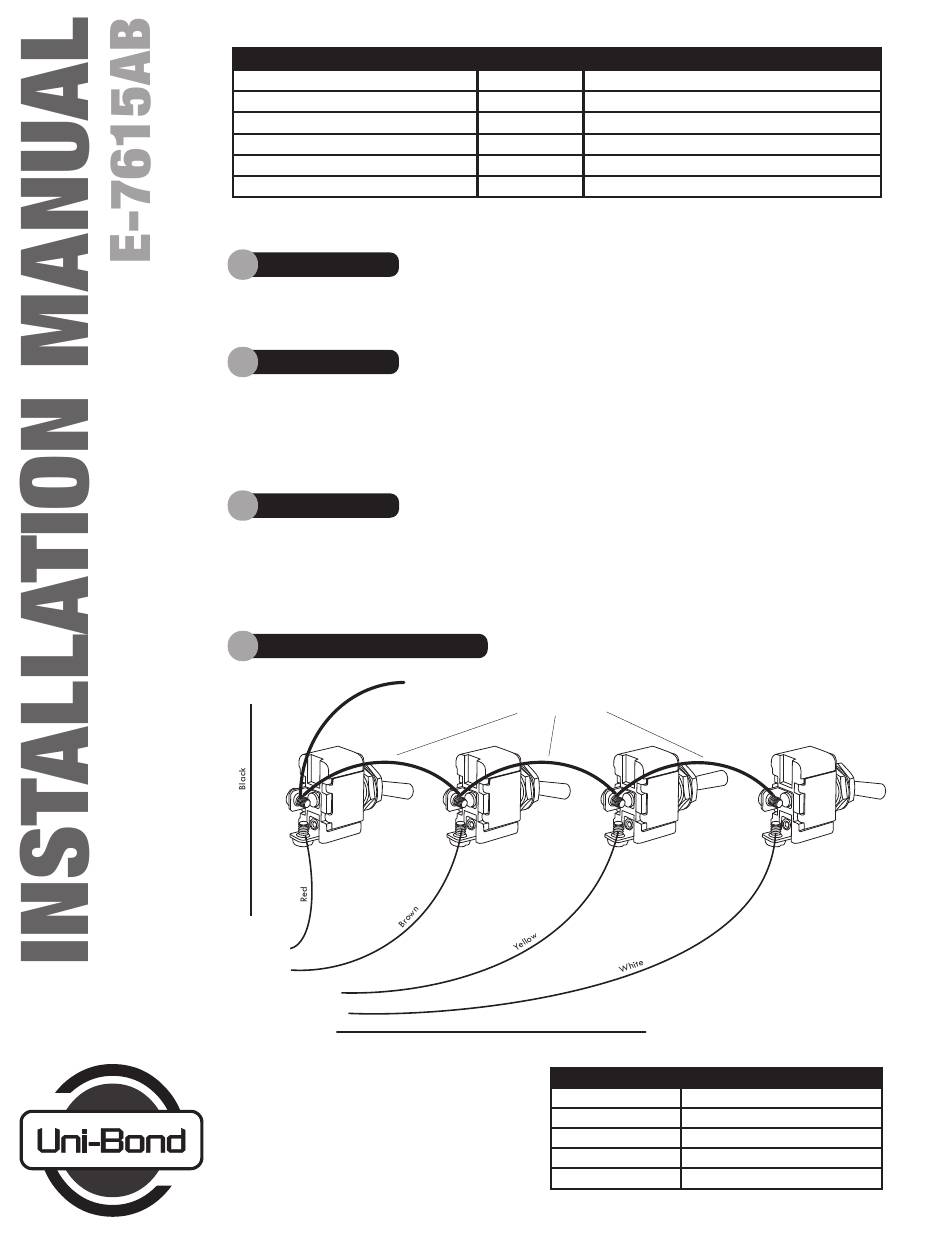

Suggested Switch Connection

Battery Ground
Switch #1
ST100
(ON/OFF)
Ground
Colour 1
Colour 2
Pattern Selection
Dimming Function
Synchronization
NOTE: Disassembling lamp or cutting the wires voids the warranty
Wire Colour Connect To
Red +12/24 VDC (Power)
Brown +12/24 VDC (Power)
Black - Ground
Yellow +12/24 VDC (Power)
Blue Synchronization Wire from other E-76 Unit
White +12/24 VDC (Power)
ATM05 sold separately
#3 - Double Flash, Left/Right Alternating
#4 - Quad Flash, Left/Right Alternating
(switches sold separately)
From Battery Positive
Jumper Wires
Switch #2
ST100
(ON/OFF)
Blue

Operation:

Switch #
Switch 1
Switch 2
Switch 1 & 2
Switch 3
Switch 4
)
NOTE: If dimming function is not
required, this connection
can be skipped
Switch #3 Switch #4
ST108 ST100
(OFF-Momentary ON) (ON/OFF)
Connect to all lamps
Lamp Function
Colour 1
Colour 2
Dual Colour Mode
Pattern Selection
Dimming Function (optional)
