Summary of Contents for Compac WD 1600

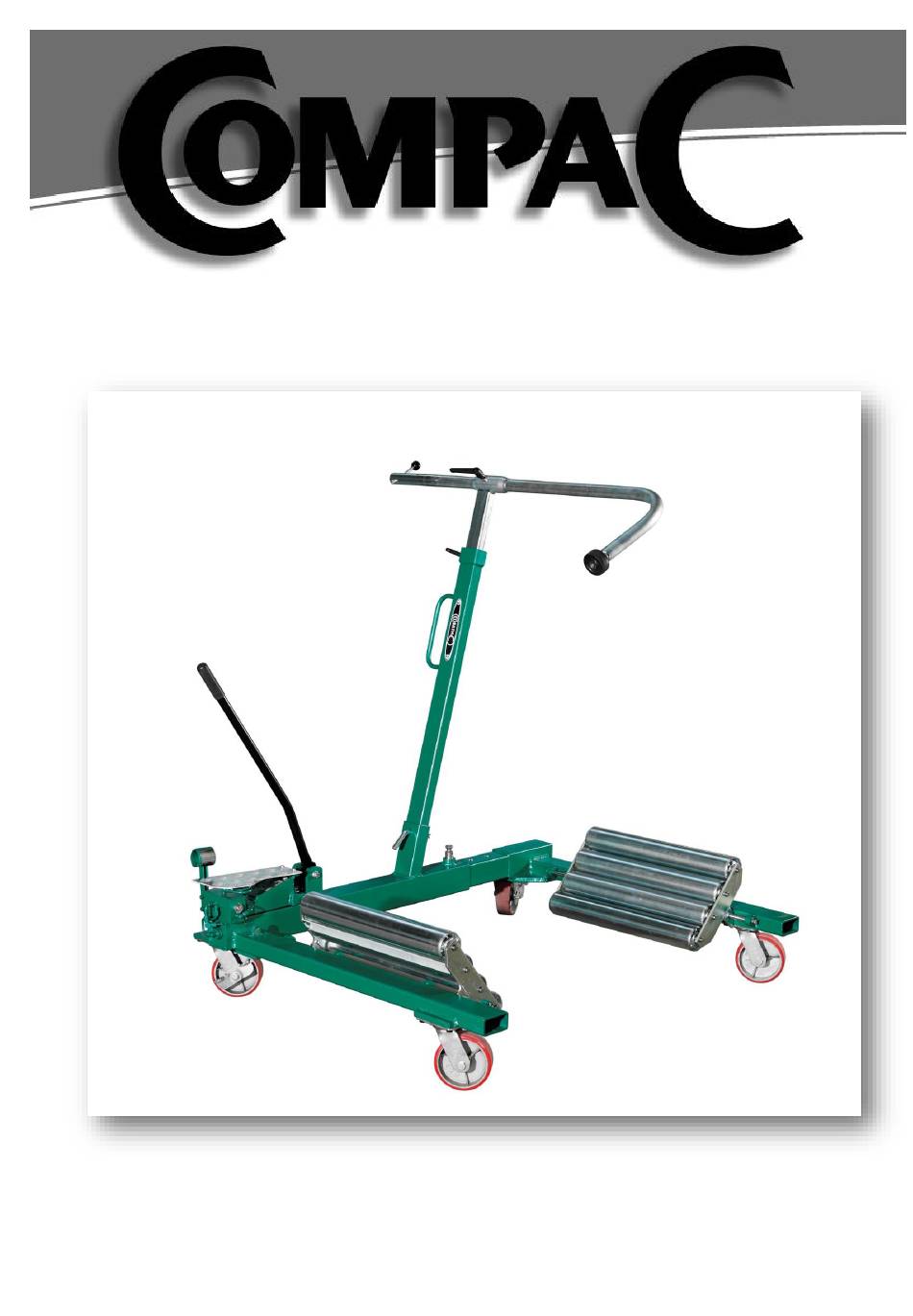

- Page 1 Operating Manual for Compac Wheel dolly Model WD 1600 This operating manual is also Before using the product: available on request in other Read and understand this manual. languages at no charge.
-
Page 2: Table Of Contents
Safety symbols ................................4 Safety and information labels that are required on the wheel dolly ..............5 General safety ................................6 Transporting the WD 1600 Wheel Dolly........................7 Preparation and assembly prior to use ........................7 Component overview ..............................8 Functional description .............................. -
Page 3: To The Owner / User
When correctly used and cared for, this dolly will serve you safely and reliably for many years. WD 1600 is a mobile lift dolly for mounting and dismounting large wheels with a diameter of 1250 mm to 2400 mm and a total weight of max. 1600 kg. -
Page 4: Safety
Knowhow is the difference Safety READ BEFORE Important: Read and understand the manual before using the product! All users must read, understand and follow all instructions and safety warnings in this operating manual and the safety labels placed on the product before using the wheel dolly. All users must be able to operate the dolly safely and care for it in accordance with this operating manual. -
Page 5: Safety And Information Labels That Are Required On The Wheel Dolly
Knowhow is the difference Safety and information labels that are required on the wheel dolly WD 1600 Label reference. !! This Side: Install pointing towards pump. !! Dieser Seite: In Richtung pumpe montieren. !! Denne side: Monteres med retning imod pumpe. -
Page 6: General Safety
Make sure that warning and information signs on the product are legible and intact at all times. • Never perform service on the dolly while it is carrying a load. Further updated safety information is available at www.compac.dk under “Service”. -
Page 7: Transporting The Wd 1600 Wheel Dolly
Knowhow is the difference Transporting the WD 1600 Wheel Dolly The WD 1600 Wheel Dolly is a mobile unit that is very versatile and can be transported to the service location in a van, securely fastened to it. Due to the dolly’s tare weight, there is a risk of injury. Therefore, it is strictly necessary that loading of the dolly into the vehicle is done with a stacking truck or forklift by staff with the necessary operating permits. -
Page 8: Component Overview
Knowhow is the difference Component overview Fig. 1 Pos. Name Horizontal support arm Change-over valve Lifting roller Vertical telescopic arm Handle for support arm (A) Lock for telescopic arm (H) Lock for support arm (A) Wheel lock Pumping rod Stabilizer safety lock Support roller Functional description To brake / stop lowering of the wheel / load, set the change-... -
Page 9: Operating Instruction
Knowhow is the difference Operating instruction Failure to observe the following will result in serious injury DANGER or death, as well as damage to property. The wheel dolly must be positioned on a horizontal, level, dry and stable surface. Before lifting a wheel, the vehicle must be lifted so the wheel is lifted completely from the ground, and the vehicle must be secured / supported properly with an approved support (se Fig. -
Page 10: Safe Operation - Manoeuvring With Wheel / Load
Knowhow is the difference 9. Loosen the lock (L) so the vertical telescopic arm (H) can move up and down during lifting and lowering. 10. Lift the safety lock (S) and turn it so it stays up (See Fig. 3) 11. -
Page 11: Safe Operation - Stopping Lowering Manoeuvres
Knowhow is the difference Safe operation – Stopping lowering manoeuvres Failure to observe the following may result in serious bodily WARNING injury or death, as well as damage to property. After the safety lock (S) has been deactivated and the pedal (E) for the Fig. -
Page 12: Maintenance Instructions
In case repair of the dolly is required, use only original Compac parts. This work must be done by a qualified hydraulics specialist. Use of non-original parts not supplied by Compac could make the dolly unsafe for use and nullifies the warranty. -
Page 13: Specifications Wd1600
Knowhow is the difference Specifications WD1600 Dimensions and weight: Width x Depth x Height (Operation): 2081 mm x 1280 mm x 2479 mm Width x Depth x Height (Transport): 1362 mm x 1280 mm x 1150 mm Weight: 161 kg Min. -
Page 14: Periodic Maintenance And Inspection
If the products are not from the current assortment (catalogue models), please see under “Old models”. For these, too, only original parts from Compac should be used, to maintain safe and reliable operation of the product. - Page 15 Are all safety labels present as indicated in the label overview? Action 3N: In case of any missing or damaged safety label, contact Compac to purchase a new label. 4. Testing and adjustment Pump the wheel dolly together with NO LOAD. If the wheel dolly cannot be pumped together entirely - check the oil level (See action 3A) or check for any foreign objects that may have become lodged in the dolly and which are preventing the moving parts from moving normally.
- Page 16 Knowhow is the difference Calibrating the dolly. Setting the dolly to a capacity greater than the max. capacity (1,600 kg) can result in injury and property damage, as the DANGER dolly is only built for a max. capacity of 1,600 kg. If the unit is to be calibrated, the load must be 1,600 kg.
-
Page 17: Service Log
Knowhow is the difference Service Log Date Performed By Other Business Next Service D/M/Y Stamp or signature D/M/Y Operating manual WD1600 (GB) V.2 / Compac 2018 / lvm...
