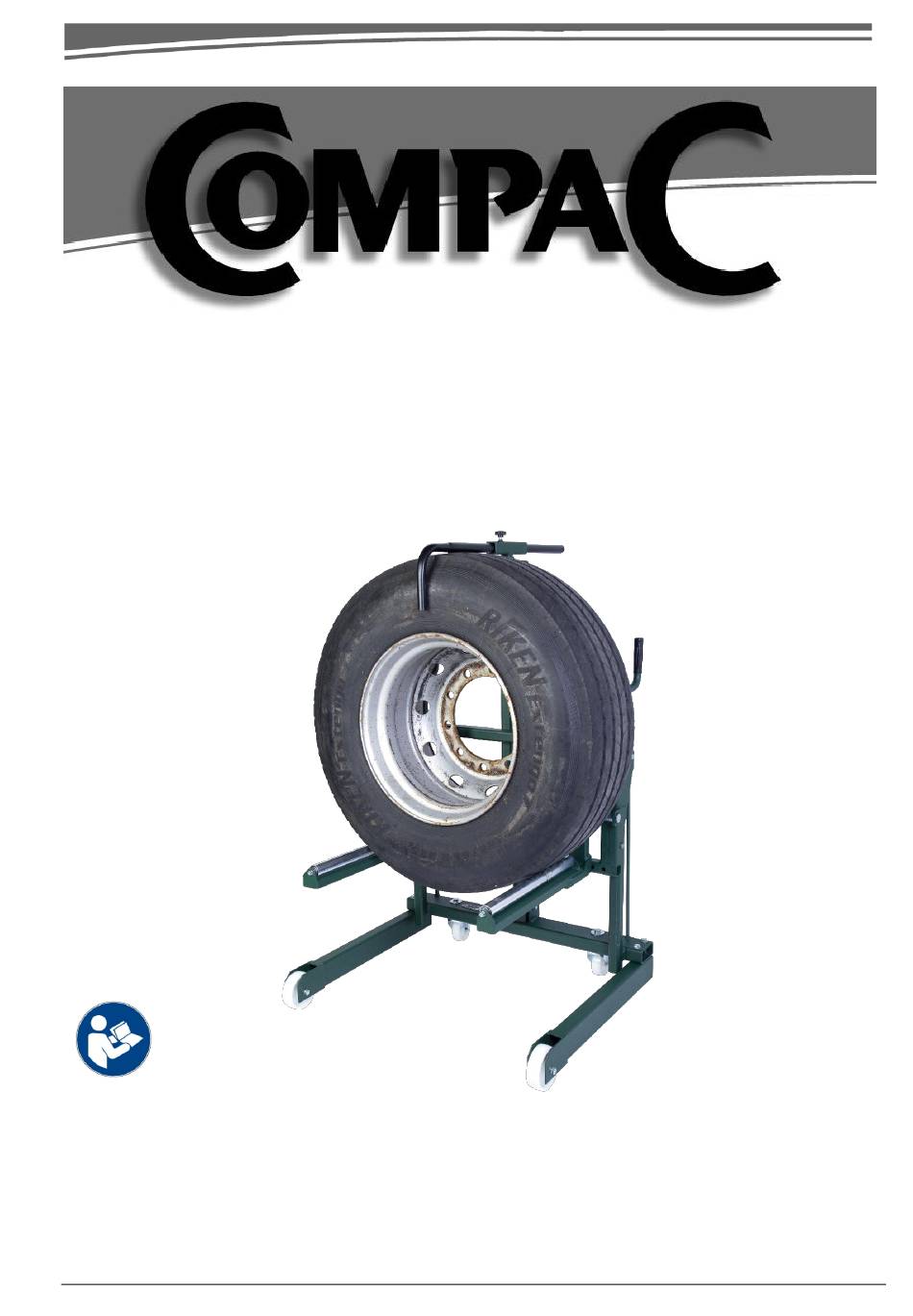

Operating Manual for Compac Wheel
Dolly model WD500 G1
Original Danish operating manual
Before using the product: Read this manual carefully.
This user manual is available in other languages at no extra cost on request
The user manual must always come with an EU Declaration of Conformity.
(EN)
1 / 15
2020-01-24 R1.1 S1
5374 WD500 G1 (EN).docx
