Craftsman CMGSB24208 Manual

A. Loosen the top two lock nuts securing the upper
1
and lower handle and remove the two carriage
screws from the upper handle and set aside .
B. Place shift lever into F6
position.
C. Pivot upper handle into
operating position.
D. Attach the two carriage
screws and lock nuts
A
removed in Step 1. Finish
securing the handle by
tightening the top two lock
nuts loosened in Step 1.
A. Remove wing nut and hex
2 screw from chute control head and
clevis pin and cotter pin from chute
support bracket.
B. Position
chute A
assembly
(forward-
B
facing)
over
chute
base.
B
3
A. Place
chute
B
assembly
onto
chute
base.
B. Secure
A
chute
control
head to
chute support bracket with clevis pin and
cotter pin removed in Step 2.
© 2018 31AS68EE CRAFTSMAN and the CRAFTSMAN logo are trademarks of Stanley Black & Decker, Inc. or an affiliate thereof and are used under license.
IMPORTANT: READ OPERATOR'S MANUAL AND ENGINE MANUAL THOROUGHLY
and FOLLOW THE important SAFE OPERATION PRACTICES BEFORE OPERATING.
READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.
PARA INSTRUCCIONES EN ESPAÑOL, REFIÉRASE AL MANUAL DEL OPERADOR.
B
C
D
Upper Handle
Chute

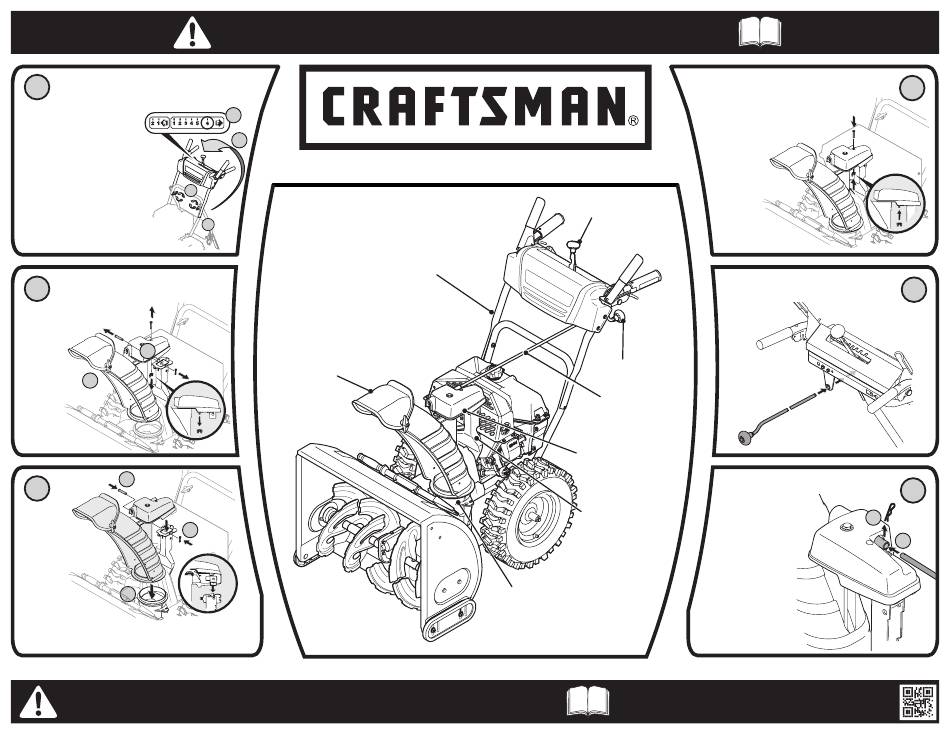

Fast Start Guide - Assembly
Shift Lever
Overhead
Chute Control
Chute
Control Rod
Chute Control
Head
Chute Support
Bracket
Chute Base
Need Help?
www.CRAFTSMAN.com or Call 1-888-331-4569
Finish securing chute control head
to chute support bracket with
wing nut and hex screw removed
in Step 2.
Insert chute control rod into the support
bracket on rear of the dash panel.
A. Remove hairpin
clip from rear of
chute control
head.
A
B. Insert chute
control rod into
rear of chute
control head.
Secure chute
control rod to
chute control
assembly with
hairpin clip
removed in
Step A.
4
5
6
B
778-15518
