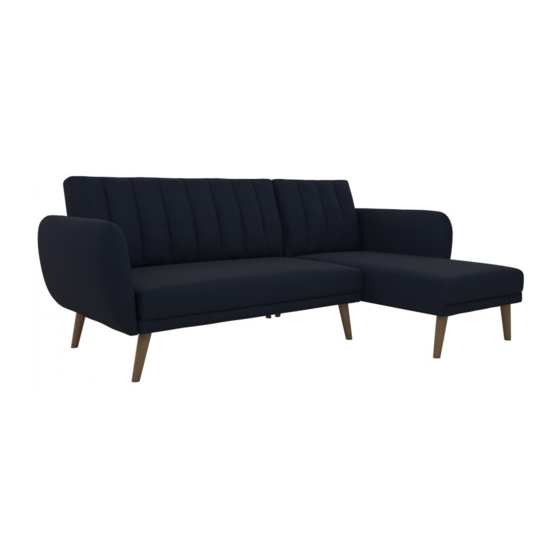

Sectional Sofa Bed
Weight Limit: 600 Lb / 272 Kg
L .J . - 2020.08.18
© 2014 Dorel Home Products All Rights Reserved
Option 1
Option 2
Thank you for purchasing from Dorel UK!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Call 01942 524100
Email cseurope@dorel.com
Date of Purchase
IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE
2276629NUK - Blue Linen
2277929NUK - Green Linen
2275429NUK - Light Grey Linen
2275029NUK - Dark Grey Linen
Lot Number
B342270000NUK00
1
Advertisement
Related Manuals for Dorel Home Products 2276629NUK
Summary of Contents for Dorel Home Products 2276629NUK
- Page 1 Call 01942 524100 Email cseurope@dorel.com Option 1 Date of Purchase Lot Number Option 2 IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE L .J . - 2020.08.18 B342270000NUK00 © 2014 Dorel Home Products All Rights Reserved...
-
Page 2: Warranty Information
Warranty Information Read Before Beginning Assembly Dorel UK warrants this product to be free from defects in material and workmanship and ● Call our Customer Care phone number if you need assistance. ● Work in a spacious area and near where the unit will be used, preferably on a agrees to remedy any such defect. - Page 3 Parts Replacement Parts, visit call 01942 524100 This item is packed in 2 boxes! All parts listed on this page are in Box 1 . If Box 2 is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly.
- Page 4 Parts Replacement Parts, visit call 01942 524100 This item is packed in 2 boxes! All parts listed on this page are in Box 2 . If Box 1 is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly.
-
Page 5: Hardware Pack
Hardware Pack Hardware Pack #: T2276629N-00 2 3/8 2 3/4 5/16 2 15/16 Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page. - Page 6 Step 1 Hand tighten into C & F.
- Page 7 Step 2 There are 2 options for the chaise position.From Step 2 to Step 6,we will show you how to assemble Option 1. If you intend to assemble Option 2, please start from Step 7 instead. Attach C to A with as shown.
- Page 8 Step 3 Attach D & E to A with as shown.
- Page 9 Step 4 Attach F to B with & as shown.
- Page 10 Step 5 Attach D & E to B with as shown.
- Page 11 Step 6 Attach A & B with as shown.
- Page 12 Step 7 Attach F to A with as shown. Option 2...
- Page 13 Step 8 Attach D & E to A with as shown.
- Page 14 Step 9 Attach C to B with as shown.
- Page 15 Step 10 Attach D & E to B with as shown.
- Page 16 Step 11 Attach A & B with as shown.
-
Page 17: Helpful Hints
Helpful Hints Weight Limit: Lb / ● Move your new furniture carefully, with two people lifting and carrying the unit to its new location. ● Your furniture can be disassembled and reassembled to move. ● Clean the product with a soft damp cloth. DO NOT use harsh chemicals or abrasive cleaners.
