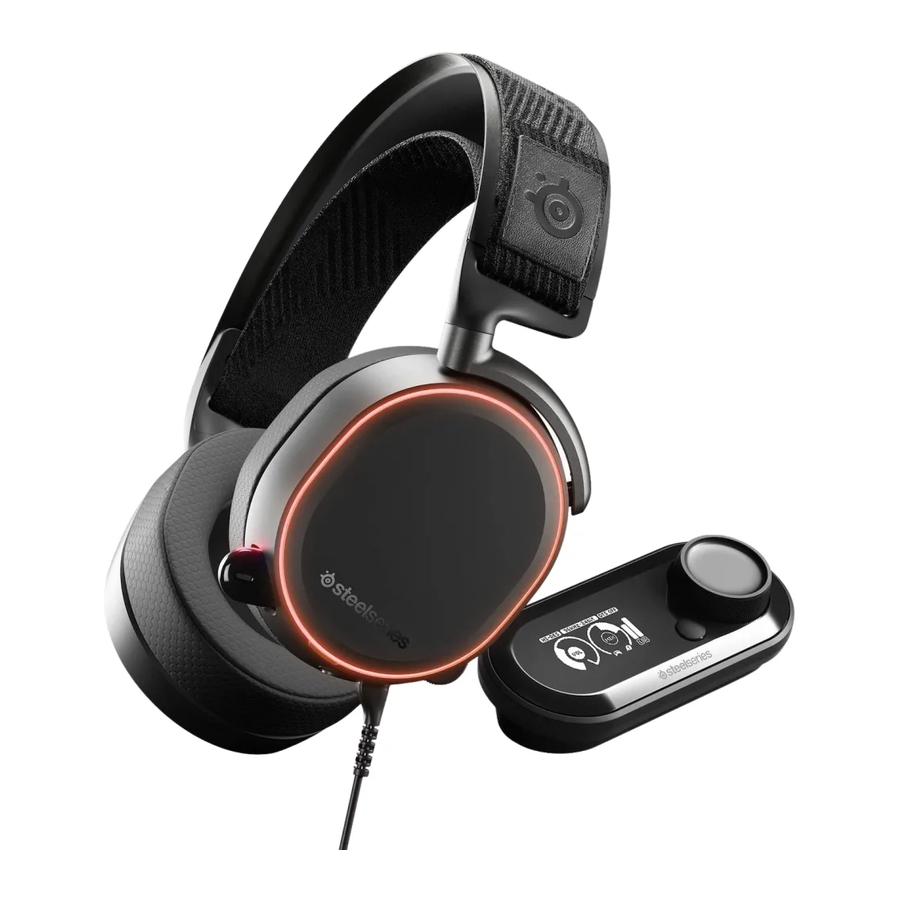

SteelSeries ARCTIS PRO + GameDAC Manual
Also See for ARCTIS PRO + GameDAC:

Advertisement

SteelSeries ARCTIS PRO + GameDAC Manual

STEELSERIES ENGINE

SteelSeries Engine

Download SteelSeries Engine to customize illumination on your headset, control the GameDAC from PC, and to integrate with Engine Apps (like displaying Discord info on the OLED screen). steelseries.com/engine

SOFTWARE REQUIREMENTS

Platforms

  • Windows 7 +
  • Mac OS X 10.8 +

120 MB of free hard drive space for installation

* DTS Headphone: X 7.1 Surround available on Windows only. Software installation required.

Find help at support.steelseries.com

PACKAGE CONTENTS

Headset

GameDAC

Main Cable

Mobile Adapter

USB Audio Cable

Optical Audio Cable

Product Information Guide

SYSTEM REQUIREMENTS // COMPATIBILITY

PC

PS4 (Pro / Original / Slim)

PRODUCT OVERVIEW

Overview Step 1

  1. Ski Goggle Headband *
  2. Airweave Ear Cushions *
  3. Clearcast Microphone

* Find accessories and replacement parts at steelseries.com/gaming-accessories

Overview Step 2

  1. Microphone Mute Button
  2. Volume Control
  3. Main Cable Jack
  4. Headphone Share Jack

Overview Step 3

  1. Main Headset Cable *
  2. USB Audio Cable
  3. Optical Audio Cable
  4. Mobile Adapter *

Overview Step 4

  1. OLED Screen
  2. Secondary Button
  3. Control Wheel
  4. Headset Connection Jack
  5. Mobile Jack
  6. Line Out Jack
  7. USB Jack
  8. Optical Jack

GameDAC OPERATION

GameDAC Operation

HOME SCREEN

  • Press and release the control wheel to toggle between volume and ChatMix
  • Rotate the control wheel to adjust the selected parameter
  • Press and release the Secondary Button to toggle DTS Headphone: X on and off
  • Press and hold the control wheel to bring up the main menu
  • Rotate the control wheel to cycle menu items
  • Press and release the control wheel to select
  • Press and release the Secondary Button to move back in the menu

SETUP PS4 PRO AND ORIGINAL

HARDWARE INSTALLATION

PS4 Setup

  1. Connect the main headset cable from the headset to the GameDAC
  2. Connect the USB audio cable from the GameDAC to the front of the PS4
  3. Connect the Optical Audio Cable from the GameDAC to the back of the PS4

GameDAC SETTINGS

  1. Press and hold the control wheel to enter the main menu
  2. Select Input, then click the control wheel to edit
  3. Choose the PS4 mode

PS4 AUDIO SETTINGS

SOUND AND SCREEN > AUDIO OUTPUT SETTINGS

Primary Output Port Digital Out (Optical)
Audio Format (Priority) Bitstream (Dolby)

DEVICES > AUDIO DEVICES

Output to Headphones Chat Audio

SETUP PS4 SLIM

HARDWARE INSTALLATION WITH OPTICAL AUDIO

PS4 Slim Setup with Optical Audio

  1. Connect the main headset cable from the headset to the left side of the GameDAC
  2. Connect the optical cable from the GameDAC to the optical output of your TV or HDMI adapter
  3. Connect the USB audio cable from the GameDAC to the USB port on the front of the PS4

* The PS4 Slim does not have an optical output. For full functionality you will need to connect the GameDAC to the optical output of a TV or an HDMI adapter. If no optical is available proceed to the next section.

GameDAC SETTINGS

  1. Press and hold the control wheel to enter the main menu
  2. Select Input, then click the control wheel to edit
  3. Choose the PS4 mode

PS4 AUDIO SETTINGS

SOUND AND SCREEN > AUDIO OUTPUT SETTINGS

Audio Format (Priority) Bitstream (Dolby)
HDMI Audio Output 5.1 ch

DEVICES > AUDIO DEVICES

Output to Headphones Chat Audio

HARDWARE INSTALLATION WITHOUT OPTICAL AUDIO

PS4 Slim Setup without Optical Audio

  1. Connect the main headset cable from the headset to the left side of the GameDAC
  2. Connect the USB audio cable from the GameDAC to the USB port on the front of the PS4

* Without optical audio, surround sound and ChatMix features will be unavailable.

GameDAC SETTINGS

  1. Press and hold the control wheel to enter the main menu
  2. Select Input, then click the control wheel to edit
  3. Choose the PS4 mode

PS4 AUDIO SETTINGS

DEVICES > AUDIO DEVICES > OUTPUT TO HEADPHONES > ALL AUDIO

Audio Format (Priority) Bitstream (Dolby)
HDMI Audio Output 5.1 ch

DEVICES > AUDIO DEVICES

Output to Headphones Chat Audio

SETUP PC

Find help at support.steelseries.com

PC Setup

  1. Connect the main headset cable from the headset to the GameDAC
  2. Connect the USB audio cable from the GameDAC to the PC
  3. (Optional) Connect a 3.5mm cable from the GameDAC Line Out to a pair of powered speakers

GameDAC SETTINGS

  1. Press and hold the control wheel to enter the main menu
  2. Select Input, then click the control wheel to edit
  3. Choose the PC or Hi-Res mode (Note: Hi Res enables 96k/24bit audio, but surround sound and ChatMix are unavailable)

WINDOWS SOUND SETTINGS

  1. Under "Playback" highlight GameDAC Game Audio and select "Set Default"
  2. Under "Playback" select GameDAC Chat Audio and select "Set Default Communications Device"
  3. Under "Recording" highlight GameDAC Chat Audio and select "Set Default"

SKI GOGGLE HEADBAND

Accessory headbands available at steelseries.com

Headband

SPEAKER PLATE

Accessories available at steelseries.com

Speaker Plate
