SteelSeries Arctis 3 Bluetooth Manual

PACKAGE CONTENTS

Headset
Main cable (1.2 m)
Dual 3.5 mm extension (1.8 m)
Micro USB charging cable
Product information guide

SYSTEM REQUIREMENTS // COMPATIBILITY

PC / Mac
PS4 / Switch / Xbox One
Mobile

find help at support.steelseries.com

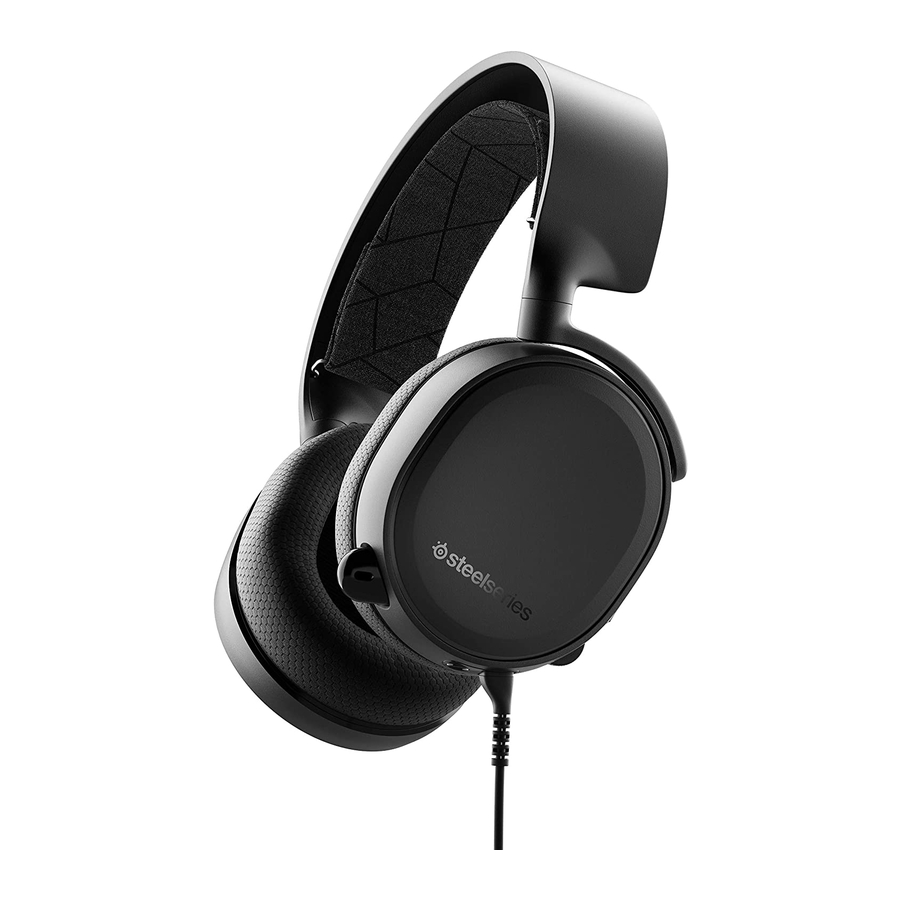

PRODUCT OVERVIEW

PRODUCT OVERVIEW 1
PRODUCT OVERVIEW 2

  1. Ski goggle headband *
  2. Main headset cable *
  3. Dual 3.5 mm 'Y' extension cable *
  4. Micro USB charging cable*
  5. Breathable moisture-wicking ear cushions *
  6. Retractable microphone
  7. USB charging port
  8. Power button
  9. Microphone mute button
  10. Volume control
  11. Main cable jack
  12. Headphone share jack

* Find accessories and replacement parts at steelseries.com

SETUP

SETUP

NINTENDO SWITCH

NINTENDO SWITCH 1
NINTENDO SWITCH 2

Nintendo Switch Chat

  1. Connect the main cable from the headset to the Switch.
  2. Pair the headset to your mobile device.
  3. Download the Switch chat app on your mobile device.
  4. Game and chat audio will be mixed together in the headset.

MICROPHONE

Rectractable microphone
Rectractable microphone

Top view
Top view

Front view
Front view

Positioning
Positioning

Position the microphone close to the corner of your mouth with the flat surface facing you.

BLUETOOTH

PAIRING

With headset off, press and hold the power button for 6 seconds (power LED will blink rapidly).

On your mobile device scan for Bluetooth headsets and select Arctis 3 Bluetooth.

CONTROL


ANSWER/END VOICE CALL
single · press the power button


PLAY/PAUSE MUSIC
single · press the power button


SKIP TRACK
double · · press power button

CHARGING

The power button color indicates your battery level:

Green 100-50%
Yellow 49-20%
Red 19-10%
Red (fast blink) 9-1%

To charge the headset connect the micro USB charging cable from the headset to a PC or any USB power source.

SKI GOGGLE HEADBAND

SKI GOGGLE HEADBAND
accessory headbands available at steelseries.com

REGULATORY


Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Operations in the 5GHz products are restricted to indoor usage only.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

Industry Canada Statement:

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.


Safety Guideline for Lithium Battery

Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.

This battery must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.


Risk of explosion if battery pack is not replace by same type as specified by the manufacturer.

  1. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.
  2. Please keep this battery pack away from fire and high heat sources due to explosion might happen. Do not place your battery pack close to any heater or hot location.
  3. This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.
  4. This battery pack shall not be exposed to moisture, dripping or splashing.
  5. If any electrolyte flow out of this battery pack when touch the user's eyes and skin, please seek medical advice immediately.

Europe – EU Declaration of Conformity


Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.

The full text of the EU declaration of conformity is available at the following internet address: https:// steelseries.com/

SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.

WEEE
This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

This product is compliant with requirements of Circular No. 30/2011/TT-BCT Regulations "STIPULATING TEMPORARILY THE PERMISSIBLE CONTENT LIMITATION OF SOME TOXIC CHEMICALS IN THE ELECTRONIC, ELECTRICAL PRODUCTS"

ACMA Compliance (Australia/ New-Zealand)

Direct Current

Contact Information
Asia SteelSeries ApS. Taiwan Branch
16F, No.150, Jian-Yi Rd., Chung Ho Dist.
New Taipei City, Taiwan
+886 2 8226 3858
USA 656 W Randolph St, Suite 3E
Chicago, IL 60661, USA
+1 312 258 9467
Europe Dirch Passers Allé 27, 5.Sal 2000 Frederiksberg, Denmark +45 702 500 75

Product: Headset
Model No.: HS-00015
Rated: 5V , 500mA
Made in China
Operating Temperature: 0 to +40 ℃

Brand
learn more at steelseries.com
