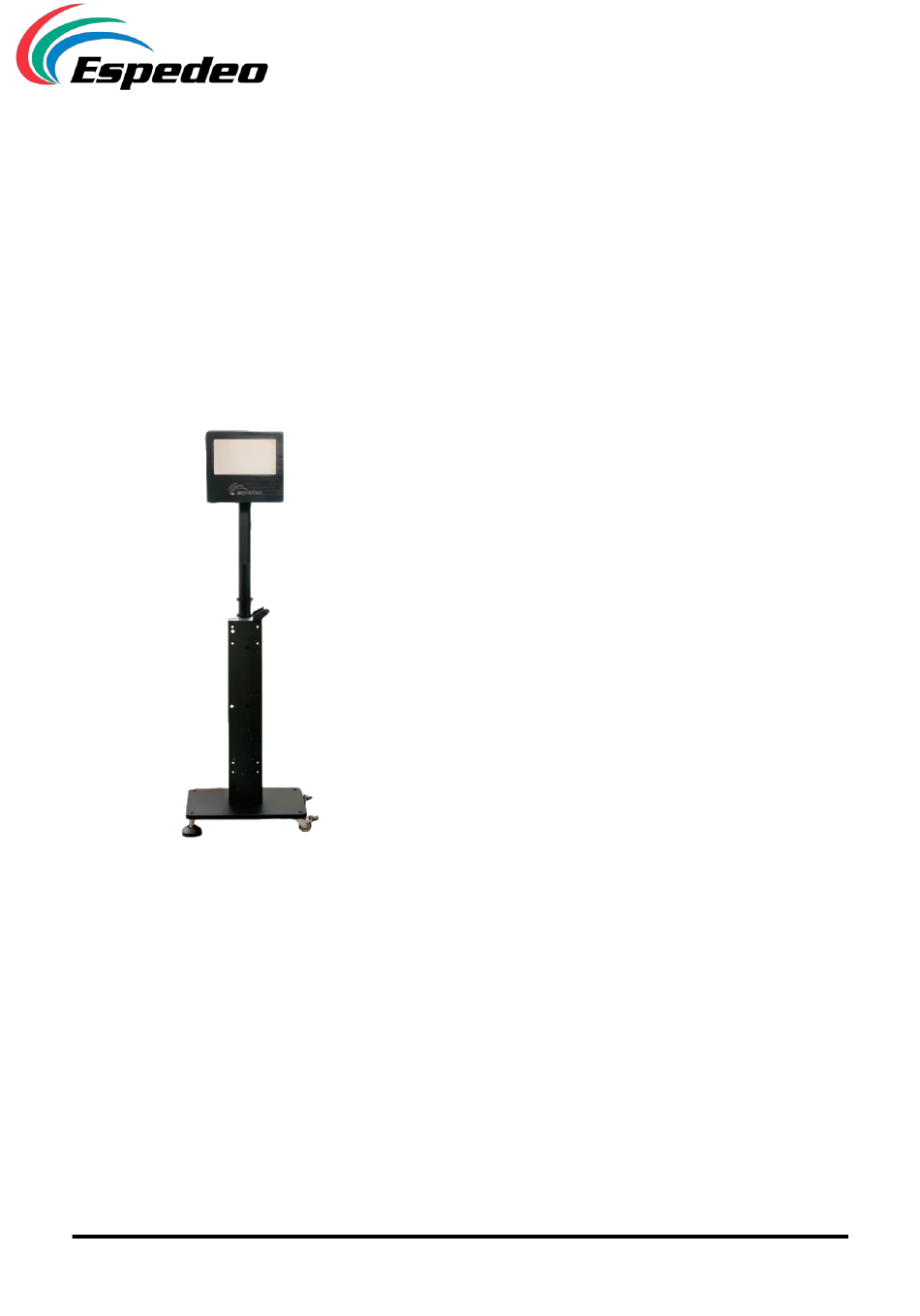

- Page 1 PM-2000A 3D Polarized System User Manual October 12 , 2022 Before installing and operating the Espedeo™ PM-2000A 3D Polarized System, please read this User Manual thoroughly...
- Page 2 This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. - 2 - October 12 , 2022 PM-2000A 3D Polarized System User Manual...
-
Page 3: Table Of Contents
Section 5.6 cannot be performed) ................15 OPTICAL ALIGNMENT ......................17 NOTES ..........................18 7.1. Installation ..........................18 7.2. Routine Maintenance ......................18 7.3. Transportation........................18 7.4. Safety............................ 19 7.5. Tips ............................19 - 3 - October 12 , 2022 PM-2000A 3D Polarized System User Manual... -
Page 4: System Introduction
1. System Introduction The Espedeo™ PM-2000A is a standalone passive 3D Polarized System specially developed for digital cinema projectors. Featuring flexible and easy installation, the system can automatically switch to the corresponding operating position by identifying 2D and 3D signals. Equipped with specified polarized glasses, the PM-2000A is able to present stunning and brilliant 3D images. -
Page 5: System Specifications
Maximum screen size 18m (59ft) width Window size 186 x 104mm Optical type Circular polarization Supported Frame rates 24fps, 48fps & 60fps per eye Table 2 - 2 - - 2 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 6: Corresponding Requirements For Cinema
Silver screen: Luminance Gain factor ≥ 2.4 Table 3 Digital Cinema Projector Settings: Dark time 650 - 850μs Output Reference delay time -120μs Table 4 - 3 - - 3 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 7: System Components
4. System Components The PM-2000A 3D System consists of the following components: Sr. No. Part Description Quantity ① Polarizer 1 PCS. Adjustable Bracket ② 3 PCS. Extension Kit ③ Motorized Bracket 1 PCS. ④ Bracket Support Base 1 PCS. ⑤... - Page 8 Figure 1: System Components NOTE When installing the 3D system, handle the equipment with care to avoid damaging the digital cinema projector lens or the polarizer. - 5 - - 5 - PM-2000A 3D Polarized System User Manual October 12 , 2022...
-
Page 9: Polarizer
The dimensions of the polarizer are approximately 234 x 211 x 25mm and its weight is about 1.3 kg. NOTE The polarizer is a major optical component of the PM-2000A system. Ensure that it is handled it care during system installation. -
Page 10: Motorized Bracket
Moreover, two sets of screw holes are used to fix the bracket for the alternative, as shown in Figure 5. NOTE Please ensure that the distance between projector lens and the polarizer is within 15cm after the installation. - 7 - - 7 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 11: Installation Of The 3D System
: Mount the motorized bracket onto the bracket support base with screws (M6*16mm), as ② shown in Figure 6. Figure 6: Installing the Motorized Bracket - 8 - - 8 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 12: Installing The Polarizer
: Fix the adjustable connecting trough of the adjustable bracket extension kit with screws ② (M6*16mm) from the left and right sides, as shown in Figure 7. Figure 7: Installing the Polarizer - 9 - - 9 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 13: Installing The Adjustable Bracket Extension Kit
Fix the adjustable bracket extension kit with the polarizer installed onto the motorized bracket with a clamping block, as shown in Figure 8. Figure 8: Installing the Adjustable Bracket Extension Kit - 10 - - 10 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 14: Cable Connections For Passive 3D System
Connect one end of the DB9M/9F motor signal cable to the motor drive output port on the polarizer, and connect the other end to the motor drive input port on the motorized bracket, as shown in Figure 9. - 11 - - 11 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 15: Alternative Power Connection When 3D Interface Is Not Available From Projector (With Power Converter And Gpio Control Signal)
After connecting the cables, turn on the power switch of the polarizer. Activate the digital cinema projector for 3D movie playback and check the signal LEDs on the polarizer. - 12 - - 12 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 16: Led Indicators Of Passive 3D System
3D glass is inverted. Then we can press the L/R switch to toggle the Left/Right eye signal for correction. - 13 - - 13 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 17: Adjusting The Operating Position Of The Polarizer For 3D Playback
Figure 12. Figure 12: Adjusting the operating position of the Polarizer for 3D Playback - 14 - - 14 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 18: Adjusting The Default 3D Operating Position Of The Motorized Bracket
▪ The motorized polarizer stays apart from the digital cinema projector by moving downward when transit from 3D to 2D mode. - 15 - - 15 - PM-2000A 3D Polarized System User Manual October 12 , 2022... - Page 19 Figure 13: Adjusting the default 3D operating position of the Motorized Bracket - 16 - - 16 - PM-2000A 3D Polarized System User Manual October 12 , 2022...
-
Page 20: Optical Alignment
▪ Tighten the lock screen screw on the back of hinge, after the adjustments have been made. - 17 - - 17 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 21: Notes
DO NOT throw or toss the passive 3D system. Keep it away from fierce vibration. ▪ The polarizer is fragile and must be separately placed. DO NOT place any heavy object on it in order to avoid damage. - 18 - - 18 - PM-2000A 3D Polarized System User Manual October 12 , 2022... -
Page 22: Safety
Power OFF the system and remove the connection cables before moving or cleaning the 3D system. ▪ DO NOT touch the plugs with wet hands. - 19 - - 19 - PM-2000A 3D Polarized System User Manual October 12 , 2022... - Page 23 Technical Support Worldwide Offices Copyright © 2022 Espedeo Holdings Limited | All rights reserved. All trademarks listed on this website are properties of their respective owners. Specifications are subject to change without notice due to ongoing product development and improvement.
