Lyric
programming wand
TM
User Guide for hearing care professionals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lyric and is the answer not in the manual?

Questions and answers

Related Manuals for Phonak Lyric

Summary of Contents for Phonak Lyric

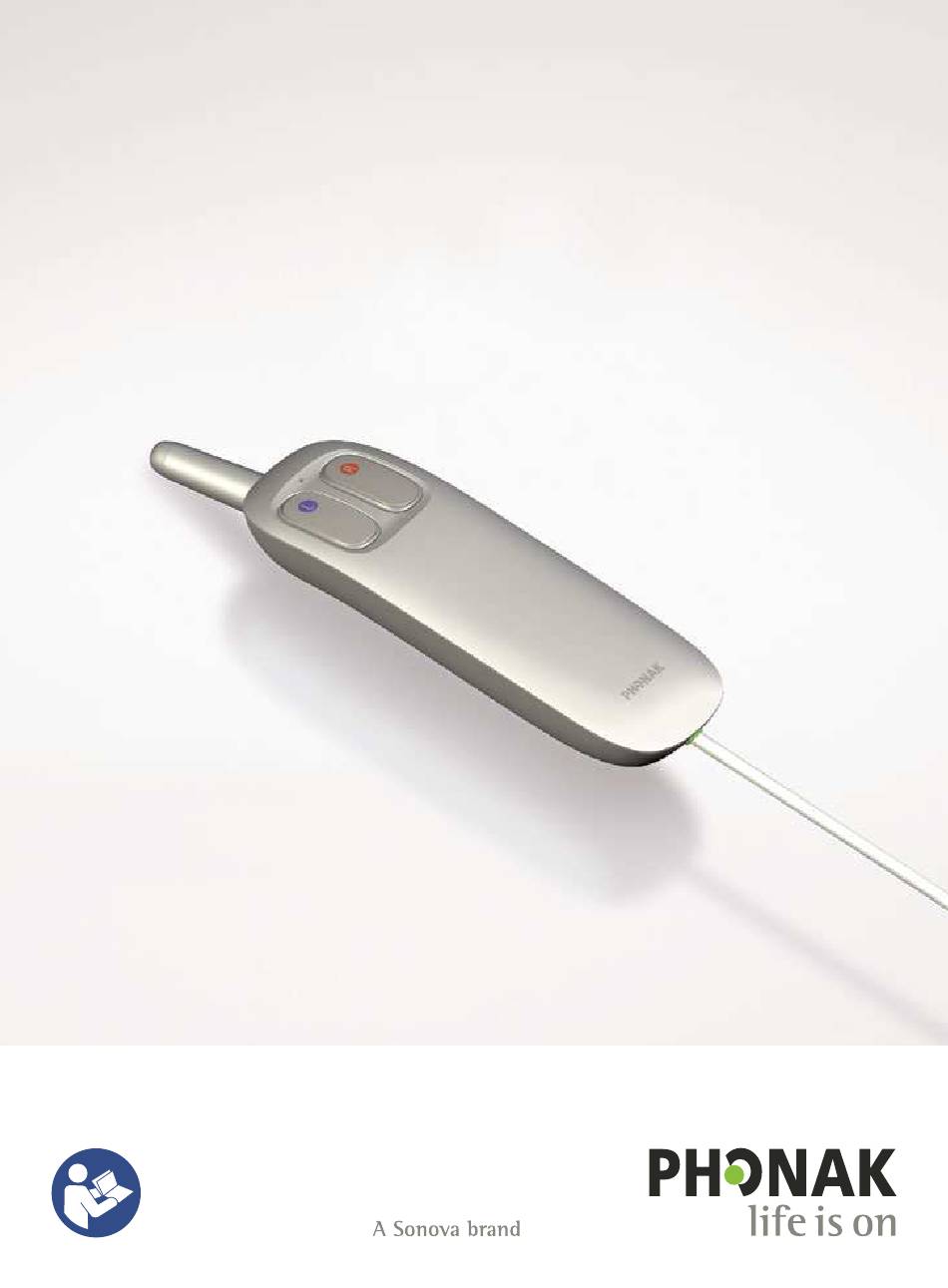

  • Page 1 Lyric programming wand User Guide for hearing care professionals...
  • Page 2 Lyric programming wand. Intended use The Lyric programming wand enables the wireless transfer of fitting data from a PC to the client’s Lyric3 and Lyric4 hearing aid. For more information on Lyric3 and Lyric4, see the respective user guides 029-0300-03 and 029-0836-03.

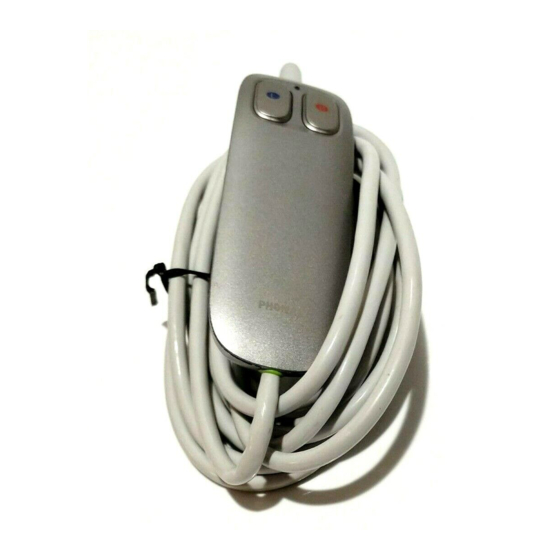

  • Page 3 Description a Tip b Status LED c Programming button left / right d Wand body of 2.5 m (8 feet) e USB cable...

  • Page 4: Getting Started

    After successful set-up, the status LED on the wand will turn green to indicate that the wand is ready for use. Please note that in this user guide, the term Lyric hearing aid is used for Lyric3 and Lyric4 hearing aids.
  • Page 5 Programming To program, hold the tip of the wand close to the lateral end of the Lyric hearing aid and press the programming button according to the ear you want to fit. The status LED will flash green during programming.
  • Page 6 The Lyric hearing aid will play a double beep to indicate that it has been programmed. When the Lyric hearing aid is programmed for the first time, it will switch from “Ship Mode” to ON when successfully programmed. This can be verified by listening for feedback or using a listening stethoscope.
  • Page 7 Further indicators If an error occurs during programming, the status LED will flash orange for 3 seconds before turning back to green. In that case repeat the programming procedure. If any other malfunctions occur with the wand, the status LED will turn red. In that case, reboot the wand by disconnecting and reconnecting it to the USB-port.

  • Page 8: Care And Maintenance

    To ensure a long service life, Sonova AG provides a minimum of a 5 years service period after phase out of the respective Lyric programming wand. Further information regarding product safety, see chapter Important safety information.
  • Page 9 Any serious incident that has occurred in relation to the hearing aid, should be reported to the manufacturer representative and the competent authority of the state of residence. A serious incident is described as any incident that directly or indirectly led, might have led or might lead to any of the following: a) the death of a patient, user or other person b) the temporary or permanent serious deterioration...

  • Page 10: Important Safety Information

    Please read the information on the following pages before using your Lyric programming wand. 1. Hazard warnings The Lyric programming wand contains a magnet. If a medical device like a pacemaker is used, read the specific user guide to clarify possible impact of the magnetic fields to the medical device.
  • Page 11 Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the Lyric programming wand including cables specified by the manufacturer. Otherwise, degradation of the performance of this...
  • Page 12 Lyric programming wand. Do not drop the Lyric programming wand! Dropping onto a hard surface can damage your Lyric programming wand. Do not use the Lyric programming wand in areas where electronic equipment is prohibited.

  • Page 13: Information And Description Of Symbols

    Type B of EN 60601-1. The surface of the Lyric programming wand is specified as an applied part of Type B. This symbol indicates that it is...
  • Page 14 This symbol indicates that it is important for the user to pay attention to the relevant warning notices in these user guides. Important information for handling and product safety. Indicates the authorized representative in the European Community. The EC REP is also the importer to the European Union.
  • Page 15 700 hPa to 1060 hPa The symbol with the crossed-out garbage bin is to make you aware that the Lyric programming wand may not be thrown away as normal household waste. Please return it to your group company. Proper disposal protects the...
  • Page 16 Indicates the manufacturer’s serial number so that a specific medical device can be identified. Indicates the manufacturer’s catalogue number so that the medical device can be identified The device is a medical device. Indicates the medical device manufacturer, as defined in EU Medical Device Regulation 2017/745.
  • Page 18 Manufacturer: Sonova AG Laubisrütistrasse 28 CH-8712 Stäfa Switzerland www.phonak.com...
