Leica C-Lux 1 Brochure & Specs

LEICA C-LUX 1
Fast stylish, compact, fl
High resolution 2.5-inch display pro-
vides a clear view of critical details.
Exquisitely sharp photos even
in candlelight or of moving
objects thanks to the built-in
optical image stabilizer and the
high-sensitivity setting of up
to ISO 1600.
Leica Camera AG / Oskar-Barnack-Straße 11 / D-35606 Solms
www.leica-camera.com / info@leica-camera.com
Telephone + 49 (0) 6442-208-0 / Fax + 49 (0) 6442-208-333
Elegance that's more than skin deep
engagingly attractive companion with a fashionably compact form factor.
Offered in smart black or lustrous silver and having a basic outline of
only 5 x10 cm, it's a camera you'll want to take with you wherever you
go. And its elegant exterior is complemented by cutting-edge techno-
logy : 6-megapixel capture, ultra short shutter delay, precise autofocus apixel capture, ultra short shutter delay, precise autofocus apixel capture, ultra short shutter delay, precise autofocus
fl exible, versatile fl exible, versatile
measurement, and a generous selection of scene modes make it ideal measurement, and a generous selection of scene modes make it ideal measurement, and a generous selection of scene modes make it ideal
for taking great pictures effortlessly. Whether you're on the beach, on a for taking great pictures effortlessly. Whether you're on the beach, on for taking great pictures effortlessly. Whether you're on the beach, on
stroll through narrow streets, or in your favorite restaurant – the C-Lux 1
will capture all those precious moments you want to remember in stun-
ning, true-to-life color and detail.
Camera LEICA C- LUX 1
Image type/format 1/2.5" CCD sensor with 6.37 million pixels (6 m pixels effective in 4:3 format).
Resolution In 4:3 format either 2816 x 2112, 2048 x1536, 1280 x 960 or 640 x 480 pixels,
2816 x 2112, 2048 x1536, 1600 x 1200 pixels. In Leica 3:2 format either 2816 x1880
or 2048 x1360 pixels. In 16:9 format either 2816 x1584 or 1920 x1080 pixels
Elegant and robust metal
(corresponds to HDTV standard).
Video sequences In 16:9 format with 848 x 480 ; in 4:3 format with 640 x 480 or in 4:3 format with
body available in black or
320 x 240 pixels at either 30 fps or 10 fps, duration of recording only limited by the
silver finish. capacity of the memory card. Recordings with sound.
Data recording Data formats : Still pictures JPEG (Fine/Standard) ; Video QuickTime Motion JPEG.
Storage media SD Memory Card and MultiMedia card (a 64 MB-SD card is supplied with the camera).
Film speed setting Either automatic or manual ISO 80, ISO 100, ISO 200 or ISO 400
(in high sensitivity mode 800 – 1600).
White balance Either automatic, for daylight, overcast sky, halogen light, two manual settings,
fine adjustment of white balance in a range of –1500 to +1500K in150 K steps
(not available for automatic setting).
Lens LEICA DC VARIO-ELMARIT f/2.8 – 5.6 / 4.6 – 16.8 ASPH. (corresponds to 28 – 102 mm
in 35 mm format), 3.6 x optical zoom. Change of focal length by conveniently located
zoom lever.
Optical image stabilizer 2 modes : either for exposure only or for exposure and monitor.
Focus range Normal : 50 cm – infinity ; Macro/Simple/Motion Picture : wide-angle 5 cm/
telephoto 30 cm infinity.
Focusing Autofocus, either normal or macro ; Autofocus modes/measurement range either
5 fields (full image area), faster autofocus with 3 fields (across the center) or with
1 central field, 1 field, or spot.
Exposure Exposure modes either simple mode, normal image or macro.
Exposure metering Multi-field measurement.
Exposure bracketing ± 2 EV in
Series exposures Either 3 fps or 2 fps at full resolution, max. 8 pictures with JPEG standard, max. 6
pictures with JPEG fine.
Shutter speed range In fully automatic mode : 8 – 1/2000 sec. Starry sky mode : 15, 30, 60 sec.
Flash Flash modes either automatic flash on with or without pre-flash (to combat red-eye),
manual flash on (fill-in flash) with or without pre-flash, SLOW for slower shutter speeds
(with pre-flash), flash off. Flash range (ISO set at Auto) 0.6 – 4.0 m (wide-angle),
0.3 – 2.0 m (telephoto), in high-sensitivity mode : 0.8 – 5.7 m (wide-angle), 0.8 - 2.8 m
(telephoto). Flash exposure bracketing ±2 EV in
Scene modes Portrait, soft skin, landscape, sport, night portrait, night landscape, self-portrait, food,
party, candlelight, fireworks, starry sky, snow, baby1, baby2, high sensitivity.
Toning effects Blueish, reddish, black and white or sepia.
LCD monitor 2.5" polycrystalline TFT color display with 207,000 pixels. Field of view : almost 100 %
Power LCD mode, wide-angle viewing mode.
Self-timer Either 2 s or 10 s countdown.
Power supply Lithium ion battery, 3.7 V, 1150 mAH or optional mains unit.
Ports USB 2.0 (Full speed), DC in (power supply) and AV out.
Printer compatibility PictBridge
Battery capacity (approx.) 320 pictures (CIPA Standard)
Dimensions (W x H x D) approx. 3
Weight approx. 4.6 oz without battery and memory card ; approx. 5.6 oz with battery and
SD memory card.
Scope of delivery Battery charger, battery, 64 MB SD memory card AV cable, USB cable, AC cable, wrist
strap, CD ROM with software (Adobe Photoshop Elements 4.0, Quicktime Movieplayer).
Accessories
Case real leather case with micro-velour lining. Cognac-brown Order No. 18 651,
Black Order No. 18 652, Red Order No. 18 653
Direct mains connector ACA-DC4 with mains cable (replacement)
Lithium-Ion-Battery LEICA BP-DC4 (replacement)
Digital Adapter Digital Adapter 2 for all Leica Televid Order No. 42 303
The extended focal length
range of the Leica wide-
angle lens is equivalent to
a 28-102 mm in the 35 mm
format.
Trademark of the Leica Camera Group / "Leica" and product names = ® Registered trademarks / © 2006 Leica Camera AG / All rights
to change construction, design and range reserved / Concept and Design : Heine/Lenz/Zizka, Frankfurt am Main / Image indication :
Product photography Tom Vack, Alexander Göhr / Photostory : Frank Rothe / Brochure order number : German 91249 / English 91250 /
US-English 91251 / French 91252 / Italian 91253 / Dutch 91254 / Japanese 91255 / Danish 91256 / Norwegian 91257/ Spanish 91258 /
Portuguese 91259 / 04/06/CGLW/B
The LEICA C-LUX 1 is an
e , brilliant
1 / EV steps.
3
1
/ EV steps.
3
1 1 1 1 5
/ x 2 / x / in
16 8 16

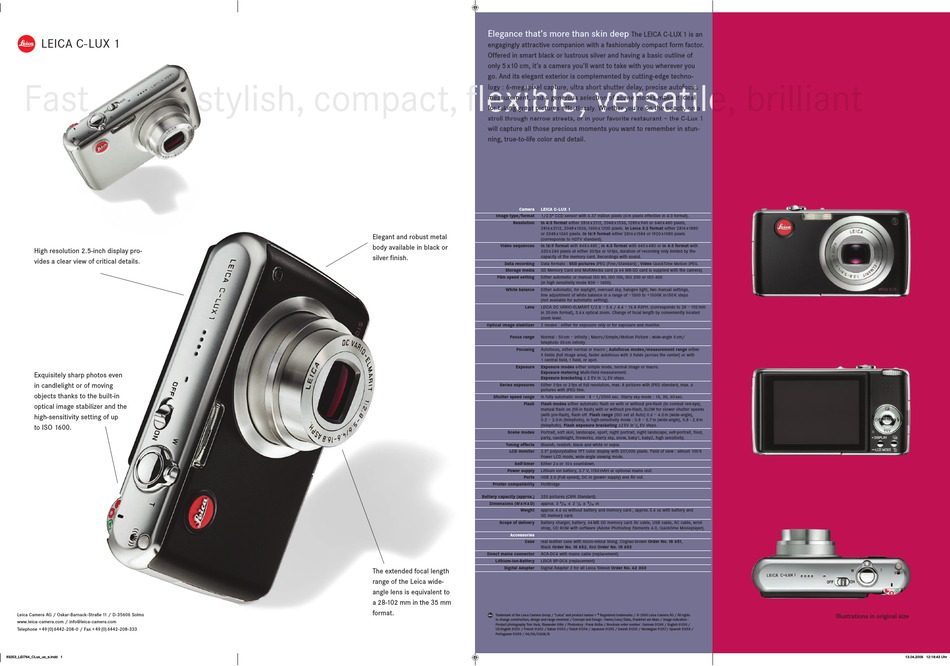

Illustrations in original size
