REMARK : This service manual explains the electrical differences between the
CD6000K/N1B/T1B/N1G/T1G (KI version) and CD6000F/N1B/T1B/N1G/T1G
(OSE version).
All other information is described in the service manual of the model
CD6000F/N1B/T1B/N1G/T1G (Code number : 3120 785 00060). The dispatch of
the parts for after sales service has to be referred to these service manuals, with
the first priority.
For this reason, please use these service manuals with referring to the model
CD6000 OSE service manual without fail.
The CD6000 KI is equal to the CD6000 OSE except the following electrical
changes (mechanical changes are not listed):
Main PCB
Position No.
2131, 2132
2115, 2116,
2223,2224,
2225,2226
2311, 2312,
2316, 2317
5110
3249, 3250,
3251,3252,
3711, 3712,
3713, 3714
Printed in The Netherlands
All manuals and user guides at all-guides.com
Service code
9965 000 08117
3300uF 25V
4822 124 80123
220uF 16V Silmic
4822 124 80958
470uF 16V Silmic
4822 146 10377
230V Transformer
--
Short circuited

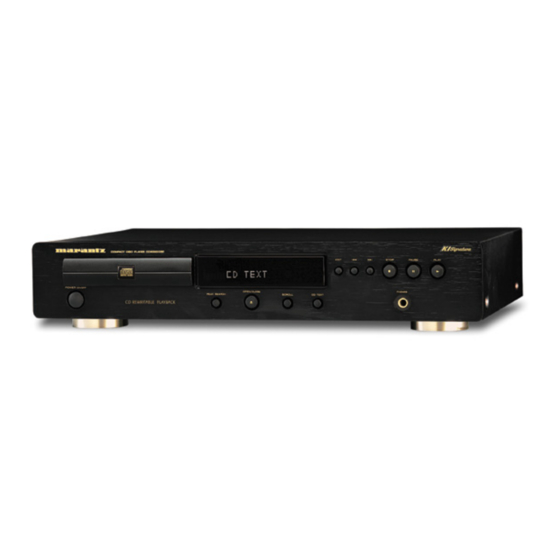

CD6000 KI
CD6000K/
Description
N1B/T1B
/N1G/T1G
CD Player
R
255W855020 ACT
3120 785 22570
First Issue:2001.04
Advertisement
Table of Contents
Related Manuals for Marantz CD6000 KI
Summary of Contents for Marantz CD6000 KI
- Page 1 For this reason, please use these service manuals with referring to the model CD6000 OSE service manual without fail. The CD6000 KI is equal to the CD6000 OSE except the following electrical changes (mechanical changes are not listed): Main PCB Position No.
- Page 2 All manuals and user guides at all-guides.com Transformer Connections Below the color coding and the connections for the transformer wires are given. Yellow Green 9161 12.7 V Grey Violet 9162 14.7 V Pink Black 9158 Orange 9163 14.7 V 9164 8.3 V White 9159...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Service CD6000 / N1B, /N1G, /T1B, /K1B, /K1G CD6000F / N1B, /N1G, /T1B, /U1B, /F1B, /F1N Manual CD Player CD6000 CD6000OSE TABLE OF CONTENTS TECHNICAL SPECIFICATIONS .................. 1 SERVICING HINTS ...................... 2 SERVICINE TOOLS ..................... 2 SERVICE MODE ...................... - Page 4 All manuals and user guides at all-guides.com Date: 10-May-01 Model: CD6000/CD6000OSE REF.NB MZ01-013 Page: SERVICE BULLETIN Subject: Circulation Application Correction of parts code number and description x for information (POS. NO 5). customer complaint in case of service Service Manual mandatory Int.ref: ....
- Page 5 All manuals and user guides at all-guides.com Date: 16-Mar-01 Model: CD6000,CD6000OSE REF.NB Page: MZ01-004 SERVICE BULLETIN Subject: Circulation Application x for information SV00xxxxxxxxxx Change of CD mechanism and CD loader customer complaint in XE00xxxxxxxxxx case of service XE01xxxxxxxxxx mandatory XE02xxxxxxxxxx Int.ref: ....
- Page 6 All manuals and user guides at all-guides.com Date: 16-Mar-01 Model: CD6000,CD6000OSE REF.NB Page: MZ01-003 SERVICE BULLETIN Subject: Circulation Application Problem with the function "DELETE PROGRAMMING". x for information SV00xxxxxxxxxx customer complaint in Problem with the emphasis CD playback. XE00xxxxxxxxxx case of service mandatory XE01xxxxxxxxxx Int.ref:...
- Page 7 All manuals and user guides at all-guides.com Date: 10-Aug-00 Model: CD6000,CD6000OSE REF.NB Page: MZ00-009 SERVICE BULLETIN Subject: Circulation: Application: Problem with the function "DELETE PROGRAMMING". x for information SV00xxxxxxxxxx customer complaint Problem with the emphasis CD playback. in case of service mandatory XE00xxxxxxxxxx Int.ref:...
- Page 8 All manuals and user guides at all-guides.com Date: 13-Jun-2003 Model: CD6000 Page: REF.NBR: MZ00-007 Rev S E R V I C E B U L L E T I N Subject: Circulation: Application: Recorded CD-R disc can not be played back x for information customer complaint See below...
- Page 9 All manuals and user guides at all-guides.com Date: 10-Aug-00 Model: CD6000,CD6000OSE REF.NB Page: MZ00-007 SERVICE BULLETIN Subject: Circulation: Application: x for information Recorded CD-R disc can not be playback. customer complaint in case of service mandatory Int.ref: ....[ PHENOMENON ] Recorded CD-R disc can not be played back very few.
- Page 10 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
-
Page 11: Technical Specifications
All manuals and user guides at all-guides.com 1. TECHNICAL SPECIFICATIONS Audio Characteristics Channels ............2 channels Sampling frequency (CD mode) ....... 44.1 kHz Quantization ........16-bit linear/channel Error correction .. Cross-interleave read solomon code (CIRC) D/A conversion ......... 1-bit linear/channel Wow &... -
Page 12: Servicing Hints
All manuals and user guides at all-guides.com 2. SERVICING HINTS 3. SERVICE TOOLS Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max. - Page 13 All manuals and user guides at all-guides.com WARNING WAARSCHUWING All ICs and many other semiconductors are susceptible to Alle IC´s en vele andere halfgeleiders zijn gevoelig voor electrostatic discharges (ESD). Careless handling during electrostatische ontladingen (ESD). repair can reduce life drastically. Onzorgvuldig behandelen tijdens reparatie kan de levensduur When repairing, make sure that you are connected with the drastisch doen vermindern.
-
Page 14: Service Mode
All manuals and user guides at all-guides.com 4. SERVICE MODE 1. How to enter into the Service Mode Turn the power on while pressing [PLAY]+[OPEN/ CLOSE] buttons together. The display shows “model number”, “microprocessor ver- sion” and “mode”. C D 6 0 : 1 0 P 0 0 Mode number Microprocessor version Model number... -
Page 15: Microprocessor And Ic Data
All manuals and user guides at all-guides.com 5. MICROPROCESSOR AND IC DATA 7600 PD78076 MAIN 7800 PD780204 DISPLAY 7405 SAA7372GP 7500 TDA1302T Pin No. Port Name Function In/Out Active To/From Description Pin No. Port Name Function To/From Description Active SYMBOL DESCRIPTION SYMBOL DESCRIPTION... -
Page 16: Block Diagram
All manuals and user guides at all-guides.com 6. BLOCK DIAGRAM DIODE AMP & LASER SUPPLY TDA 1302T (DALAS) SIGMA- DELTA DAC WITH 8X FIR FILTER H.D.A.M. CIRCUIT LOADER 1210/41 DIGITAL SERVO HEADPHONE CONTROLLER & C.D. DECODER CD6000 : use SEPARATING NJM2114D X 2 LOGIC SAA 7372... -
Page 17: Wiring Diagram
All manuals and user guides at all-guides.com 7. WIRING DIAGRAM TRAFO AUDIO AMPLIFIER PCB HF Amp HDAM PCB CD Mecha L1210/41 (OSE version only) Optical Out Headphone Jack CONTROL (F/K version only) (Beige = GL) (Black = BL) * PROVISION ON LAYOUT Front PCB... -
Page 18: Schematic Diagram And Parts Location
All manuals and user guides at all-guides.com 8. SCHEMATIC DIAGRAM AND PARTS LOCATION AUDIO AMPLIFIER PCB AF PART 0002 I8 3226 E10 6119 K6 0003 B12 3227 C10 6120 K6 0004 I8 3228 G10 6121 K8 0005 E12 3229 C11 6122 J8 1111 J2 3230 G11... - Page 19 All manuals and user guides at all-guides.com AUDIO AMPLIFIER PCB COMPONENT SIDE VIEW...
- Page 20 All manuals and user guides at all-guides.com AUDIO AMPLIFIER PCB COPPER SIDE VIEW...
- Page 21 All manuals and user guides at all-guides.com AUDIO AMPLIFIER PCB SERVO PART 1217 D6 3427 D5 1300 B10 3428 D5 1303 F10 3429 D6 AF Amp PCB - servo part 100n 1400 A1 3430 A2 SLSW 1401 E2 3432 A4 To 1602 on Control PCB 2446 TURNTABLE...
- Page 22 All manuals and user guides at all-guides.com CONTROL PCB 1600 D9 2600 E4 2604 A5 3601 A8 3606 E5 3612 C1 3616 C3 3620 E3 3626 E8 3637 D8 3650 C7 3654 C7 3658 C6 3662 C6 3666 C6 3670 B5 3690 E4 4603 F8 4607 F7...
- Page 23 All manuals and user guides at all-guides.com CONTROL PCB COMPONENT SIDE VIEW...
- Page 24 All manuals and user guides at all-guides.com HDAM PCB COMPONENT SIDE VIEW...
- Page 25 All manuals and user guides at all-guides.com HDAM PCB 0003 B10 2751 E9 3751 C10 3755 C10 3759 C9 3763 C9 3767 D10 3771 D10 3775 D9 3779 E9 3783 E9 3787 E10 3791 E9 6751 C9 6755 D10 6763 D9 7751 B10 7755 C10 7759 C9...
- Page 26 All manuals and user guides at all-guides.com FRONT PCB COMPONENT SIDE VIEW FRONT PCB 1801 B2 1881 B6 1884 C6 1887 C6 2805 E7 2808 F7 2811 E1 3810 C7 3813 D7 3816 E6 3821 E2 3824 E2 3881 B7 3884 C6 3887 C7 4880 F5...
- Page 27 All manuals and user guides at all-guides.com HF AMP PCB HF AMP PCB COMPONENT SIDE VIEW 1500 C1 1501 A1 2500 A4 1501 2501 A4 560p 2501 2502 D3 2503 C2 0.0V O6 2 2504 C4 O6R2 2505 C2 0.0V O5 5 2506 D4 O5R1...
-
Page 28: Exploded View And Parts List
RT-01T CHASIS /K GLD 3139 117 88450 AL FRONT CD6000 GL W/OPT 4822 454 11825 BADGE MARANTZ 4822 459 05325 CABINET FRONT BLK 4822 459 05334 CABINET FRONT GL 4822 450 10684 WINDOW DISPLAY 4822 442 01888 COVER TRAY BLK... - Page 29 All manuals and user guides at all-guides.com...
-
Page 30: Electrical Parts List
All manuals and user guides at all-guides.com 10. ELECTRICAL PARTS LIST CD LOADER EXPLODED VIEW (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) POS. VERS. POS. VERS. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR... - Page 31 All manuals and user guides at all-guides.com (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) VERS. POS. VERS. POS. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR (FOR PCS) (FOR PCS) 2442 4822 124 40433 47 F 20% 25V 3238 4822 051 10102 1K00 2% 0.25W...
- Page 32 All manuals and user guides at all-guides.com (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) VERS. VERS. POS. POS. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR (FOR PCS) (FOR PCS) 3332 4822 051 20471 470R00 5% 0.1W 3456 4822 117 11383 12K 1% 0.1W...
- Page 33 All manuals and user guides at all-guides.com (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) VERS. VERS. POS. POS. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR (FOR PCS) (FOR PCS) 4422 4822 051 20008 0R00 JUMP.
- Page 34 All manuals and user guides at all-guides.com (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) VERS. VERS. POS. POS. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR (FOR PCS) (FOR PCS) 7711 /N/T/K 4822 209 31153 NJM2114D 3668 4822 051 20101 100R00 5% 0.1W...
- Page 35 All manuals and user guides at all-guides.com (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) VERS. VERS. POS. POS. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR (FOR PCS) (FOR PCS) 3778 F/N,F/T,F/U,F/F 4822 051 20333 33K00 5% 0.1W FRONT CIRCUIT BOARD 3779 F/N,F/T,F/U,F/F...
- Page 36 All manuals and user guides at all-guides.com (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) (VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST, ** :EUROPE) VERS. VERS. POS. POS. PART NO. PART NO. DESCRIPTION DESCRIPTION COLOR COLOR (FOR PCS) (FOR PCS) HF AMP CIRCUIT BOARD 1500 4822 267 10871 CONN.17POL.
