Users and Installation Manual: Water Pressure Sensor (PREWIE02)
Water Pressure
Sensor
SKU: PREWIE02
Version: 1.0.0
Product Description

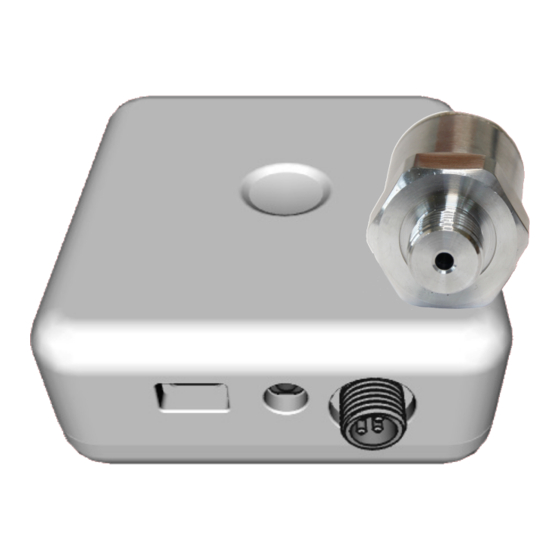

The Aqua-Scope pressure sensor records the temperature and pressure of the water. The device consists
of two parts:
Main housing for signal processing and radio communication with battery compartment.
The external sensor head is connected to the water pipe. The stainless steel sensor head has a
silicon sensor mounted in silicone oil for highly accurate and low-noise pressure measurements in
a wide operating range. The measuring range for pressure is between 1 and 10 bar. The sensor
values are converted into digital values directly in the measuring head to suppress interference
from the connection to the main housing. In addition, the temperature of the liquid medium is
measured directly at the stainless steel diaphragm and is therefore very precise.
The sensor can send an alarm message if freely definable threshold values are exceeded or not reached.
The sensor's polling frequency can be set between 0.1 second and several minutes and defines the
battery life. For a measuring interval of 1 second, a battery life of approx. 10 years is calculated.
The device connects to WIFI. Your mobile app help setting up the connection and gives access the data
and presents current and historical values and events.
The device is powered either via an external power supply with USB-C power supply unit or via an
optional internal ER26500 battery (Bobbin Cell C).
Both the sensor head (IP67) and the main housing (IP65) are waterproof and can be used outdoors or in
particularly humid and/or dirty environments.
Installation
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com
Advertisement
Table of Contents
Related Manuals for Aqua-Scope PREWIE02
Summary of Contents for Aqua-Scope PREWIE02
- Page 1 SKU: PREWIE02 Version: 1.0.0 Product Description The Aqua-Scope pressure sensor records the temperature and pressure of the water. The device consists of two parts: Main housing for signal processing and radio communication with battery compartment. The external sensor head is connected to the water pipe. The stainless steel sensor head has a silicon sensor mounted in silicone oil for highly accurate and low-noise pressure measurements in a wide operating range.
-
Page 2: Reset To Factory Default State
8. Please check all three connections for some seconds that there are no leaks. 9. Attach the Aqua-Scope to a suitable location using double-side tape and plug the sensor head into the water-proof screwable terminal of the main device. Attach the wired flood sensor to the small round terminal if desired. -
Page 3: Functions And Usage
Follow the instructions on the app. If you don’t want to use the Aqua-Scope Mobile App or if you want to integrate the device into your own monitoring system you can also setup and operate the device using any standard web browser. Please refer to the Aqua-Scope Developers Manual for more information, available at www.aqua-scope.com. -
Page 4: Led Signals
USB-C power cable and power supply 19 mm wrench to unfasten and fasten the 3/8 Inch connections of the pipe connector Manual Information related to Drinking Water Directive EU 98/83/EC Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com... -
Page 5: Technical Data
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from Aqua-Scope. We reserve the right to make any alterations that arise as the result of technical development. -
Page 6: Declaration Of Conformity
Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.aqua-scope.com/ce Español Por la presente, Aqua-Scope Technology OÜ declara que el tipo de equipo radioeléctrico PREWIE02 es conforme con la Directiva 2014/53/UE. El texto completo de la declaracin UE de conformidad está disponible en la direccin Internet siguiente: www.aqua-scope.com/ce... -
Page 7: Disposal Guidelines
Português O(a) abaixo assinado(a) Aqua-Scope Technology OÜ declara que o presente tipo de equipamento de rádio PREWIE02 está em conformidade com a Diretiva 2014/53/UE. O texto integral da declarao de conformidade está disponível no seguinte endereo de Internet: www.aqua-scope.com/ce Română... - Page 8 If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging health and well-being. Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
