Users and Installation Manual: LoRaWAN Flood Sensor (FLOLWE01)
LoRaWAN Flood Sensor
SKU: FLOLWE01
Version: 1.0.0
Product Description
The Flood Sensor detects the presence of water on its sensor pins and sends an alarm message to a
LoRa network when triggered. In addition, the device will regularly report the ambient temperature and
humidity and send an alarm when the readings exceed thresholds that can be set for both humidity and
temperature.

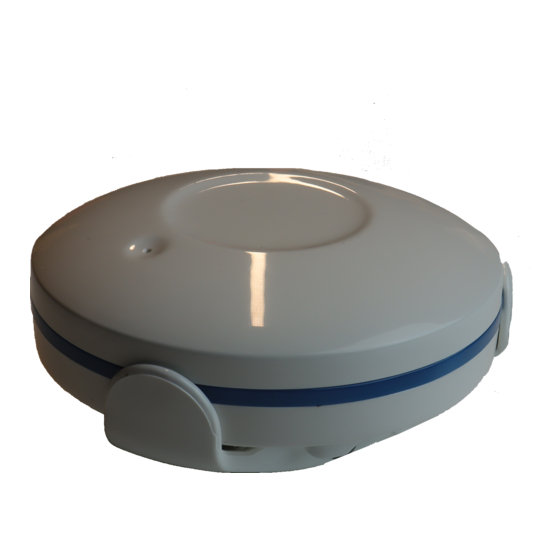

The device itself is designed to sit on the floor, where 3 brass telescopic pins can detect water on both
hard floors (tiles) and soft carpets. The unit comes with a mounting bracket. It can be screwed or taped
to the wall or floor. When the main sensor is in the bracket, a super-flat sensor pad connected by wire to
the bracket is used to detect water.
When an alarm is active, the unit emits a sound and a red LED flash. The unit is powered by an internal
CR123 battery that lasts approximately 10 years in normal operation.
Pairing with the LoRaWAN Network
Please register the device with its three keys at your LoRaWAN server before you start using it. The
Device EUI is printed on the device. Enter this key and your registered email address at
https://aqua-
scope.com/lora
to obtain the missing keys. The email address is the account email from Aqua-Scope
Shop purchases or the data is provided by your point of sale.
Connecting to Aqua-Scope Monitor
The sensor can be connected directly to an Aqua-Scope monitor using the LoraP2P protocol. To switch
the sensor to LoraP2P, press and hold the button when the battery is inserted. When you see three red
flashes, release the button. The device is now in LoraP2P mode. If you do this again, you will see 3 *
green blinking and the device is back in LoRaWAN mode. Once in LoraP2P mode, please scan the QR
code with your Aqua-Scope app to connect the device to your Aqua-Scope monitor.
Copyright © 2023 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com
