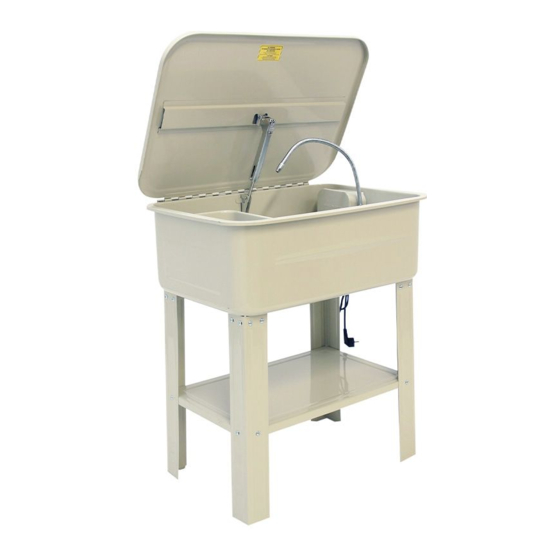

George Tools 75 Liter Parts Washer
OPERATING INSTRUCTIONS AND PARTS
MANUAL
MODEL: GT9500008
Please read and save these instructions.
Read through this owner's manual carefully before using product. Protect yourself and others by
observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future
reference.
Advertisement
Table of Contents
Related Manuals for GEORGE TOOLS GT9500008
Summary of Contents for GEORGE TOOLS GT9500008
- Page 1 V1701 George Tools 75 Liter Parts Washer OPERATING INSTRUCTIONS AND PARTS MANUAL MODEL: GT9500008 Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property.
-
Page 2: Table Of Contents
TABLE OF CONTENTS ........................TABLE OF CONTENTS ......................... SAFETY INFORMATION ..........................SPECIFICATION ....................... ELECTRICAL CONNECTIONS ............................ ASSEMBLY ........................... OPERATION ....................ENVIRONMENTAL PROTECTION ..........................PARTS DIAGRAM GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. -
Page 3: Specification
SAFETY PRECAUTIONS ALWAYS keep children away. All visitors should be kept a safe distance from the work area, especially whilst operating the machine. ALWAYS maintain machine in top condition. Keep washer clean for the best and safest performance. Follow maintenance instructions. ALWAYS ensure the switch is off before plugging in to mains. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. Connecting it to any other power source may cause damage. This product may be fitted with a non-rewireable plug. -
Page 5: Assembly
ASSEMBLY 6. Route the power cord of the Pump Box Assembly through the rectangular opening on the side of the Tub Unit with the Inlet Filter downward and facing inward. The Power Switch is visible through the rectangular opening. Hook the raised offset tab on the rear of the Pump Box Assembly over the bottom edge of the rectangular opening (Figs 4-5). -
Page 6: Operation
OPERATION 1. Fill only with a non-flammable degreaser or cleaning agent, to just below the level of the parts shelf. DO NOT fill with flammable solvents such as paraffin, thinners, etc. 2. Open the lid, switch the pump on and hold the part to be cleaned under the nozzle, slowly rotate the component until clean. -
Page 7: Parts Diagram
PARTS DIAGRAM PARTS LIST N.O. DESCRIPTION N.O. DESCRIPTION N.O. DESCRIPTION Spring Washer Spilgot Small Parts Container Screw Plastic washer Spring Pin Grommet Power Cable & Plug Lid Stay c/w Fusible Link Pump Housing Parts Cleaning Tray Filter Switch Box Spring Washer On/Off Switch Flexible Metal Tube 'O'-Ring...
