V1701

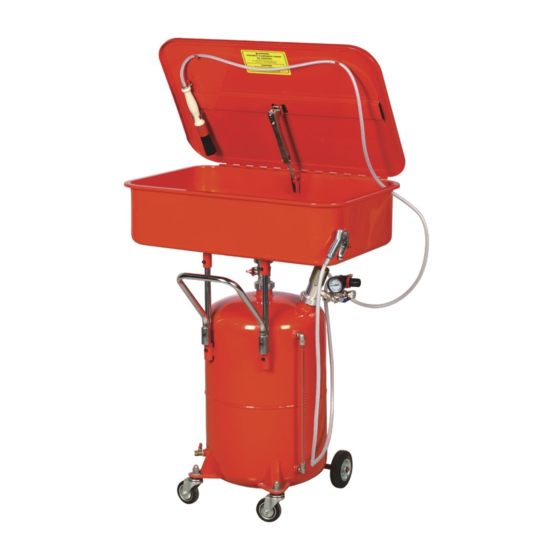

George Tools Mobile parts washer
with reservoir 65 Liter
OPERATING INSTRUCTIONS
AND PARTS MANUAL
MODEL: GT9500011
Please read and save these instructions.
Read through this owner's manual carefully before using product. Protect yourself and others by
observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future
reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT9500011 and is the answer not in the manual?

Questions and answers

Related Manuals for GEORGE TOOLS GT9500011

Summary of Contents for GEORGE TOOLS GT9500011

  • Page 1 V1701 George Tools Mobile parts washer with reservoir 65 Liter OPERATING INSTRUCTIONS AND PARTS MANUAL MODEL: GT9500011 Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property.
  • Page 2 SAFETY Wear protective Refer to Wear eye Wear protective Wear a mask Warning instructions protection gloves clothing WARNING! Ensure Health & Safety, local authority, general workshop practice regulations are adhered to when using equipment. WARNING! Installation site must be equipped with suitable fire extinguishers (water must not be used) and escape routes.
  • Page 3 SAFETY Remove ill fitting clothing, ties, watches, rings and other loose jewellery, contain long hair and wear appropriate protective clothing. Maintain correct balance and footing. ensure the floor is not slippery and wear non-slip shoes. Keep non-essential persons away from the working area. In case of fire in tank, do not attempt to move unit or remove parts from tank.

  • Page 4: Specification

    SPECIfICATION overall Height: 1040mm Tank Height: 180mm Tank Width: 485mm Maximum length: 775mm Supply: Operating Pressure: 40-60psi Air Consumption: 6cfm Air Inlet Ø: 1/4” Weight: 38kg Max. Working Capacity: 50ltr ASSEMBLY 4.1. As you unpack the product, check contents. Should there be any damaged or missing parts contact your supplier immediately.

  • Page 5: Air Supply

    ASSEMBLY 4.6. Mount the cleaning brush in its stowage position on the underside of the lid over to the left hand side. Feed the brush tube (T) through the hole in the right-hand side of the tank and connect it to outlet (R) on the head of the regulator /safety valve assembly.

  • Page 6: Operation

    OPERATION 6.1. Filling the unit with cleaning fluid. 6.1.1. Make sure that the drain cock at the base of the unit is closed as shown at (F) in fig.6. 6.1.2. Turn the lever (d) to the right which is the air discharge position.

  • Page 7: Maintenance

    OPERATION 6.5. Washing by dipping. 6.5.1. Open the gate valve (e) and turn lever (d) to the left as shown in fig.10. The cleaning fluid will rise from the reservoir into the tank and will be kept in constant motion by the air passing through the liquid itself.

  • Page 8: Parts Information

    PARTS INFORMATION NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of product.
  • Page 9 PARTS INFORMATION Item Description Item Description VALVE COMPLETE (c/w TANK TUBE) BENT FILTER GRID SCREW FLAT FILTER GRID SCREW CIRCULAR FILTER SHROUD UPPER TANK SEAL UPPER TANK SUPPORTS SEAL GUN CONNECTOR KIT SCREW LEVEL IND CONNECTOR X 2 C/W SIGHT GLASS UNION SEAL KIT (FLOW REGULATOR) RETAINING RING...
