Latte iPearl 16GB User Manual

Latte ipearl 16gb: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

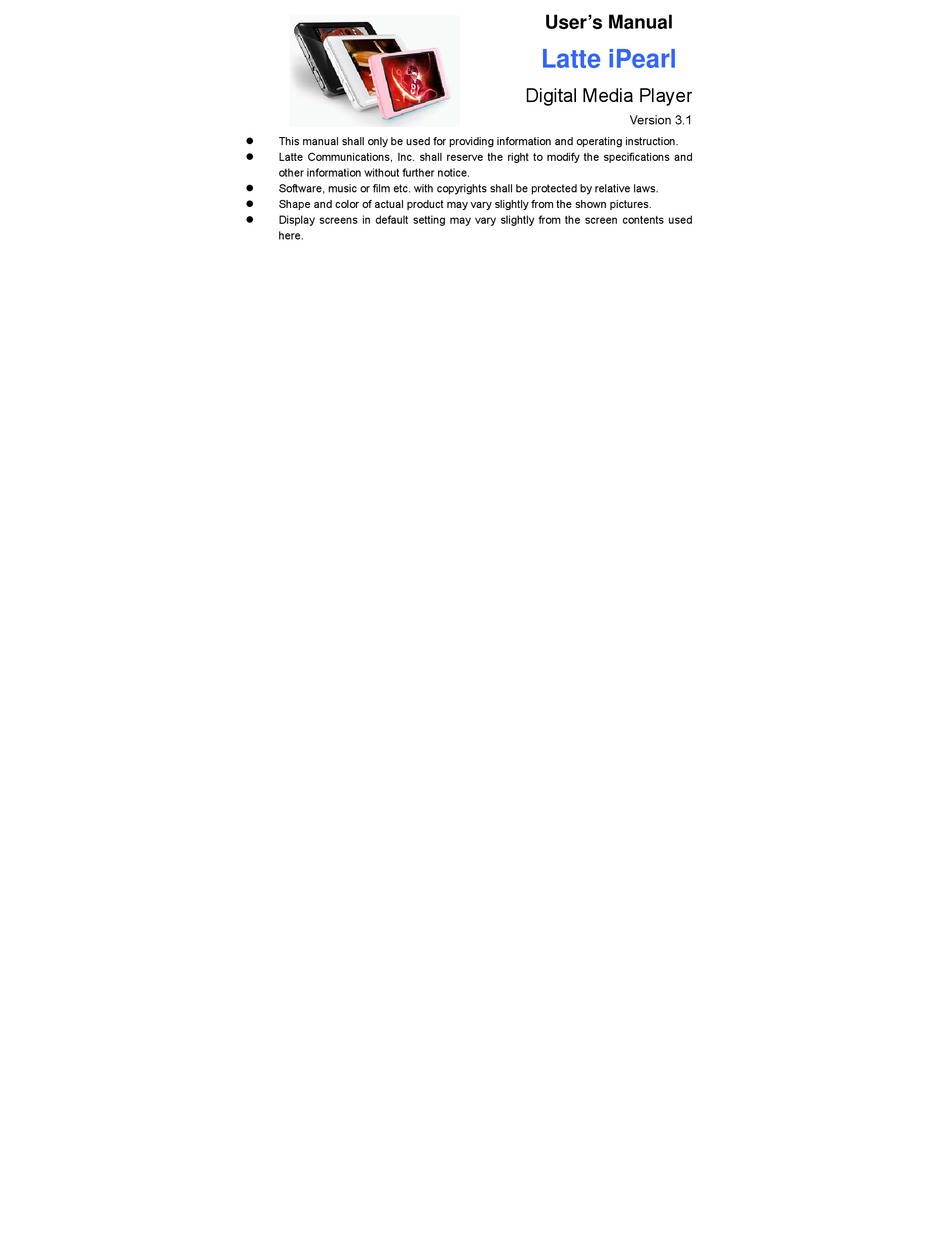

This manual shall only be used for providing information and operating instruction.
Latte Communications, Inc. shall reserve the right to modify the specifications and
other information without further notice.
Software, music or film etc. with copyrights shall be protected by relative laws.
Shape and color of actual product may vary slightly from the shown pictures.
Display screens in default setting may vary slightly from the screen contents used
here.
User's Manual
Latte iPearl
Digital Media Player
Version 3.1

Advertisement

Table of Contents
loading

Related Manuals for Latte iPearl 16GB

Summary of Contents for Latte iPearl 16GB

  • Page 1  This manual shall only be used for providing information and operating instruction.  Latte Communications, Inc. shall reserve the right to modify the specifications and other information without further notice.  Software, music or film etc. with copyrights shall be protected by relative laws.

  • Page 2: Table Of Contents

    01 Contents Main Functions..……………………………………………………………………………………02 Precautions…………………………………………………………………………………………03 About the Player.…………………………………………………………… Display Description ………………………………………………………… Basic Operations………………………………………………………………… System Menu………………………………………………………… Music Play………………………………………………………………………… Video Play………………………………………………………………… Picture Browse……………………………………………………………………………………..22 TEXT Browse.……………………………………………………………………………………...24 Voice Record…………………………………………………………………………… Media Library..……………………………………………………………………………………...27 FM Radio…………………………………………………………………………………………...28 Other functions..……………………………………………………………………………………31 USB and Charge………………………………………………………………… Firmware Update………………………………………………………………………… Troubleshooting…………………………………………………………………… Technical Specifications………………………………………………………… ……………………..05 …………………..06 …...

  • Page 3: Main Functions 02

    Main Functions 02  2.8-inch TFT LCD QVGA (resolution: 320*240)  Supports MP3 / WMA / FLAC / APE / AAC music formats. Supports MS PLAY FX  Supports AVI, RM, RMVB, FLV, WMV  Supports picture auto browse in JPEG/BMP/GIF format ...

  • Page 4: Precautions

    03 Precautions Do not use the player in extremely hot, cold, dusty or damp environments. Do not drop the player when using it. The service life of the battery is subject to the use of the player, manufacturer and production date. Please charge the battery in the following instances: A.
  • Page 5 Please check the trouble shooting section of this manual if experiencing problems. Latte Communications reserves the right to improve the product. Different software and hardware versions may influence the product performance and functions.

  • Page 6: About The Player

    05 About Player...

  • Page 7: Display Description 06

    Display Description 06 Menu Music play Video play Record...

  • Page 8: Basic Operations

    07 Basic Operations  Power On/Off - Power On: Push the power switch toward the red sign and hold for 3 seconds. The player will start and display the main menu. - Power Off: Push the power switch toward the red sign and hold for 3 seconds. ...
  • Page 9  A-B Repeat In the Music play mode, press and hold the ESC key for 2 seconds to enter the A-B Repeat mode. An “A” will be displayed in the lower right hand corner of the screen, which confirms the starting repeat point, then press and hold the ESC key for 2 seconds again to display “B”. This confirms the ending repeat point.
  • Page 10 09 Basic Operations  Volume Control In the Music or Video play mode, the volume can be increased or decreased by pressing the V+ or V- key to control the volume.  F/FWD & F/REV In the Music or Video play mode, press and hold the fast-reverse through the file.

  • Page 11: System Menu 10

    The main menu is displayed when the player is turned on. Press the move to the menu you want to enter into. (Music, Video, Photo, Text, Other Functions, Record, Explorer, Settings). Press the key to enter into the function menu. Press the ESC key in any submenu to exit to the previous menu or directory.
  • Page 12 11 System Menu 3. Light Mode: All Dark or Penumbra option can be selected when the player goes into energy-saving mode. Adjusting these settings will impact battery duration. 4. Display status: Hide or Display option can be selected. The information on the screen will be displayed or hidden if this option is selected.
  • Page 13  Language Select the desired language for the player. Press the language you want and press the key to confirm. Press the ESC key to return to the previous menu.  System Information This option displays background information about the player including: software revision number, available memory status on the player and optional external memory card if inserted.

  • Page 14: Music Play

    13 Music Play Detailed Operation 1. From the Main Menu, press the key to select [Music] option. Press the key to enter the Music menu. The Music menu allows you to display your music in the following ways: Current Play (if a song is already playing), All Music, By Artist, By Album, Genre, My Favorite, Record (voice recordings) or by Directory Listing.
  • Page 15 Music Play 14 2. During Music Play mode, press and hold the ESC key for 2 seconds to enter the A-B Repeat mode. An “A” will be displayed in the lower right hand corner of the screen, which confirms the starting repeat point. Then press and hold the ESC key for 2 seconds again to display “B”.
  • Page 16 15 Music Play 5. In the “All Music” listing menu, press the key to select your desired music file. Press the key and hold for 2 seconds. The “Add to Favorite” and “Exit” option will be shown. Use the keys to select the “Add To Favorite” option. Press the key to confirm and add file to your favorite list.
  • Page 17 2. Repeat: Repeats the selected single song. 3. ALL: Plays all songs in the current folder once. 4. ALL Repeat: Plays and repeats all files in the current folder. 5. Intro: Plays all songs in the current folder for the first 10 seconds in sequence (After listening, it will return to the normal play mode) 2.
  • Page 18 17 Music Play 8. Display: 4 display options are available 1. ID3: Displays the creation information of the playing music in the top right hand quadrant of the display. 2. Lyric: This player support “LRC” type lyric files. Lyrics can be displayed isochronously while playing music.
  • Page 19 10. Frequency Set: Press the key to enter into the frequency set interface. Press the key to select the frequency and then press the V+ or V- key to adjust the frequency. After adjusting the frequency you want to use for FM transmission, press key to confirm your setting.

  • Page 20: Video Play 19

    Video Play 19 From the Main Menu, press the key to select [Video] option and press the key to enter the video menu. 1. Click into the Video file explorer, press the desired file to play. When the file is selected, press the to exit to the previous menu or directory..
  • Page 21 4. During video playback, short press the key for the option display and press the key to select an option and press the confirm. 1) Memory Play: In the Video Play mode, when the movie is stopped, the player will automatically remember the movie stop point.
  • Page 22 Video Play 21 Note 1. This player can only supports RM/RMVB video files (up to 720 X 576 resolution), AVI files (up to 800 X 480 resolution), FLV/WMV video files (up to 720 X 480 resolution). Video files encoded in greater resolution may not be playable on this device and may report a “File Format”...

  • Page 23: Picture Browse

    In the main menu, press key to select [Photo] option, press the key to enter the photo interface. 1. Click into the photo file explorer, press key to navigate and select your desired file to display. When the file is selected, press the commence playback, press the ESC key in any submenu to exit to the previous menu or directory.
  • Page 24 Picture Browse 23 3) Zoom In: Zooms in on the image. (Not available if image resolution is smaller than display) 4) Zoom Out: Zooms out of the image when Zoom in has been used. 5) Browse (Slideshow): Selects time to slide show images in current folder. This feature must be turned off to access the above display options.

  • Page 25: Text Browse

    In the Main Menu, press the key to select [eBook] option. Press the to confirm and enter the eBook interface. 1. Click into the eBook file explorer, press the key to navigate and select your desired file. When the file is selected, press the key to commence eBook display.
  • Page 26 TXT Browse 25 5) Set Font: Set the font size to Small, Med or Large. 6) Set Color: Sets the font color to Green, Red or Blue. 7) Browsing Mode: Sets the browse mode to Auto Mode or Manual Mode. 8) Auto Time Setting: Sets the time the next page will be displayed automatically.

  • Page 27: Voice Record

    26 Voice Record In the Main Menu, press the key to select [Record] option. Press the to confirm and enter the Recorder interface. 1. The recorder will start in “Ready” mode to begin recording. Push the power switch shortly toward the red sign to start voice recording.

  • Page 28: Media Library 27

    Media Library 27 In the Main Menu, press the key to select [Explorer] option. Press the key to confirm and enter the Explorer interface. 1. Play file In the explorer, press the key to select your desired folder and short press key to enter the folder.

  • Page 29: Fm Radio 28

    1. From the Main Menu, use the key to select [Radio] option. Press the key to confirm and enter the radio interface. Press the ESC key to exit to the previous menu. 2. The volume can be increased or decreased by pressing the V+ or V- key to control the volume.
  • Page 30 29 FM Radio  Preset Mode: Press the key to skip to the next or previous saved stations.  Save Channel: Saves the current radio station.  Delete Channel: Deletes the current station from the saved list.  Stereo Switch: Turns on or off the stereo option. ...
  • Page 31 FM Radio 30  The recorded files will be saved under “Record” folder in the Music menu. Note: This player uses the earphones as the Antenna for FM reception. The earphones are required to be plugged in for a clear FM reception. Please make sure that the earphone is correctly connected to the player.

  • Page 32: Other Functions

    31 Other Functions Extra features of the player include a Stop Watch and Calendar. From the Main Menu, press the key to select [Other Function] option. Press key to confirm and enter the Other Function interface. 1. Stop Watch: Press the key to select the Stopwatch option and press the key to confirm and enter...

  • Page 33: Usb And Charge

     USB Display Mode Please connect the player to the PC via the USB data cable included (for Windows 2000 above, you do not need driver installation). The player will display an “Online” mode icon. The player will be displayed in the “My Computer” window and be assigned the next available drive letter by your PC.

  • Page 34: Firmware Update

    33 Firmware Update 1. Users can download the latest firmware in the download center of our website. (http://www.lattefone.com). 2. After you download the latest firmware, please copy and transfer the file from your PC to your player via the USB data cable. Disconnect the player and turn on the player.
  • Page 35 Firmware Update 34 4. The updating process may take up to 5 minutes. Once the updating process is finished, the player will automatically turn off and turn on. Note: During the installation, DO NOT TURN OFF THE PLAYER.

  • Page 36: Troubleshooting

    35 Troubleshooting 3. Confirm the earphones are properly  The player cannot be turned on. connected. Check if the battery is low. Recharge the  player if required by connecting to your PC 1. Check to ensure earphone plug is clean; with the USB cable.
  • Page 37   Incorrect language displayed. This player cannot play audio files that are Please make sure that you have selected copy protected. Please ensure that only the correct language. Set language in files that contain no copy protection are (Setting) =>...

  • Page 38: Technical Specifications

    37 Technical Specifications System Capacity 8 GB / 16GB internal memory Display Screen Type 2.8-inch TFT, resolution: 320*240(QVGA) Input/ High speed USB 2.0 mini socket Output Earphone 3.5mm Stereo socket Formats MP3, WMA, OGG, FLAC, ACC, APE Audio Playback MAX Output (L) 10mW +(R) 10mW (32Ω) Formats AVI, RM, RMVB, FLV...
  • Page 39 For product information or technical support, please visit www.lattefone.com or contact us at support@latteglobal.com For Genuine Latte Accessories, please visit www.lattezone.com...
