This manual shall only be used for providing information and operating instruction.
Latte Communications, Inc. shall reserve the right to modify the specifications and other
information without further notice.
Software, music or film etc. with copyrights shall be protected by relative laws.
Shape and color of actual product may vary slightly from the shown pictures.
Display screens in default setting may vary slightly from the screen contents used here.

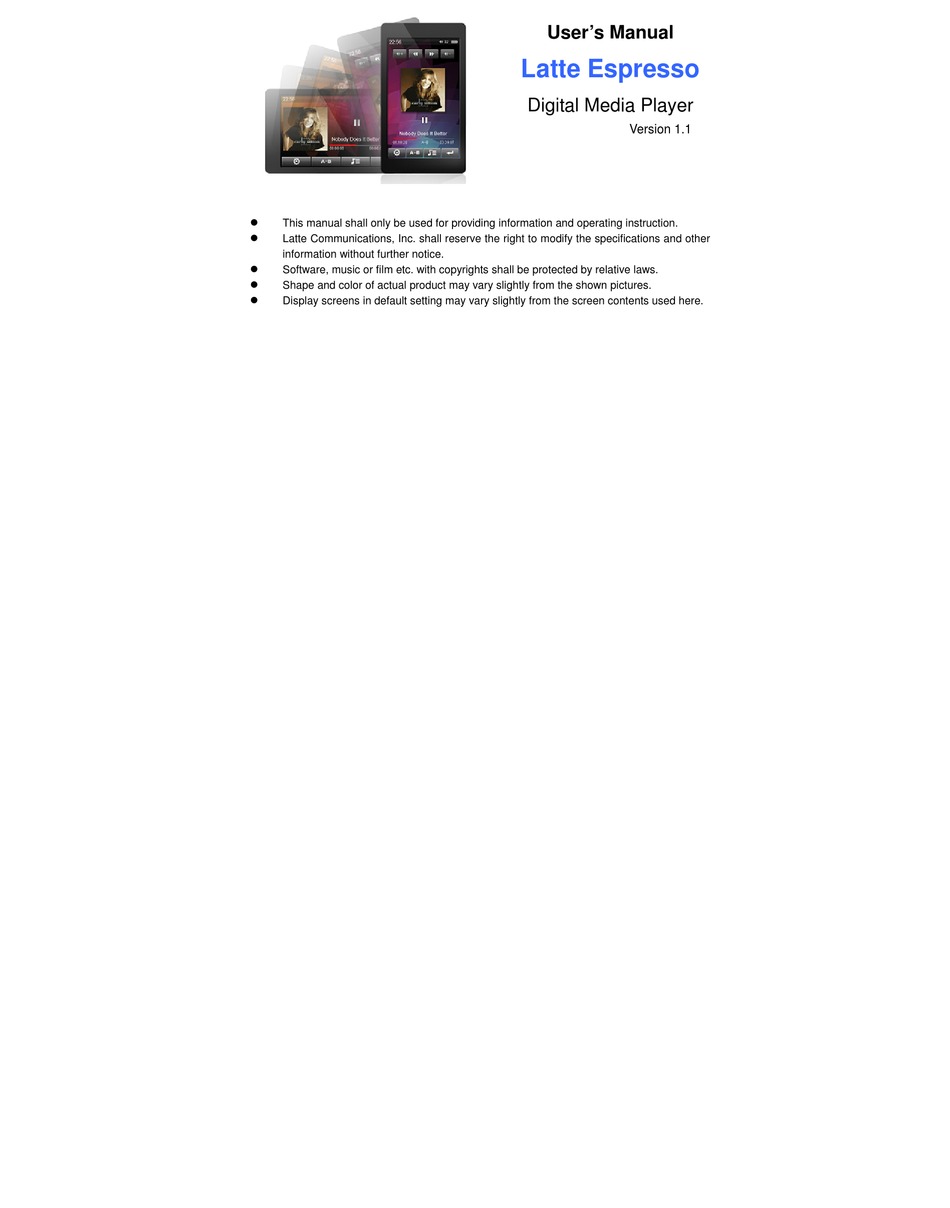

User's Manual
Latte Espresso
Digital Media Player
Version 1.1
Advertisement
Table of Contents
Related Manuals for Latte Espresso 16GB
Summary of Contents for Latte Espresso 16GB
- Page 1 This manual shall only be used for providing information and operating instruction. Latte Communications, Inc. shall reserve the right to modify the specifications and other information without further notice. Software, music or film etc. with copyrights shall be protected by relative laws.
-
Page 2: Table Of Contents
Contents 01 Main Functions…………………………………………………………………………….…………….02 Precautions……………………………….…………………...…………………………….….……….03 About the Player……………………………………………………….……………………..………...04 Display Description………………………………………………………………………….……….…05 Basic Operations………………………………………………………………………………………..07 System Menu…………………………………………………………………………….……………...09 Music Play………………………………………………………………………...……………………..12 Video Play………………………………………………………………………………………………..17 Picture Browse…………………………………………………………………………………………..19 TXT Browse……………………………………………………………………………………………...20 Record……………………………………………………………………………………………………22 FM Radio…………………………………………………………….…………………………………..23 Others…………………………………………………………………..………………………………..25 USB and Charge…………………………………………………………...…………………………...27 Firmware Update………………………………………………………………………………………..28 Troubleshooting…………………………………………………………………………………………29... -
Page 3: Main Functions
02 Main Functions 3.0‘ Touch TFT LCD (resolution: 420*240) Supports MP3 / WMA / FLAC / APE / AAC music formats. Supports MS PLAY FX Supports AVI, RM, RMVB, FLV, WMV Supports touch screen with haptics ... -
Page 4: Precautions 03
Please check the trouble shooting section of this manual if experiencing problems. Latte Communications reserves the right to improve the product. Different software and hardware versions may influence the product performance and functions. Therefore the product shall be subject to change without further notice. -
Page 5: About The Player
04 About the Player... -
Page 6: Display Description
Display Descriptions 05 Main Menu Music play Rea d y... igh ra te ! Re a d y... Video play Record... - Page 7 06 Display Descriptions China Main menu Photo play Audio play Radio...
-
Page 8: Basic Operations 07
Power On/Off 1. Power On: Push the power switch down and hold for 3 seconds. The player will start and display the main menu. 2. Power Off: Push the power switch down and hold for 3 seconds. Locking/Unlocking the Player In Video, Record or Music Playback mode, you can lock the player’s buttons to prevent unintentional operation. - Page 9 08 Basic operations Connect to Computer and File Transfer Start your computer and connect the player using the USB cable included. The player will be detected as a standard removable disk by your computer and will allow you to transfer and manage files on the player Charging the Player Charge your player by connecting it to your PC with the supplied USB cable.
-
Page 10: System Menu 09
System Menu 09 The Main menu is displayed when the player is turned on. Touch Settings icon to enter into the Setting menu. 1. Touch icon to select previous or next item or touch an item directly. 2. Touch icon or the item directly again to confirm your selection and enter into the selection. 3. - Page 11 6. Haptic Setting You can turn On or Off the Haptic function. Note: Upgrading firmware should only be used if recommended by a Latte technician. Wallpaper You can change the background graphics of the player. You can choose from 8 pre-loaded...
- Page 12 System Menu 11 Time Setting You can set the current time and date. Once done, current time will be displayed on the top left corner of the screen Language Select the desired language for the player. System Information This option displays background information about the player including: software revision number, available memory status on the player.
-
Page 13: Music Play
12 Music Play Music Play From the Main Menu, touch Music icon to enter the Music Menu. The Music menu allows you to display your music in the following ways: Current Play (if a song is already playing), All Music, Artist, Album, My Favorite, or Record (voice or FM recorded files). 1. - Page 14 Music Play 13 My Favorite From the All Music listing, select the song and touch the icon. The “Add to Favorite” and “Exit” options will be shown. Touch “Add To Favorite” to confirm and add file to the “My Favorite” list.
- Page 15 14 Music Play A-B repeat play Touch icon. An “A” will be displayed on the screen, which confirms the starting repeat point. Then touch icon again to display “B” on the screen. This confirms the ending repeat point. “A-B” is now displayed and the A-B Repeat mode is set. The player will continue to repeat the selection between the starting and ending point.
- Page 16 Options Touch icon to display the playback options (Repeat Mode, Play Mode, MSEQ, EQ Sel, User EQ Setup). Double-Touch each option to enter the submenu 1. Repeat Mode: Once: Stops after playing the current song. Repeat: Repeats the selected single song. ALL: Plays all songs in the current folder once.
- Page 17 16 Music Play Frequency Out: Select “On” or “Off” option and press key to confirm. Selecting “On” allows for FM transmitting of music from your player to radio. Use Frequency Set to select available frequency. Frequency Set: When “Frequency Out” option setting is on mode, touch icon to adjust the frequency.
-
Page 18: Video Play
Video play From the main menu, touch Video icon to enter the Video Menu. 1. Touch icon to navigate and select your desired file to play 2. Touch icon or touch the file selected directly to play. 3. Touch icon to exit to the previous menu. Options 1. - Page 19 18 Video play Memory Play: The player has the video memory function. When the Video play is interrupted or stopped and you want to play the same file again, the player will ask you “Continue from the last scene?”. Touch “Yes” to continue from the last stopped scene or “No”...
-
Page 20: Picture Browse 19
Picture Display From the main menu, touch Photo icon to enter the Picture menu. 1. Touch icon to navigate and select your desired file to play. 2. Touch icon or touch the file selected directly to display. 3. Touch icon to exit to the previous menu. Options 1. -
Page 21: Txt Browse
20 TEXT Browse Text Browse From the main menu, touch Text icon to enter the Text menu. 1. Touch icon to navigate and select your desired file to play. 2. Touch icon or touch the file selected directly to display. 3. - Page 22 TEXT Browse 21 5. Set Font: Set the font size to Small, Med or Large. 6. Set Color: Sets the font color to Green, Red or Blue. 7. Auto Browsing Timer: Sets the time the next page will be displayed automatically. Time can be set in 5 second increments from 10 to 30 seconds.
-
Page 23: Record
22 Voice Record Record with the built-in microphone From the main menu, touch Record icon enter to the Voice Record menu. Touch the REC to start voice recording and touch to pause recording. Touch icon to save recorded file and exit to the previous menu. Files names are generated automatically in time sequence. -
Page 24: Fm Radio
FM Radio 23 FM Radio From the main menu, touch Radio icon enter the radio menu. The volume can be increased or decreased by touching icon to control the volume. Options 1. Manual Search: Changes the frequency manually. Touch icon to move up or down by 0.1MHZ increments to fine radio stations. - Page 25 24 FM Radio 5. FM Recording: Record the FM radio you are currently listening to. Touch icon to enter the FM recording mode. Touch the REC to start recording and touch to pause recording. Touch icon to save the recorded file and exit and return to the previous menu.
-
Page 26: Others 25
Other functions From the main menu, touch other function icon to enter the Other function menu. . 1. Touch icon to navigate and select your desired file to play. 2. Touch icon or touch the file selected directly to display. 3. -
Page 27: Usb And Charge 26
USB and Charge 26 USB Display Mode Please connect the player to the PC via the USB data cable included (for Windows 2000 above, you do not need driver installation). The player will display an “Online” mode icon. The player will be displayed in the “My Computer”... -
Page 28: Firmware Update
Users can download the latest firmware in the download center of our website. (http://www.lattefone.com). After you download the latest firmware, please copy and transfer the file from your PC to your player via the USB data cable. Disconnect the player and turn on the player. From the main menu, select [Settings] option to enter the system setting. - Page 29 Troubleshooting 28 The player cannot be turned on Check if the battery is low. Recharge the player if required by connecting to your PC with the USB cable. Ensure that the computer is on during the charging process. No sound can be heard from the earphones 1.
-
Page 30: Troubleshooting
29 Troubleshooting Files cannot be downloaded 1. Make sure the proper connection between computer and player is established. 2. Check if the memory is full. 3. Check if the USB cable is damaged and replace if necessary. Audio files not playable This player cannot play audio files that are copy protected. - Page 31 For more product information, please visit www.lattefone.com For technical support, please contact us at support@latteglobal.com (Your email inquiry will be answered within 48 business hours) For Genuine Latte Accessories, please visit www.lattezone.com...
