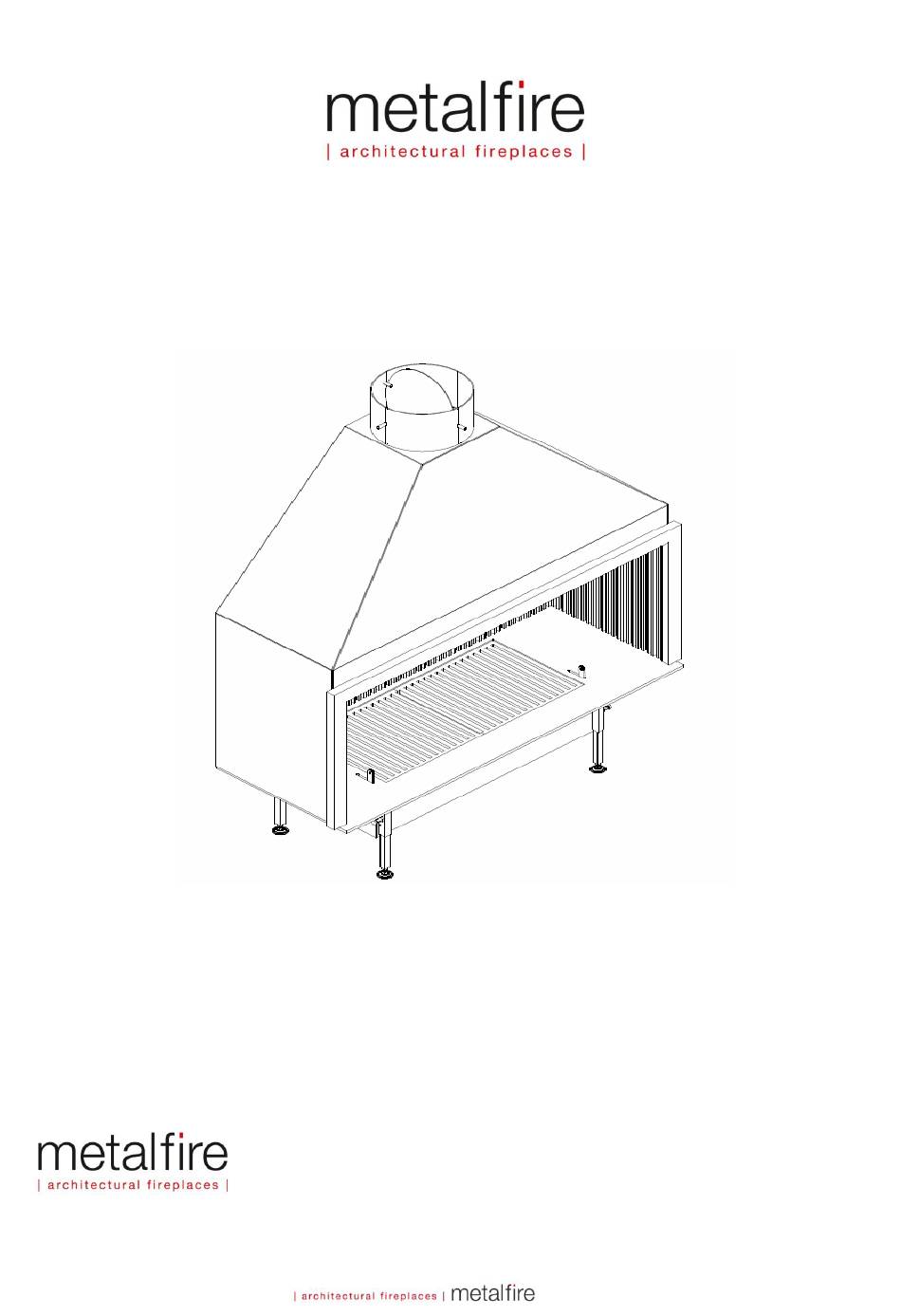

- Page 1 UNIVERSAL SERIES Operating instructions Noorwegenstraat 28 9940 Evergem - Belgium Univ_W_EN_00...
- Page 2 Univ_W_EN_00...
-
Page 3: Table Of Contents
1 Table of contents Table of contents ..............................3 Introduction ................................ 4 Safety ................................. 5 Safety instructions for the user ..........................5 Operating instructions ............................6 Opening the spark screen ......................... 6 Emptying the ash drawer ........................... 6 Adjustment of the flue gas damper ......................7 Lighting the fire .............................. -
Page 4: Introduction
2 Introduction We thank you for your confidence in the Metalfire fireplace you purchased. Our products guarantee ambient heating for years on end. Before taking the fireplace into operation, first read these operating instructions carefully. We advise you to check the appliance for any transport damages at delivery. -
Page 5: Safety
3 Safety Safety instructions for the user These wood-fired fireplaces emit a certain quantity of heat. The entire outside of the fireplace becomes hot. Make sure that young children and elderly people keep an adequate distance from the fireplace, so that they cannot touch it and if required, provide for a guard around the fireplace. Never have children operate the fireplace. -
Page 6: Operating Instructions
4 Operating instructions 4.1 Opening the spark screen The spark screen moves very smoothly up and down. The spark screen can be moved up and down by hand at the folded rim. The spark screen is intended to prevent sparks and glowing particles from hitting the floor. -
Page 7: Adjustment Of The Flue Gas Damper
Now the ash drawer can be withdrawn using both handles. When re-installing the ash drawer, make sure that the rear of the ash drawer is positioned underneath the support face. Only the sides and front of the ash drawer are supported. Rear of ash drawer positioned underneath the support face 4.3 Adjustment of the flue gas damper... -
Page 8: Lighting The Fire
5 Lighting the fire 5.1 Fuel The Universal is appropriate for burning wood. In order to achieve a good combustion, the degree of humidity of the wood may not exceed 15%. If this not the case, more smoke will be generated and the fireplace’s heat emission will be considerably reduced, and the chimney will foul more rapidly increasing the risk of a chimney fire. -
Page 9: Starting The Flue Gas Fan And Aeration Fan
The levers are operated using the supply handles. Handles at the left and right of the fire bottom. 5.2.2 Starting the flue gas fan and aeration fan In case the fireplace assembly is equipped with a flue gas fan and aeration fan, these two must be activated before lighting the fire. -
Page 10: Aeration Using The Fan
Daily use: Start Prepare the kindling, and start the EFC by pressing the button briefly. Light the fire: the fan rotates for 7 minutes at full force and then goes down to the level set before. The speed can be modified from 1-9 at any point in time by keeping the button pressed. -
Page 11: Lighting The Fire
5.2.3 Lighting the fire Put finely split kindling wood on top of the grate. Light the wood using firelighters. Once the kindling wood is burning with nice flames, larger logs can be added. These may be 30 cm long and have a 15 cm circumference. Put these logs on top of the kindling wood. -
Page 12: Maintenance
Do not use caustic detergents. The fireplace’s paintwork can be touched up using heat-resistant paint in a spray can that is available from Metalfire. Remove ash residue regularly which have accumulated underneath the ash drawer. At least once every year, the flue gas duct must be cleaned and checked. -
Page 13: Failures
7 Failures 7.1 Smoke kickback Check the flue gas duct for blockings. (bird’s nest) Check the operation and settings of the flue gas fan. Check the combustion air supply duct. Check the adjustment of the flue gas damper. Underpressure in the room as a result of the ventilation system or a cooker hood. Incorrectly sized flue gas duct. -
Page 14: Terms Of Guarantee
- Damage to glass and seals. - Damage resulting from transport, storage and installation. - Use of non-original Metalfire parts. 8.3 Reservation Metalfire BVBA reserves the right to change its appliances, brochures, installation and operating manuals at any time and without prior notice. Univ_W_EN_00...
