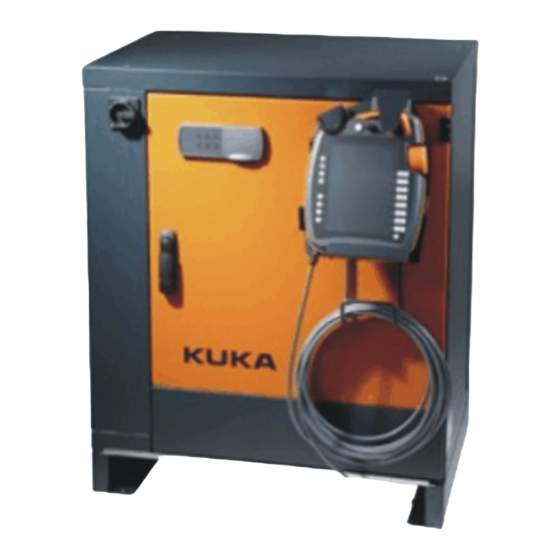

KUKA Roboter GmbH
Controller Option
Cooling Unit
For KR C4 extended
Assembly and Operating Instructions
Issued: 24.07.2013
Version: MA KR C4 extended Cooling Unit V1 en (PDF)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KR C4 and is the answer not in the manual?

Questions and answers

Related Manuals for Kuka KR C4

Summary of Contents for Kuka KR C4

  • Page 1 KUKA Roboter GmbH Controller Option Cooling Unit For KR C4 extended Assembly and Operating Instructions Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF)
  • Page 2 Pub MA KR C4 extended Cooling Unit (PDF) en Book structure: MA KR C4 extended Kühlgerät V1.1 Version: MA KR C4 extended Cooling Unit V1 en (PDF) Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 2 / 29...

  • Page 3: Table Of Contents

    Safety ......................Maintenance ....................Decommissioning, storage and disposal ..........Storage ........................Disposal ........................KUKA Service ....................Requesting support ....................KUKA Customer Support ................... Index ......................Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 3 / 29...
  • Page 4 Cooling Unit Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 4 / 29...

  • Page 5: Introduction

    These hints serve to make your work easier or contain references to further Notes information. Tip to make your work easier or reference to further information. Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 5 / 29...
  • Page 6 Cooling Unit Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 6 / 29...

  • Page 7: Purpose

    Intended use The cooling unit is used to cool the interior of the KR C4 extended robot con- troller with outside temperatures between +20 ... 50 °C. Any use or application deviating from the intended use is deemed to be imper- Misuse missible misuse.
  • Page 8 Cooling Unit Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 8 / 29...

  • Page 9: Product Description

    The factory-set temperature setting in the robot controller is +35 °C. The cooling unit consists of the following components: Power circuit-breaker Q8  Cooling unit  Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 9 / 29...
  • Page 10 Cooling Unit Overview Fig. 3-2 Power circuit-breaker Q8 Cooling unit Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 10 / 29...

  • Page 11: Technical Data

    Weight 35 kg Protection rating IP54 Dimensions The dimensions of the KR C4 extended robot controller with cooling unit are KR C4 extended indicated in the diagram. Fig. 4-1: Dimensions of KR C4 extended with cooling unit Cooling unit Side view...

  • Page 12: Plates And Labels

    Plates and labels The following plates and labels are attached to the cooling unit: Overview Fig. 4-3: Plates and labels Plate no. Designation Identification plate Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 12 / 29...

  • Page 13: Safety

    The “Safety” chapter in the operating instructions or as- sembly instructions of the robot controller must be ob- served. Death to persons, severe injuries or considerable damage to property may otherwise result. Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 13 / 29...
  • Page 14 Cooling Unit Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 14 / 29...

  • Page 15: Maintenance

    6 Maintenance Maintenance The cooling unit is filterless and maintenance-free. Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 15 / 29...
  • Page 16 Cooling Unit Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 16 / 29...

  • Page 17: Decommissioning, Storage And Disposal

    When the cooling unit reaches the end of its useful life, it can be dismantled, and the materials can be disposed of properly by type. Dismantling and disposal must be carried out by a specialist compa- Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 17 / 29...
  • Page 18 Cooling Unit Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 18 / 29...

  • Page 19: Kuka Service

    Headland Machinery Pty. Ltd. Australia Victoria (Head Office & Showroom) 95 Highbury Road Burwood Victoria 31 25 Australia Tel. +61 3 9244-3500 Fax +61 3 9244-3501 vic@headland.com.au www.headland.com.au Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 19 / 29...
  • Page 20 Tel. +86 21 6787-1888 Fax +86 21 6787-1803 www.kuka-robotics.cn KUKA Roboter GmbH Germany Zugspitzstr. 140 86165 Augsburg Germany Tel. +49 821 797-4000 Fax +49 821 797-1616 info@kuka-roboter.de www.kuka-roboter.de Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 20 / 29...
  • Page 21 KUKA Robotics Canada Ltd. Canada 6710 Maritz Drive - Unit 4 Mississauga L5W 0A1 Ontario Canada Tel. +1 905 670-8600 Fax +1 905 670-8604 info@kukarobotics.com www.kuka-robotics.com/canada Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 21 / 29...
  • Page 22 Fax +47 61 18 62 00 info@kuka.no KUKA Roboter Austria GmbH Austria Vertriebsbüro Österreich Regensburger Strasse 9/1 4020 Linz Austria Tel. +43 732 784752 Fax +43 732 793880 office@kuka-roboter.at www.kuka-roboter.at Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 22 / 29...
  • Page 23 Fax +46 31 7266-201 info@kuka.se KUKA Roboter Schweiz AG Switzerland Industriestr. 9 5432 Neuenhof Switzerland Tel. +41 44 74490-90 Fax +41 44 74490-91 info@kuka-roboter.ch www.kuka-roboter.ch Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 23 / 29...
  • Page 24 Organisation Tschechien und Slowakei Sezemická 2757/2 193 00 Praha Horní Počernice Czech Republic Tel. +420 22 62 12 27 2 Fax +420 22 62 12 27 0 support@kuka.cz Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 24 / 29...
  • Page 25 Tel. +1 866 873-5852 Fax +1 866 329-5852 info@kukarobotics.com www.kukarobotics.com KUKA Automation + Robotics Hereward Rise Halesowen B62 8AN Tel. +44 121 585-0800 Fax +44 121 585-0900 sales@kuka.co.uk Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 25 / 29...
  • Page 26 Cooling Unit Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 26 / 29...

  • Page 27: Index

    Protection rating 11 Purpose 7 Robot controller 9 Safety 13 Safety instructions 5 Service, KUKA Roboter 19 Software 9 Storage 17 Supply voltage 11 Support request 19 Issued: 24.07.2013 Version: MA KR C4 extended Cooling Unit V1 en (PDF) 27 / 29...
