Ohmic Instruments
Phone (410) 820-5111
Toll Free(800) 626-7713
3081 Elm Point Industrial Drive
St. Charles, MO 63301 USA
Fax (410) 822-9633
www.ohmicinstruments.com
Sales: sales@ohmicinstruments.com
Service: service@ohmicinstruments.com

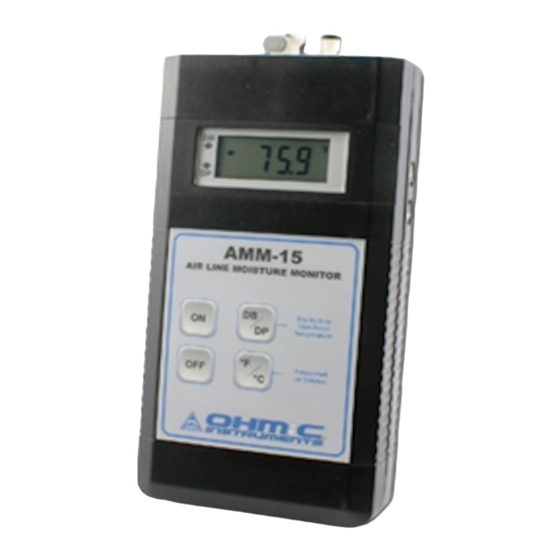

AMM-15 Manual
AIR-LINE MOISTURE MONITOR
Model AMM-15
SF-SLS-546 (B)
1
Advertisement
Table of Contents
Related Manuals for Ohmic instruments AMM-15
Summary of Contents for Ohmic instruments AMM-15
- Page 1 Ohmic Instruments Phone (410) 820-5111 Toll Free(800) 626-7713 3081 Elm Point Industrial Drive St. Charles, MO 63301 USA Fax (410) 822-9633 www.ohmicinstruments.com Sales: sales@ohmicinstruments.com Service: service@ohmicinstruments.com AMM-15 Manual AIR-LINE MOISTURE MONITOR Model AMM-15 SF-SLS-546 (B)
- Page 2 Information contained in this manual is believed to be accurate and reliable; however, no responsibility is assumed by Ohmic Instruments for its use. Ohmic reserves the right to supply its instruments with design changes and/or component...
-
Page 3: Table Of Contents
Contents Storage Recommendations…………………………………………………...4 Introduction ....................5 Sample Modes / Connecting Information ..........6 Operating Instructions ................8 RS-232 Interface ..................8 Logging and Data Uploading ..............10 Changing Settings Using the Interior DIP Switch ........10 Summary of Computer Commands.………………………………………. 11 Notes on Communication and Command Structure........ -
Page 4: Storage Recommendations
0 to 125 Deg. F. at less than 90 % RH. Long term storage of the AMM-15 out of these conditions is not recommended by Ohmic Instruments. We also recommend removing the batteries if the... -
Page 5: Introduction
INTRODUCTION Ohmic Model AMM-15 Air-line disconnects provided with the unit. Moisture Monitor is a portable hand Model AMM-15 is an ideal choice -held instrument designed to accu- for personnel involved in operating, rately monitor the dew point and dry maintaining, or inspecting com-... -
Page 6: Sample Modes / Connecting Information
SAMPLE MODES / CONNECTING INFORMATION The AMM-15 is designed for use with both compressed and low pressure In compressed air applications air systems, and can accurately (above 5 psi), the dew point meas- measure conditions in air lines oper- urements are made at line, rather ating at pressures from 0 to 120 psi. - Page 7 AMM-15 CONNECTIONS Remaining ¼” OD Hard Tubing Metal Quick Connect Filter Metal Quick Connect Brass Orifice ¼” OD Hard Assembly Tubing Hose barb to Quick Connect Outlet Inlet IMPORTANT THE OUTLET ORIFICE MUST BE USED WHEN WORKING WITH 5 PSI OR GREATER.
-
Page 8: Operating Instructions
Some computer COM ports and seri- Connecting Information page. al adapters are not fully implemented [AIR LINE PRESSURE IS NOT (not all pins are used). If the AMM-15 TO EXCEED 120 PSI] is connected to a partially implement- ed serial port, functions may be errat- 4. - Page 9 Set up your communications program If readings are not displayed, turn the as described below. AMM-15 off, and in Tera Term click on Setup in the menu bar, then se- Communications Programs lect Serial Port. This will open a win-...
-
Page 10: Logging And Data Uploading
9 60 0 = O F F O F F 1 2 0 0 = O N L O C K E D = O N O F F Each AMM-15 ships with DIP switches 1, 2, and 3 off, and 4 on. -
Page 11: Summary Of Computer Commands
SUMMARY OF COMPUTER COMMANDS The following is a list of commands accepted by the AMM-15. Make sure you read through the notes on Page 10 before attempting to change any of the settings. Each command should be followed by pressing the Enter key. -
Page 12: Notes On Communication And Command Structure
(#) corre- spond to Dew Point and Tem- REPLACEMENT PARTS Inline Filter ....................#5355 ¼" OD Polypropylene Tubing (6-foot) ........... ST-AMM-15 If you need additional help for your particular application, contact Ohmic at (410) 820-5111, or e-mail us at sales@ohmicinstruments.com. -
Page 13: Analog Output Table
AMM-15 ANALOG OUTPUT TABLE DP Vout (mV) DP Vout (mV) Vout (mV) DP Vout (mV) 0.00 253.33 506.67 760.00 6.67 260.00 513.33 766.67 13.33 266.67 520.00 773.33 20.00 273.33 526.67 780.00 26.67 280.00 533.33 786.67 33.33 286.67 540.00 793.33 40.00 293.33... -
Page 14: General Specifications
GENERAL SPECIFICATIONS AIR-LINE MOISTURE MONITOR - Model AMM-15 ELECTRICAL Water Vapor Sensor: HC-610 (Thin Film Polymer) Temperature Sensor: 10K NTC Thermistor Dewpoint Range: -40 to +80 F Dewpoint Accuracy: ±4 F from -40 to +20; ±2 F from +20 to +80 Dry-Bulb Range: 0 to 140 F... -
Page 15: Warranty
Ohmic Instruments Company. Information con- tained within this manual is believed to be accurate 1. Notify Ohmic Instruments giving full details of the and reliable. However, Ohmic Instruments Compa- difficulty, and include the model, type, and serial ny assumes no liability for its use. Ohmic Instru- numbers (where applicable).
