Draper CVS Instructions

Combination volleyball system

Download this manual

Combination Volleyball System

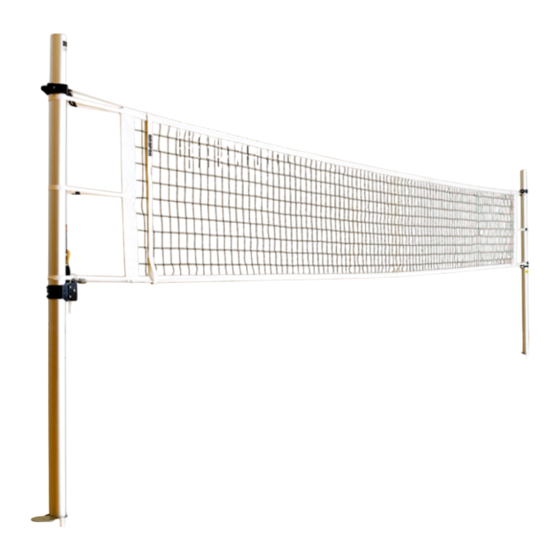

Highly maneuverable, volleyball system with infinite net height adjustment

Please Note: These instructions are meant as a guide only.

They do not imply any responsibility on the part of Draper, Inc. for improper installation or faulty workman ship at the jobsite.

CAUTION

1. Over-tightening top cable can damage equipment and possibly cause injury.

2. Center of net will sag slightly. This is natural. Do not try to compensate by

over-tightening top cable.

(See "Net Height" information below.)

3. Make sure proper parts and accessories have been shipped. Do not attempt to

install any accessories that are not intended for your Volleyball System.

4. Do not attempt to operate the winch by using an electric drill; hand crank only.

5. Please read the following installation guidelines thoroughly and follow them

carefully. Failure to do so may cause product to fall or otherwise fail, and

invalidates warranty.

Please Note: Custom products/installations may not be reflected by this

document. Call Draper, Inc. if you have questions about your installation.

INSTRUCTIONS

INSTALLATION & OPERATION

If you have any difficulties installing or servicing your

CVS Volleyball System, call your dealer or Draper, Inc.

Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385

draperinc.com | 765.987.7999 | 800.238.7999

FORM: CVS_VB_Inst20

Need help?

Do you have a question about the CVS and is the answer not in the manual?

Page 1 INSTALLATION & OPERATION Please Note: These instructions are meant as a guide only. They do not imply any responsibility on the part of Draper, Inc. for improper installation or faulty workman ship at the jobsite. CAUTION 1. Over-tightening top cable can damage equipment and possibly cause injury.
Page 2 NOTE: It will be necessary to move winch and cable anchor collar when using CVS volleyball system for nets heights other than Mens/Womens Volleyball. 8. For initial set up, you will start by setting at MENS height. Position the center of the approximately 1"...
Page 3 Combination Volleyball System page 3 of 4 Official Net Heights for USVBA, NCAA, and NFSHSA (Volleyball) VOLLEYBALL GIRLS BOYS Section 5 - Attaching Net Height Labels Grades 1-6 (Elem.) 6'1" (1.85m) 6'1" (1.85m) Grades 7-9 (Middle School) 7' 4 " (2.24m) 7' 4 "...
Page 4 Combination Volleyball System page 4 of 4 500016 Combination 500014 Volleyball Net Antenna and Boundary Marker 40'6" nylon coated 32'0" Net " aircraft cable 4" Square netting #36 Nylon cord (black) 1" wide polypropylene tension straps with tensioning buckles " dia. braided "...
