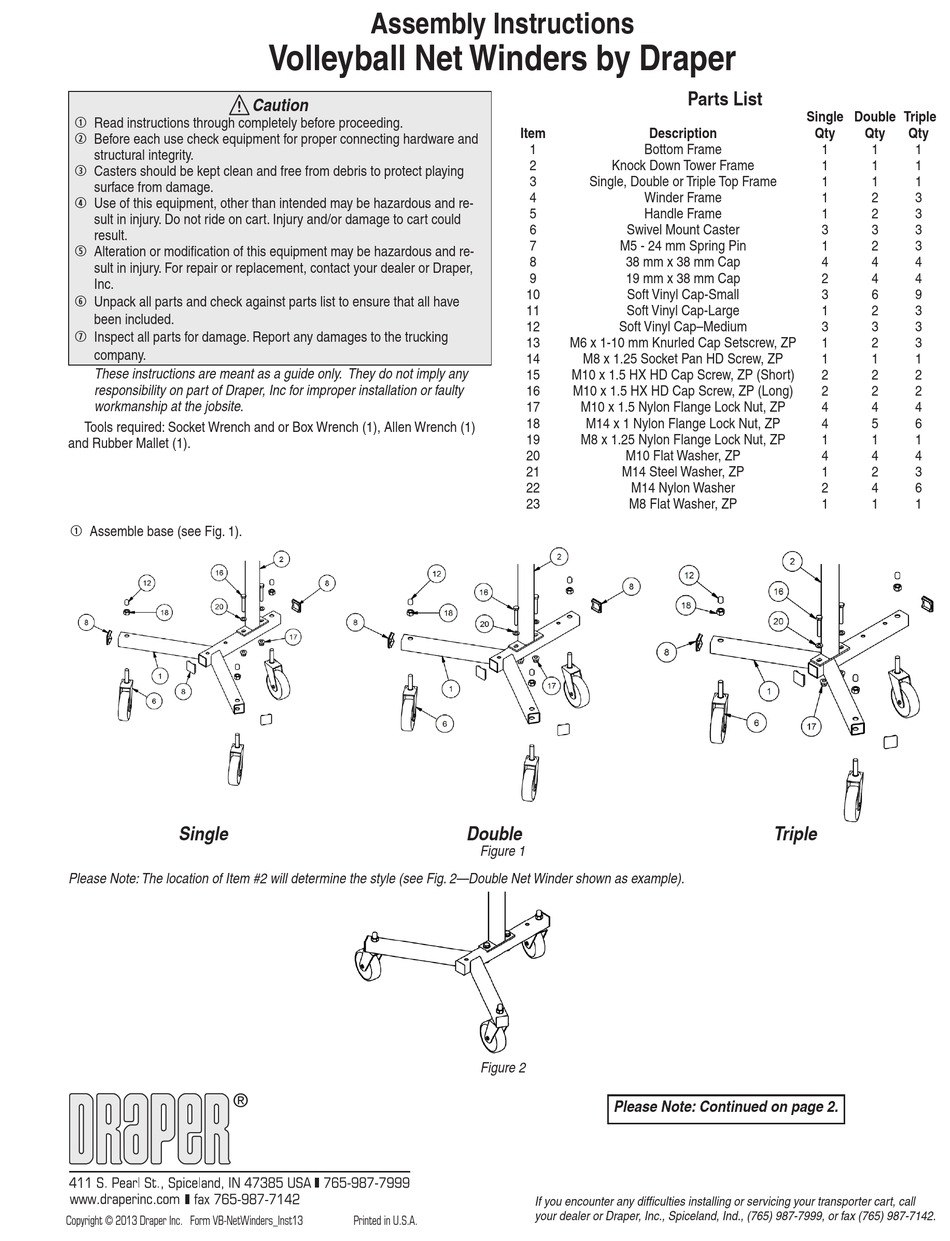

Draper 501043 Assembly Instructions

1 Read instructions through completely before proceeding.
2 Before each use check equipment for proper connecting hardware and
structural integrity.
3 Casters should be kept clean and free from debris to protect playing
surface from damage.
4 Use of this equipment, other than intended may be hazardous and re-
sult in injury. Do not ride on cart. Injury and/or damage to cart could
result.
5 Alteration or modification of this equipment may be hazardous and re-
sult in injury. For repair or replacement, contact your dealer or Draper,
Inc.
6 Unpack all parts and check against parts list to ensure that all have
been included.
7 Inspect all parts for damage. Report any damages to the trucking
company.
These instructions are meant as a guide only. They do not imply any
responsibility on part of Draper, Inc for improper installation or faulty
workmanship at the jobsite.
Tools required: Socket Wrench and or Box Wrench (1), Allen Wrench (1)
and Rubber Mallet (1).
1 Assemble base (see Fig. 1).
Single
Please Note: The location of Item #2 will determine the style (see Fig. 2—Double Net Winder shown as example).
®
Copyright © 2013 Draper Inc. Form VB-NetWinders_Inst13
Assembly Instructions
Volleyball Net Winders by Draper
Caution
Printed in U.S.A.
Item
1 Bottom Frame
2 Knock Down Tower Frame
3 Single, Double or Triple Top Frame
4 Winder Frame
5 Handle Frame
6 Swivel Mount Caster
7 M5 - 24 mm Spring Pin
8 38 mm x 38 mm Cap
9 19 mm x 38 mm Cap
10 Soft Vinyl Cap-Small
11 Soft Vinyl Cap-Large
12 Soft Vinyl Cap–Medium
13 M6 x 1-10 mm Knurled Cap Setscrew, ZP
14 M8 x 1.25 Socket Pan HD Screw, ZP
15 M10 x 1.5 HX HD Cap Screw, ZP (Short)
16 M10 x 1.5 HX HD Cap Screw, ZP (Long)
17 M10 x 1.5 Nylon Flange Lock Nut, ZP
18 M14 x 1 Nylon Flange Lock Nut, ZP
19 M8 x 1.25 Nylon Flange Lock Nut, ZP
20 M10 Flat Washer, ZP
21 M14 Steel Washer, ZP
22 M14 Nylon Washer
23 M8 Flat Washer, ZP
Double
Figure 1
Figure 2
Please Note: Continued on page 2.
If you encounter any difficulties installing or servicing your transporter cart, call
your dealer or Draper, Inc., Spiceland, Ind., (765) 987-7999, or fax (765) 987-7142.
Parts List
Single Double Triple
Description Qty
1
1
1
1
1
3
1
4
2
3
1
3
1
1
2
2
4
4
1
4
1
2
1
Triple
Qty Qty
1 1
1 1
1 1
2 3
2 3
3 3
2 3
4 4
4 4
6 9
2 3
3 3
2 3
1 1
2 2
2 2
4 4
5 6
1 1
4 4
2 3
4 6
1 1
