XCPC-9200
Installation into rack
The XCPC-9200 can be installed in a standard cPCI 32-bit or 64-bit PCI bus.
WARNING: Make sure the front handles are closed firmly.
18
1. Configure and install the PMC modules according to the manufacturer's
suggested installation procedure. Tighten the four screws per PMC.
2. With the solder side facing up on the carrier (depending on the chassis),
Slide the XCPC-9200 into the chassis. Press firmly on the board until the
connectors are fully mated. Tighten the front screws ensuring that the
carrier is secured to the backplane.
4.
Installation is complete, power up the board.

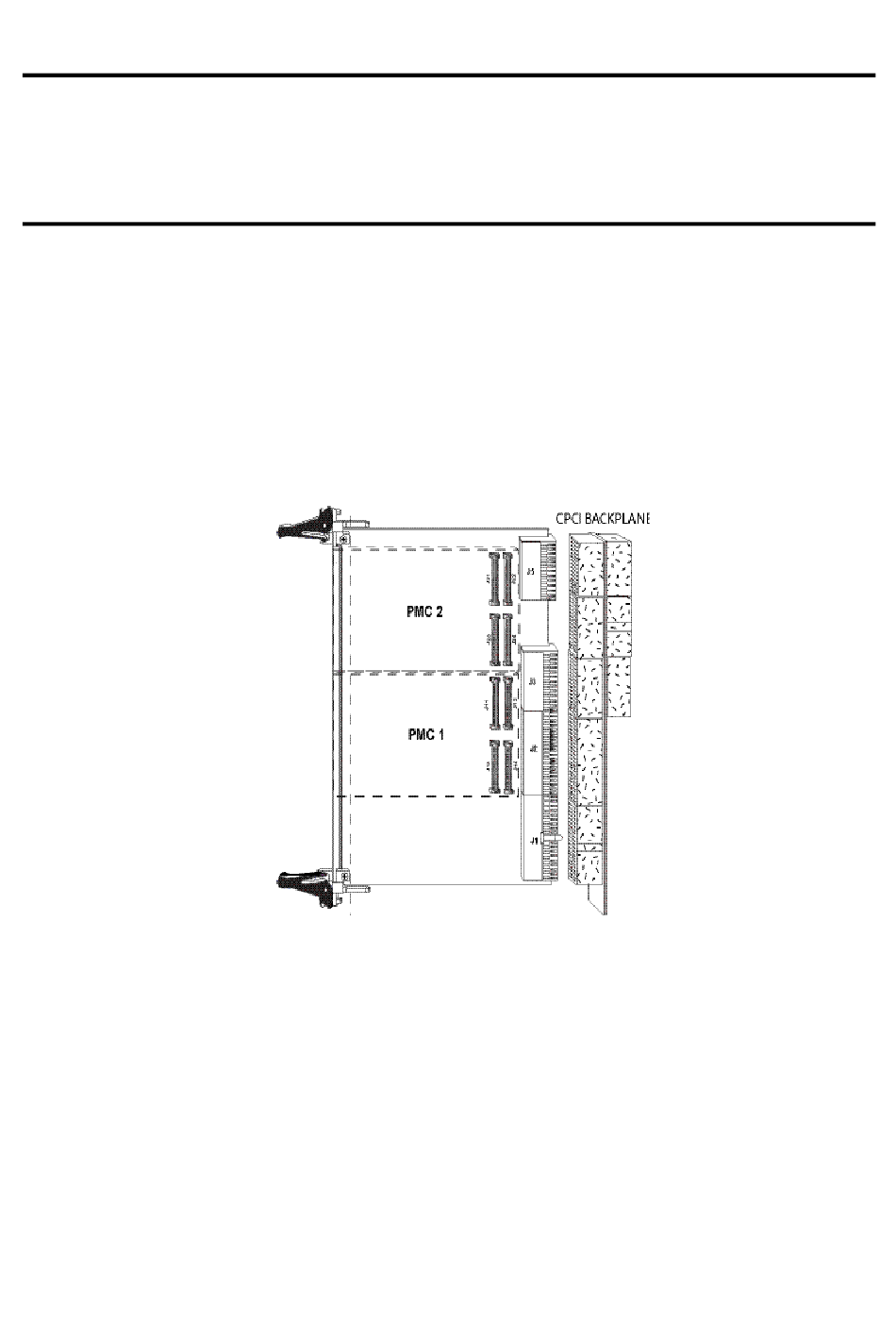

Figure 2-1 Typical Installation
