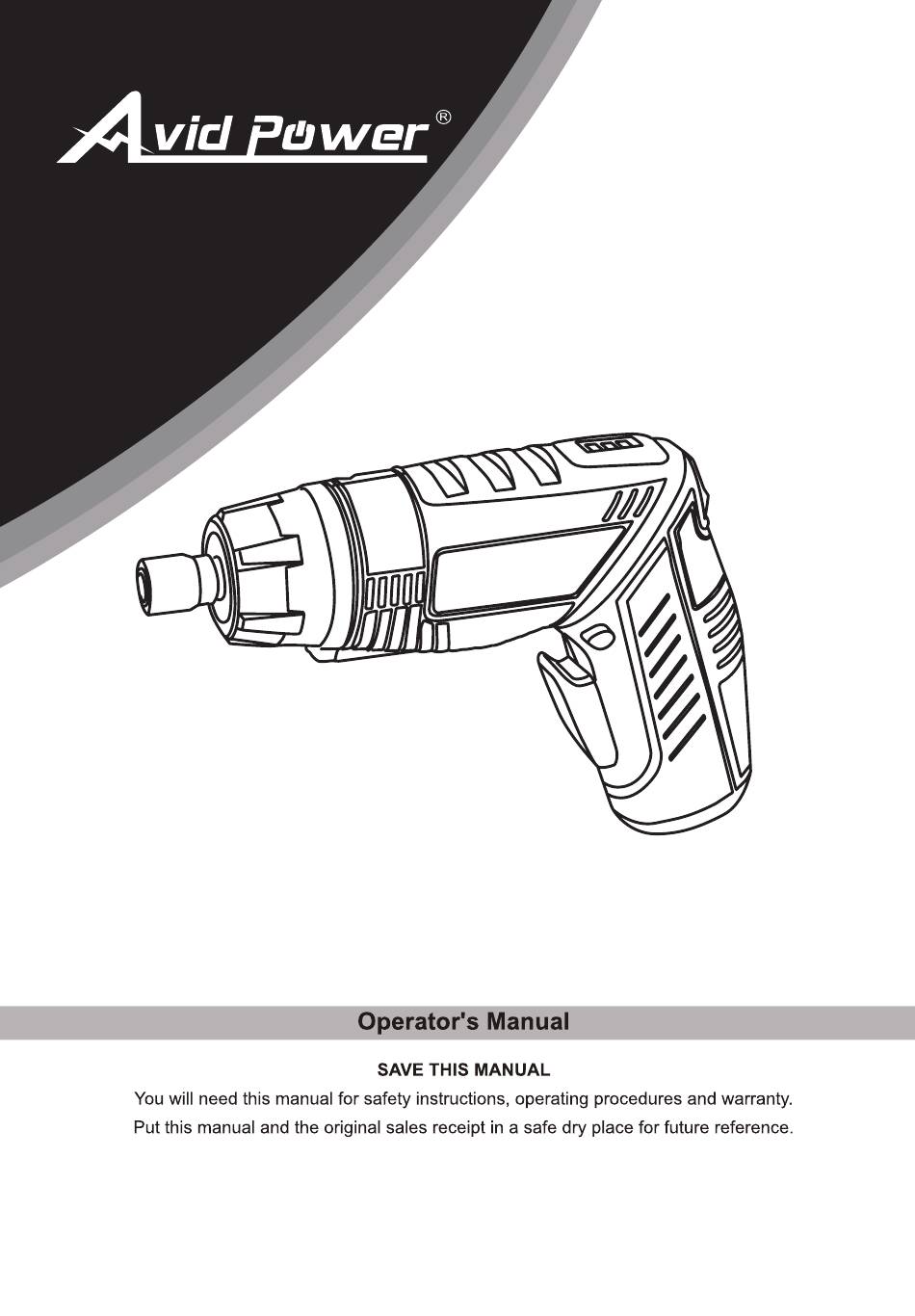

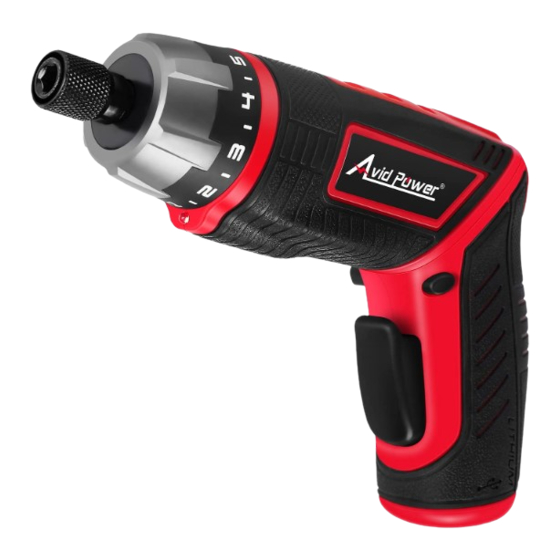

- Page 1 MODEL: ACSD368 4V CORDLESS SCREWDRIVER...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ................2 IMPORTANT SAFETY INSTRUCTIONS ..........3 SPECIFICATIONS .................4 FUNCTIONAL DESCRIPTION ..............4 OPERATION ..................5 MAINTENANCE ..................7 PARTS LIST ..................8 SCHEMATIC DRAWING ...............9... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The following recommendations should be strictly complied with before operating the too in order to avoid damage to the equipment and hazard to the user. „ Wear individual protection equipment if necessary (gloves, shoes, eye protectors, breathing filters etc.). Do not wear jewels; protect long hair wear close-fitting clothes. „... -
Page 4: Specifications
SPECIFICATIONS No Load Speed: 200rpm Chuck Size: 1/4" Max Torque: 50 in-lbs(5.65Nm) With 1pc USB cable 44pcs accessories: 8pcs Sockets 1pc 1” Screw bit holder 1pc 2-3/8” Screw bit holder 28pcs 1” Screwdriver bits 6pcs HSS Drill bits FUNCTIONAL DESCRIPTION 1. -
Page 5: Operation
OPERATION CAUTION: The safety instructions should be read carefully before operating the tool. Power supply: „ Connect one end of the USB cable to the screwdriver and the other end to the usb charging port (such as power band, wall charger, notebook or car charger). „... - Page 6 OPERATION To install bits: „ Lock forward / neutral / reverse switch on the tool by placing the direction of rotation selector in neutral position. Pull the chuck sleeve away from the driver. „ Push the bit into the chuck, release the chuck sleeve to lock bit into place. „...
-
Page 7: Maintenance
OPERATION For forward rotation, (with chuck pointed away from you) move the lever to the far left. For reverse rotation move the lever to the far right. To activate trigger lock move lever to the center off position. Do not change direction of rotation until the tool comes to a complete stop. Shifting during rotation of the chuck can cause damage to the tool. -
Page 8: Parts List
PARTS LIST Description Qty. Motor__RS380_ 3.6V Motor gear P_ 039__08A_ Gearbox cover ISO 7045- M2.5x 5-Z --- 5S Washer Back star gear__plastic Back star gear holder Front star gear_ steel Ring gear Self lock block Locking pin Self lock ring Lock washer Self lock core Bushing... -
Page 9: Schematic Drawing
SCHEMATIC DRAWING...
