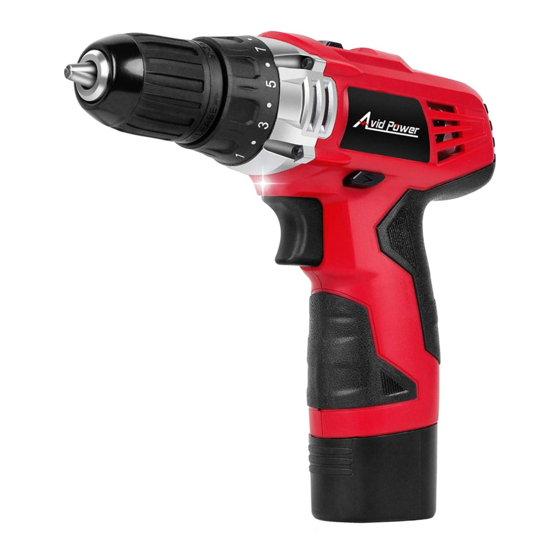

MODEL: ACD306-N/
ACD306-P
12V CORDLESS DRILL/DRIVER
Operator's Manual
SAVE THIS MANUAL
You will need this manual for safety instructions, operating procedures and warranty.
Put this manual and the original sales receipt in a safe dry place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACD306-N and is the answer not in the manual?

Questions and answers

Related Manuals for Avid Power ACD306-N

Summary of Contents for Avid Power ACD306-N

  • Page 1 MODEL: ACD306-N/ ACD306-P 12V CORDLESS DRILL/DRIVER Operator's Manual SAVE THIS MANUAL You will need this manual for safety instructions, operating procedures and warranty. Put this manual and the original sales receipt in a safe dry place for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS-------------------------------------------P.2 PRECAUTIONS FOR BATTERY CHARGER ------------------------------------P.6 SAFETY PRECAUTIONS FOR DRIL---------------------------------------------- P.7 PRODUCT SPECIFICATION----------------------------------------------------------P.8 CONPONENTS --------------------------------------------------------------------------P.9 PACKAGE INCLUDED ----------------------------------------------------------------P.9 OPERATION ------------------------------------------------------------------------------P.10 ADJUSTMENT ---------------------------------------------------------------------------P.14 MAINTENANCE -------------------------------------------------------------------------P.17 PART LIST --------------------------------------------------------------------------------P.18 SCHEMATIC DRAWING --------------------------------------------------------------P.19...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electric tools, machines or equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. The warnings, cautions, and instructions detailed in this manual cannot cover all possible conditions and situations that occur. 1.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 7. DRESS PROPERLY. Don’t wear loose clothing or jewelry, they can get caught in moving parts. Protective, non-electrically conductive gloves and non-skid footwear are recommended when working. Wear protective hair covering to contain long hair and keep it from harm. 8.
  • Page 5 before using it. 15. AVOID UNINTENTIONAL STARTING. Don’t carry tools with a finger on the switch. Be sure the direction switch is in the STOP position when not in use or when changing attachments. 16. STAY ALERT. Watch what you are doing & use common sense. Don’t operate any tool when you are tired.

  • Page 6: Precautions For Battery Charger

    enclosures. When drilling or cutting into walls, floors, or wherever “live” electrical wires may be, try to ascertain whether there is a danger of shock. 19. REPLACEMENT PARTS. When servicing, use only identical replacement parts. PRECAUTIONS FOR BATTERY CHARGER CHARGE BATTERY AT LEAST 6 HOURS before initial use. 1.
  • Page 7 hearing loss. 2. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. 3. Special Safety Instructions for Battery Pack and Charger. If under extreme conditions any electrolyte should escape from the battery, it's essential to avoid contact with skin.

  • Page 8: Product Specification

    9. Use only the battery pack, which has been produced by the original manufacturer. 10. Always keep the surface of the charger free from dust and dirt. 11. Insert the battery pack into the charger. Follow the guidelines provided concerning polarity. 12.

  • Page 9: Conponents

    TOOL CONPONENTS Keyless chuck 2. Torque settings 3. Variable speed trigger switch 4. Trigger lock 5. Build in work light 6. Gear shifter 7. Rubberized grip 8. Battery pack 9. Battery release tags PACKAGE INCLUDED A. Charger B. Charger stand C.

  • Page 10: Operation

    OPERATION How to install/remove the battery pack 1. Release battery pack from tool by pressing on both sides of the battery release tabs and pull downward (Fig.2). 2. To insert battery, align battery and slide battery pack into tool until it locks into position.
  • Page 11 OPERATION CAUTION: Fully charge battery before first use. The battery will reach full capacity after being charged and discharged several times. CAUTION: Avoid short periods of charging. Only charge the battery pack when completely empty. CAUTION: Adaptor, charger and battery pack will be warm when charging. How to charge the battery pack (Fig.3) 1.
  • Page 12 OPERATION METHOD 1 (Fig.4) To install the driver bit/drill bit: Step 1: Rotate the chuck (A) anticlockwise by hand to open the chuck jaws. (If A was screwed too tight, please rotate it with more force). Step 2: Place the driver/drill bit in the chuck as far as it will go. Step 3: Then rotate the chuck (A) clockwise by hand to tighten the chuck jaws.
  • Page 13 OPERATION METHOD 2（Fig.5 Fig.6 Fig.7） To install the driver bit/drill bit: Step 1: Open the chuck jaws: move the forward/reverse button to the right side of the tool to make it do reverse rotation. Fig.5 Step 2: Hold the keyless chuck with one hand and squeeze the trigger with the other hand to open the chuck jaws.

  • Page 14: Adjustment

    Step 3: Carefully center the driver bit/drill bit between the jaws. Step 4: Move the forward/reverse button to the left side, it will do forward rotation. Step 5: Hold the keyless chuck with one hand and squeeze the trigger slowly until it is locked in place.
  • Page 15 serves as a lock-off button. You can choose between clockwise and anticlockwise rotation. To avoid causing damage to the gearing it is advisable to change the direction of rotation only when the tool is at a standstill. 2. To select forward rotation, release the trigger switch and depress the forward/reverse control button on the right side of the tool.
  • Page 16 for drilling lighter work. A) Select LOW speed for applications requiring higher power and torque. B) Select HIGH speed for fast drilling, drilling or driving applications. NOTE: Never change speeds while the tool is running. Failure to obey this caution could result in serious damage to the drill.
  • Page 17 which can be driven. To select any of the numbers, rotate until the desired number aligns with the arrow. NOTE: Before the actual operation, drive a trial screw into your material or a piece of duplicate material to determine which torque level is required for a particular application.

  • Page 18: Maintenance

    MAINTENANCE ATTENTION: Always remove the battery before carrying out any work on the machine. 1. To clean, always use a dry or moist, but not wet towel. Many cleaning agents contain chemical substances which may cause damage to the plastic parts of the machine.

  • Page 19: Part List

    PART LIST DESCRIPTION DESCRIPTION Shift button Steel pillar Spring Washer Housing Gear ring Plate spring Ring LED light Steel ball F/R button Shaft Trigger switch Sleeve Motor Screw Gear Keyless chuck Cover Torque setting ring Screw Screw Washer Front cover Inner gear Press ring Planet gear...

  • Page 20: Schematic Drawing

    SCHEMATIC DRAWING...
