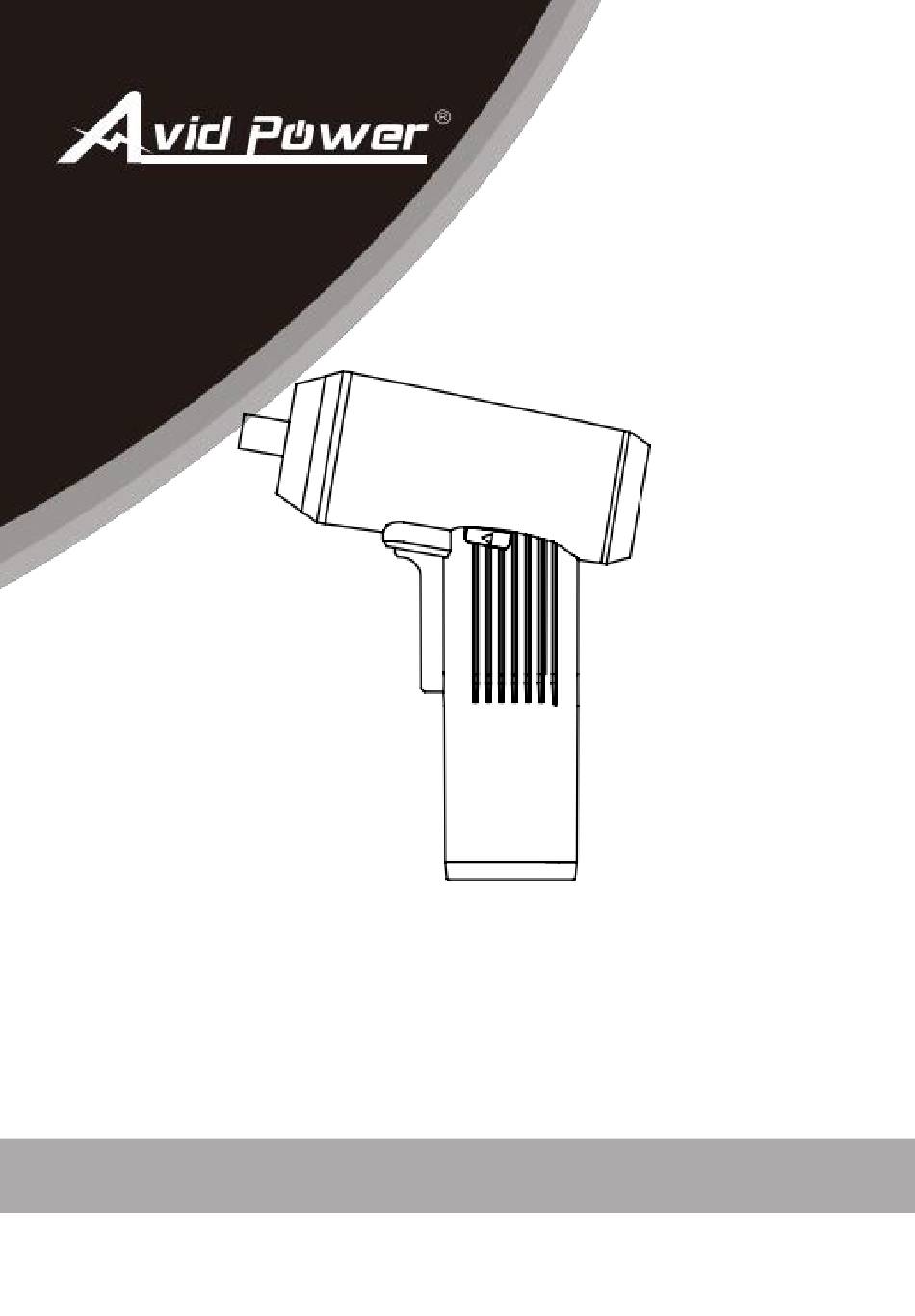

- Page 1 4V CORDLESS SCREWDRIVER Any product/ return issues, please feel free to contact us directly via (Mon. to Sun. Any time) MODEL: ACSD370...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ................IMPORTANT SAFETY INSTRUCTIONS ............................SPECIFICATIONS FUNCTIONAL DESCRIPTION ..............OPERATION ....................MAINTENANCE .................... PARTS LIST ....................SCHEMATIC DRAWING ................ -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The following recommendations should be strictly complied with before operating the too in order to avoid damage to the equipment and hazard to the user. Wear individual protection equipment if necessary (gloves, shoes, eye protectors, breathing filters etc.).Do not wear jewels; protect long hair wear close-fitting clothes. ... -
Page 4: Specifications
SPECIFICATIONS No Load Speed: 200rpm Chuck Size: 1/4" Max Torque: 40 in-lbs(4.5N.m) With 1pc USB cable Accessories: 1pc USB cable 1pc canvas bag 12pcs 1" Screwdriver bits 1pc 2-3/8” Screw bit holder FUNCTIONAL DESCRIPTION 1. Keyless Chuck 2. Led Light 3. -
Page 5: Operation
OPERATION CAUTION: The safety instructions should be read carefully before operating the tool. Power supply: Connect one end of the USB cable to the screwdriver and the other end to the adapter. Plug the adapter to the power supply, the indicated light is red. ... -
Page 6: Maintenance
OPERATION For forward rotation, (with chuck pointed away from you) move the lever to the far left. For reverse rotation move the lever to the far right. To activate trigger lock move lever to the center off position. Do not change direction of rotation until the tool comes to a complete stop . -
Page 7: Parts List
PARTS LIST Description lampshade light board hood lock washer plate ball plate shaft sleeve gear box housing shaft self- lock ring self- lock pin Self- locking block gear star gear holder ring gear washer motor screw gear box cover motor gear motor housing main- upside hosuing fixing screw... -
Page 8: Schematic Drawing
SCHEMATIC DRAWING...
