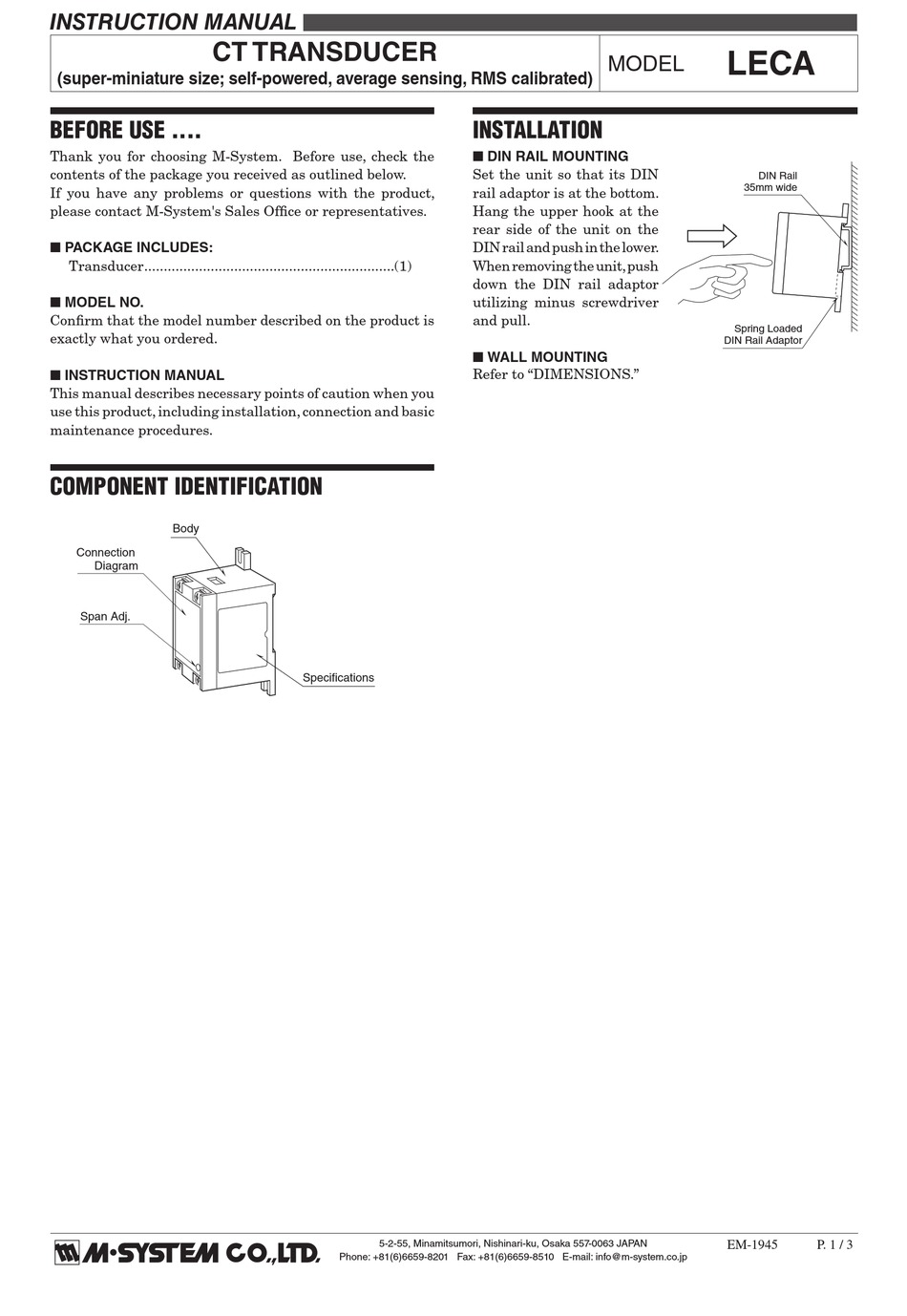

INSTRUCTION MANUAL
CT TRANSDUCER
(super-miniature size; self-powered, average sensing, RMS calibrated)
BEFORE USE ....
Thank you for choosing M-System. Before use, check the
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
n PACKAGE INCLUDES:
Transducer ................................................................(1)
n MODEL NO.
Confirm that the model number described on the product is
exactly what you ordered.
n INSTRUCTION MANUAL
This manual describes necessary points of caution when you
use this product, including installation, connection and basic
maintenance procedures.
COMPONENT IDENTIFICATION
Body
Connection
Diagram
Span Adj.
INSTALLATION
n DIN RAIL MOUNTING
Set the unit so that its DIN
rail adaptor is at the bottom.
Hang the upper hook at the
rear side of the unit on the
DIN rail and push in the lower.
When removing the unit, push
down the DIN rail adaptor
utilizing minus screwdriver
and pull.
n WALL MOUNTING
Refer to "DIMENSIONS."
Specifications
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
LECA
MODEL
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
EM-1945
LECA
P. 1 / 3
