Technaxx
®

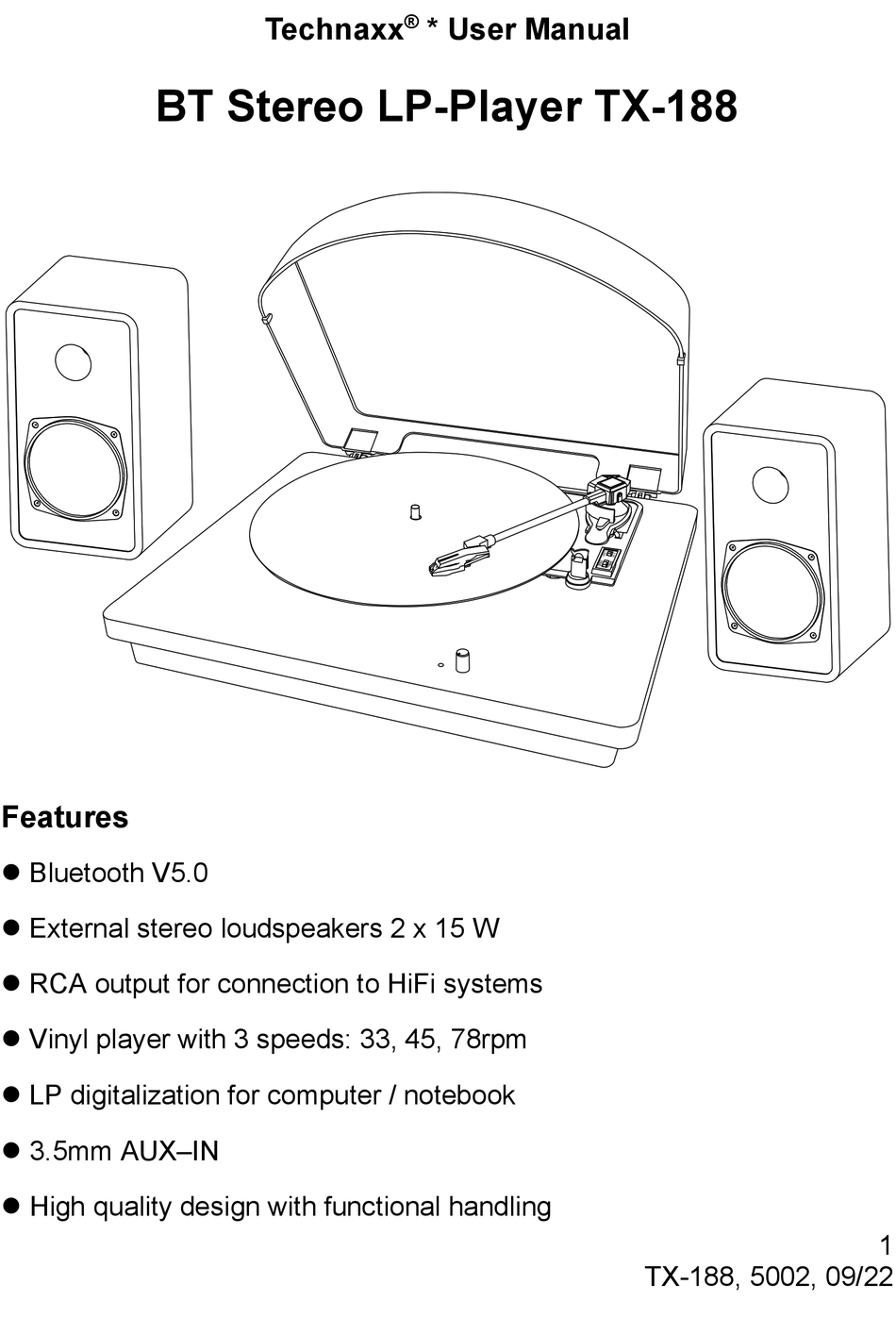

* User Manual
BT Stereo LP-Player TX-188
Features
Bluetooth V5.0
External stereo loudspeakers 2 x 15 W
RCA output for connection to HiFi systems
Vinyl player with 3 speeds: 33, 45, 78rpm
LP digitalization for computer / notebook
3.5mm AUX–IN
High quality design with functional handling
1
TX-188, 5002, 09/22
Advertisement
Table of Contents
Related Manuals for Technaxx TX-188
Summary of Contents for Technaxx TX-188
-
Page 1: Features
Technaxx ® * User Manual BT Stereo LP-Player TX-188 Features Bluetooth V5.0 External stereo loudspeakers 2 x 15 W RCA output for connection to HiFi systems Vinyl player with 3 speeds: 33, 45, 78rpm LP digitalization for computer / notebook ... -
Page 2: Table Of Contents
In case of warranty, please contact the dealer or the store where you bought this product. Enjoy your product * Share your experience and opinion on one of the well-known internet portals. TX-188, 5002, 09/22... -
Page 3: Technical Specifications
7kg / (L) 48.0 x (W) 43.0 x (H) 19.5cm / device / Dimensions speaker (L) 10.0 x (W) 9.5 x (H) 19.0 cm Bluetooth Stereo LP-Player TX-188, Package contents 45rpm single puck adapter, power adapter, user manual TX-188, 5002, 09/22... -
Page 4: Product Overview
3 Auto stop on / off switch 4 Speed selector 5 Security latch 6 Tone arm 7 Cartridge / Stylus 8 Turntable 9 Indicator Power / Bluetooth (Power red / Bluetooth blue) 10 Mode switch / Volume control TX-188, 5002, 09/22... -
Page 5: First Start
Carefully read the manual. Plug the power adapter into a 100-240V AC outlet and the other end into the TX-188 (16). Power on the device by pressing the Power button (17) at the back of the device. After that start the mode you like to playback. -
Page 6: Phono Mode (Vinyl)
45rpm record, use the included 45rpm adaptor. Remove the stylus guard and unlock the tone arm lock. Push the lift lever up to raise the tone arm and then gently move the tone arm to the desired position over the record. TX-188, 5002, 09/22... -
Page 7: Replacing The Stylus
When you have finished playing records, engage the tone arm lock to protect it from accidental movement. Unplug the TX-188 from the power supply if it is not going to be used for a while. -
Page 8: Bluetooth Mode
Then you should turn on your phone or other media device and start the Bluetooth searching function, receive carrier will receive the Bluetooth identification number for: “Technaxx TX-188”, when your Bluetooth device is connected, the speaker will beep. -
Page 9: Connecting To An External Amplifier
Plug one end of the Red and White RCA jacks into the LINE OUT ports(11/12) at the back of the TX-188 and the other end into R (red) and L (white) sockets at the back of the amplifier or external speakers. -
Page 10: Belt Drive Installation / Repair
Check that volume of external device is at 70-80%. Nothing will play via the BT device Make sure the BT is connected and the external device plays a sound. Reconnect the BT and check the set volume of LP Player and external device. TX-188, 5002, 09/22... -
Page 11: Hints
Service phone No. for technical support: 01805 012643* (14 cent/minute from German fixed-line and 42 cent/minute from mobile networks). Free Email: support@technaxx.de *The support hotline is available Mon-Fri from 9 am to 1 pm & 2 pm to 5 pm. TX-188, 5002, 09/22... -
Page 12: Declaration Of Conformity
Declaration of Conformity The EU Declaration of Conformity can be requested at the following address: www.technaxx.de/ (in the lower bar "Declaration of Conformity"). Disposal Disposal of the packaging. Sort packaging materials by type upon disposal. Dispose of cardboard and paperboard in the waste paper. Foils should be submitted for recyclables collection. - Page 13 Made in China Distributed by: Technaxx Germany GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany TX-188, 5002, 09/22...
