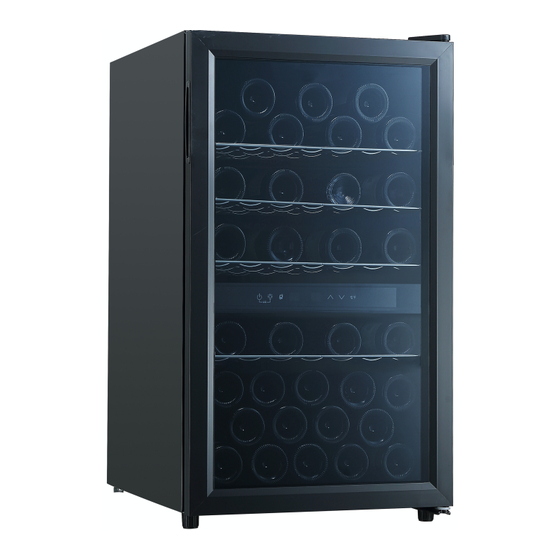

- Page 1 Wine Cooler Instruction Manual Model No. MWF124S NOTE: Thank you for purchasing the Mistral zoned wine cooler. Our product will create perfect temperature and humidity environment to store your collection of wine...
- Page 2 Thank you. Thank you for choosing a quality Mistral appliance. Mistral prides itself on ‘affordable living’ making sure there is no compromise in your favourite room..The Kitchen. not This product comes with a 2 Year replacement/refund warranty, be sure to retain your user manual and receipt.
-
Page 3: Table Of Contents
Installation ..........Product description ........8- 9 Operation........... 1 0-11 Troubleshooting .......... 12 Maintenance & Cleaning........ 13 Technical Parameters........14 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust Model: MWF124S. -
Page 4: Safety Instructions & Warnings
Safety Instructions Your safety is of the utmost importance to our company. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Consumer service support hotline. ●... - Page 5 Child Safety ● Do not allow children to play around or inside the appliance to avoid accidental entrapment. ● Do not allow children to hang on open doors that may cause appliance to tip over. ● Do not allow children to play around or access the rear of the appliance and touch components to avoid potential injury .
- Page 6 By ensuring that this appliance is disposed of • This appliance complies with all current correctly, you will help prevent any possible and applicable Safety standards, damage to the environment and to human manufacturer wishes to emphasize that health, which might otherwise be caused if it compliance does not remove the fact that were disposed of in the wrong way.
-
Page 7: Installation
Installation: Note: Position: Shelves, door frame, handle and other accessories could be different according to different models and configuration. Do not lean the appliance over 45°when moving it to All photos or drawings in this manual are for position. reference. The appliance you buy might not be exactly the same as shown here. - Page 8 Description of the appliance Overall image 12.Upper hinge cover 1. Housing 11. Upper hinge 2. Shelf 10.Handle 3. Cover board 9. Door seal 4. Control panel 5. Sensor shield 8. Door 6. Adjustable foot 7. Lower hinge Note: Shelves, door frame, handle and other accessories could be different according to different models and configuration.
- Page 9 Door reversing 1. Parts for door reversing: ①Door hinge cover ②Flange screw ③Door hinge ④Cap ⑤Lower door hinge 2. Reversing the door: Our wine coolers are delivered with the door opening from left to right. To reverse the opening direction: 1.
-
Page 10: Operation
Operation: 1. Cleaning the compartment Before powering on, clean inside of the appliance and check the drainage pipe is properly connected. （For details, please refer to the “Maintenance and cleaning”） 2. Direct after installation, having leveled the appliance and being positioned on a dry an firm floor, DO NOT power On the appliance, allow for the refrigerant in the cooling circuit to settle for at least 30 minutes . - Page 11 Loading capacity will vary in terms of 3. Alarm sound: when a system malfunction different way of bottle arrangement or occur and alarm sound, press any key on the different bottle sizes. control panel to cancel the alarm sound. Each shelf is designed to put on 1 or 2 layers of wine bottles.
-
Page 12: Troubleshooting
Troubleshooting: The appliance makes lots of Please adjust the front foot, keep the appliance noise? level. Please keep the appliance a bit clear from walls. Liquid flowing sound It is normal because of the refrigerant working inside the cabinet? inside. -
Page 13: Maintenance & Cleaning
Maintenance and cleaning: Disconnect the appliance before cleaning. Clean the appliance with soft cloth or sponge by water. Do not use organic solvents, alkaline detergent, boiling water, washing powder or acid liquid etc. Do not flush the compartment of the appliance. Clean regularly surfaces that can come in contact with accessible drainage systems. -
Page 14: Technical Parameters
Technical parameters Product model MWF124S Voltage/frequency 220-240V~/50Hz Refrigerant/weight R600a/27g Gross volume 124L Loading capacity 49 bottles Net weight 33.1kg Unit dimension(WxDxH) 480×575×855 mm Packing dimension(WxDxH) 510×605×890 mm Remarks: 1.The net weight includes shelves and the Unit dimension is withouthandle on the door. - Page 15 Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees. Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Mistral product will be free of manufacturing defects and will perform to the Company’s specifications.
- Page 16 You must provide proof of your purchase of the Mistral product and the date of purchase in order to obtain the benefit of this warranty. Mistral product by the Company (whether it is the original or a repaired and/or a replacement Mistral product) and for any other expenses you incur in claiming under this warranty.
