7.7.3 NomadLink network cable lengths

In situations where the amplifiers and the NLB 60E
will be positioned in different locations at some
distance from each other, or where groups of
amplifiers within a single subnet with up to 60 units
will be installed with a distance in between, these
general rules may be considered:

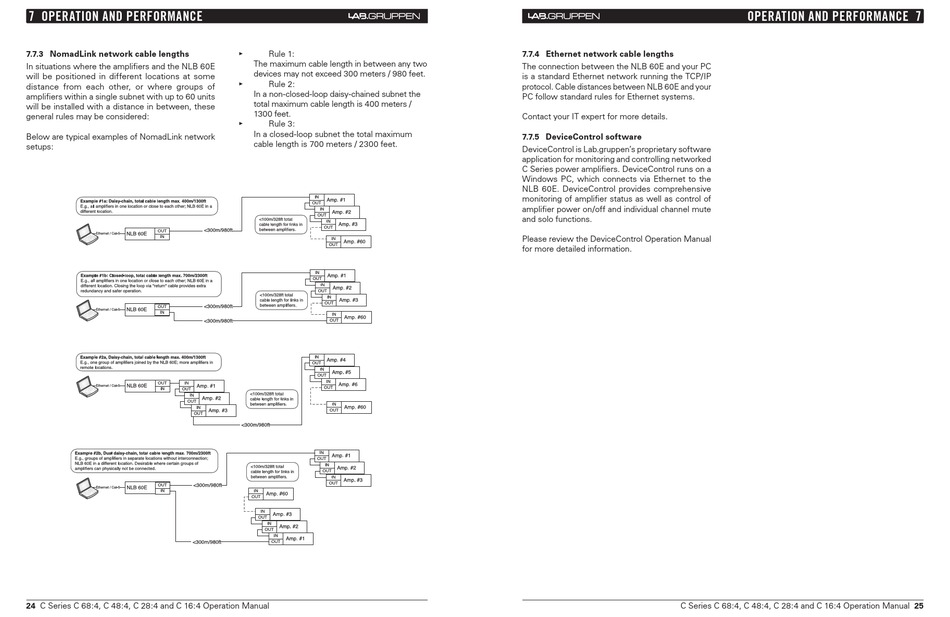

Below are typical examples of NomadLink network
setups:
24 C Series C 68:4, C 48:4, C 28:4 and C 16:4 Operation Manual
• Rule 1:
The maximum cable length in between any two
devices may not exceed 300 meters / 980 feet.
• Rule 2:
In a non-closed-loop daisy-chained subnet the
total maximum cable length is 400 meters /
1300 feet.
• Rule 3:
In a closed-loop subnet the total maximum
cable length is 700 meters / 2300 feet.
7.7.4 Ethernet network cable lengths
The connection between the NLB 60E and your PC
is a standard Ethernet network running the TCP/IP
protocol. Cable distances between NLB 60E and your
PC follow standard rules for Ethernet systems.
Contact your IT expert for more details.
7.7.5 deviceControl software
DeviceControl is Lab.gruppen's proprietary software
application for monitoring and controlling networked
C Series power amplifiers. DeviceControl runs on a
Windows PC, which connects via Ethernet to the
NLB 60E. DeviceControl provides comprehensive
monitoring of amplifier status as well as control of
amplifier power on/off and individual channel mute
and solo functions.
Please review the DeviceControl Operation Manual
for more detailed information.
