Installation and
Maintenance
Instructions
B-1460-SMB
B-1460-RMB
Limited One Year Warranty
(Commercial Applications)
T&S warrants to the original purchaser (other than for purposes of resale) that such product is free
from defects in material and workmanship for a period of one (1) year from the date of purchase.
During this one-year warranty period, if the product is found to be defective, T&S shall, at its option,
repair and/or replace it. To obtain warranty service, products must be returned to.....
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other transportation charges of the product to T&S and the return
of repaired or replaced product to the purchaser are the responsibility of the purchaser. Repair and/
or replacement shall be made within a reasonable time after receipt by T&S of the returned product.
This warranty does not cover items which have received secondary fi nishing or have been altered
or modifi ed after purchase, or for defects caused by physical abuse to or misuse of the product, or
shipment of the products.
Any express warranty not provided herein, and any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any implied warranties of merchantability or fi tness for a
particular purpose are limited to one year in duration. Under no circumstance shall T&S be liable for
loss of use or any special consequential cost, expenses or damages.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not
apply to you. Specifi c rights under this warranty and other rights vary from state to state.
Attention California Residents:
WARNING This product can expose you to chemicals including Lead, Chromium
(hexavalent compounds) and Phthalates (DEHP) which are known to the State of California
to cause cancer and birth defects or other reproductive harm.
For more information go to
www.P65Warnings.ca.gov.
P/N:
098-020941-45 Rev.1
DATE:
08-03-22
DRAWN:
TED
CHECKED:
JRM 08-15-22
APPROVED:
JHB 10-05-22

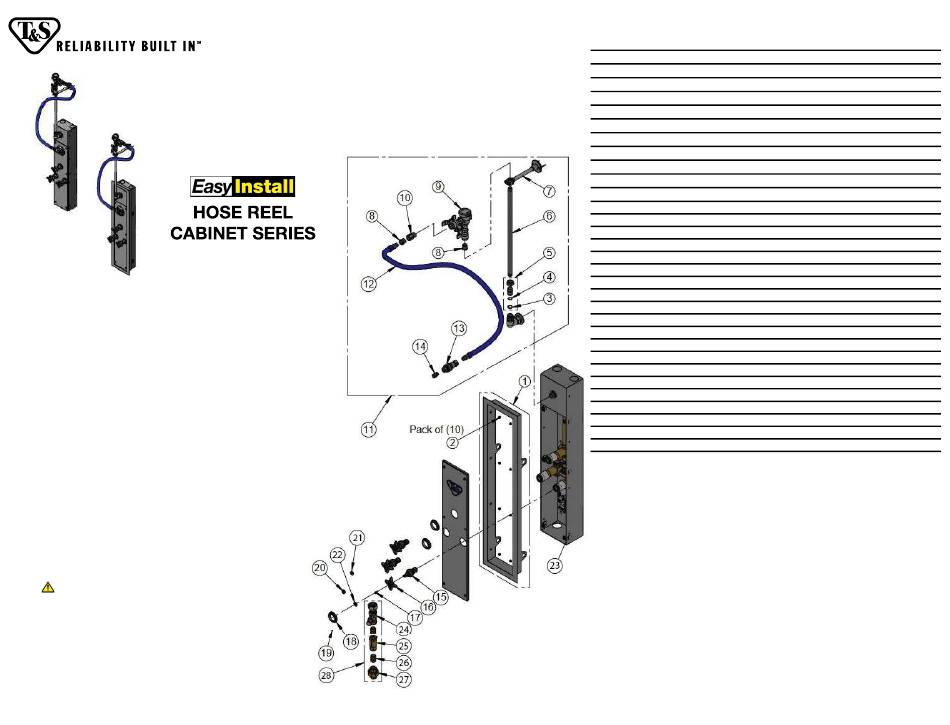

EasyInstall Hose Reel Cabinet Series

Recessed Mount Cabinet Assembly

1
SS Hose Reel System Cabinet Flange Recessed Mount
2
SS Flange Screws, 10-32 x 3/16 (qty 10)

Surface Mount Cabinet Assembly

3
Lock Washer
4
O-Ring
5
EasyInstall Kit: Nut, Bushing, O-Ring & Lock Washer
6
3/8" NPT x 18" Riser
7
6" Wall Bracket
8
Hex Bushing, 1/2" NPT Male x 3/8" NPT Female
9
Vacuum Breaker 1/2" NPT Female
10
Check Valve with 1/2" NPT Adapter
11
Hose Reel Connector Kit
12
3/8" NPT x 36" Flexible Connector Hose
13
3/8" NPT Quick Disconnect
14
3/8" NPT Close Nipple
15
Quarter-Turn Eterna w/ Spring Check, RTC (new style)
Quarter-Turn Cerama w/ Check Valve, RTC (new style)
16
4-Arm Handle (new style)
17
Lab Handle Screw
18
Escutcheon
19
Escutcheon, Set Screw
20
Red Button Index, Press In
21
White Blank Button Index
22
Blue Button Index, Press In
23
Snap-In Plug, Nickel Plated (qty 10) (for surface mount only)
24
Straight Loose Key Stop, Unplated
25
1/2" NPT Female Check Valve
26
Nipple, Close 1/2" NPT
27 1/2" Union, Unplated
28 Inlet Assembly
020828-45
020840-45
014200-45
001065-45
EZ-K
000369-40
B-0109-01
001359-40
B-0963
015073-40
0RK-SK
HW-2B-36
AW-5B
002535-25
012443-40NS
012394-25NS
002521-45NS
000925-45
020839-40
000939-45
001193-19NS
001205-19NS
018506-19NS
020843-45
020848-20
B-CVH1-2
002534-20
006649-20
020974-40
