GAS
ONE

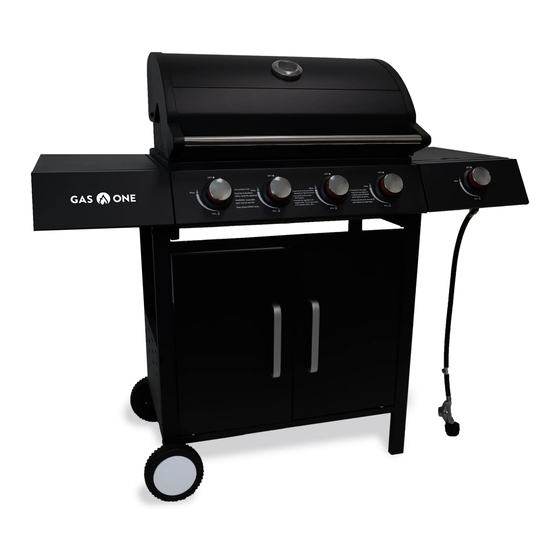

BBQ GAS GRILL OPERATION MANUAL
MODEL NO# GP-1040
FOR OUTDOOR USE ONLY
SOCIAL MEDIA
www.gasone.com
/gasoneusa
@gasoneusa
FOR CALIFORNIA CONSUMERS ONLY:
WARNING
!
Cancer and Reproducive Harm.
to www.P65Warnings.ca.gov
Commerce, CA 90040
support@gasone.com
Toll Free: 1.800.698.5070
Customer Service Hours:
M - F: 9 am - 5 pm (PST)
Advertisement
Related Manuals for GAS ONE GP-1040
Summary of Contents for GAS ONE GP-1040
- Page 1 BBQ GAS GRILL OPERATION MANUAL MODEL NO# GP-1040 FOR OUTDOOR USE ONLY SOCIAL MEDIA www.gasone.com /gasoneusa @gasoneusa FOR CALIFORNIA CONSUMERS ONLY: WARNING Cancer and Reproducive Harm. to www.P65Warnings.ca.gov Commerce, CA 90040 support@gasone.com Toll Free: 1.800.698.5070 Customer Service Hours: M - F: 9 am - 5 pm (PST)
- Page 2 TABLE OF CONTENTS SAFETY AND CARE ADVICE WARNING OPERATING INSTRUCTIONS PRODUCT PARTS ASSEMBLY...
- Page 3 SAFETY AND CARE INFORMATION •This appliance is designed for outdoor use only. •Please carefully read the assembly and safety instructions and keep this manual for further use. •Leak test all gas supply connections regularly using soap and water. •Do not use a flame to conduct a gas leak. •Keep the area around the grill clear of combustible materials, including gasoline and other flammable liquids and vapours.
- Page 4 If the hose is replaced it must be secured to the appliance and regulator connections with hose clips. Disconnect the regulator from the cylinder (according to the directions supplied with the regulator) when the barbecue is not in use. The barbecue must be used in a well ventilated area. Do not obstruct the flow of combus- tion air to the burner when the barbecue is in use.
- Page 5 7.To turn the barbecue off: turn the cylinder valve or regulator switch to the 'OFF' position and then turn all control knobs on the appliance clockwise to the 'OFF' position. Ignition Plug type gas valve with integrated piezo ignition. Warning: If the burner fails to ignite, turn all control knobs off (clockwise) and also turn the cylinder valve off.
- Page 6 OPERATING INSTRUCTIONS CONNECTING THE GAS CYLINDER TO THE APPLIANCE This appliance is only suitable for use with propane gas and fitted with the appropriate low-pressure regulator via a flexible hose. The hose should be secured to the regulator and the appliance with hose clips. 1.When the diameter of the injector is cp.91 , this barbecue is set to operate a 28-30 mbar regulator with butane gas and a 37 mbar regulator with propane gas, or a 30 mbar regulator with butane, propane gas or their mixtures.
- Page 7 clip). Inspect burner for any damage (cracks or holes). If damage is found, replace with a new burner. Reinstall the burner, check to ensure that the Gas valve orifices are correctly positioned and secured inside the burner inlet (venturi). SERVICING Your gas barbecue should be serviced annually by a competent registered person.
- Page 8 SAFETY RULES 1. This appliance is for outdoor use only. Carbon monoxide can kill; do not use in confined spaces. 2. Do not block the airway to the burners. 3. Make sure to check all parts are present and to read and understand the assembly instructions before beginning assembly.
- Page 9 PRODUCT PARTS...
- Page 13 ASSEMBLY...
- Page 17 Do not over tighten Caution do not tighten as it can damage the all the way until you align grill. Part 26,27,28.
- Page 19 Please remove 2 shipping protective metal bracket before assembly...
