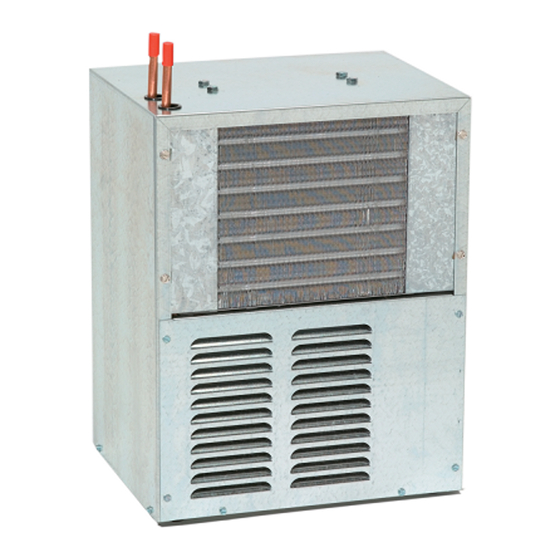

- Page 1 SJ8Q_1P Refrigeration Package INSTALLATION, CARE AND USE MANUAL (630) 574-8484 Halsey Taylor Page 1 2000000695 (Rev. A - 07/22)
- Page 2 General ......3 SJ8 Series......7 Safety Alert Symbol.
-
Page 3: Think Safety
1.1 General injury. The signal word that CAUTION Halsey Taylor cannot anticipate every possible indicates a hazard with circumstance that might involve a potential hazard a low level of risk which, if not avoided, could result in during the installation of this product. The warnings minor or moderate injury. and instructions in this Installation / Use & Care The signal word that indicates manual are, therefore, not all-inclusive. -
Page 4: Personal Protection
OFF. Placing fingers in or around the cutting blades could result in serious personal injury. Halsey Taylor (630) 574-8484 Page 4 2000000695 (Rev. A - 07/22) -
Page 5: General Information
USA/Canada Customer Care a properly ventilated, non-visible location. Phone: 800.476.4106 This manual contains Installation, Use & Care Email: CustCare@HalseyTaylor.com instructions for the SJ8 series Remote Chiller units. International Customer Care Followed carefully, these instructions will result in Phone: 630.575.4755 trouble-free installation of this Halsey Taylor product. Email: IntlCare@HalseyTaylor.com... - Page 6 LEGEND A = 1/4" O.D. TUBE WATER OUTLET B = 1/4" O.D. TUBE WATER INLET C = TEMPERATURE ADJUSTMENT D = ELECTRICAL 1 3/4" REF. 95mm 16 3/4" 425mm Halsey Taylor (630) 574-8484 Page 6 2000000695 (Rev. A - 07/22)
-
Page 7: Tools And Supplies
• If inlet pressure is above 100 psig (0.69 MPa), Protective gloves a pressure regulator must be installed in water Hex driver supply line. Any damage caused by the water pressure outside its rated pressure is not covered by warranty. 5. Ratings 5.1 SJ8 Series Description Electrical 115VAC, 60Hz, (See nameplate 220VAC, 50/60Hz, (See nameplate for Amperage), 1 phase for Amperage), 1 phase Ambient Air Temp. 50-90 °F (10-32 °C) Water Pressure 20-100 psig (0.14-0.69 MPa) -
Page 8: Installation: Electrical Connection
This chiller is manufactured Electrical in such a manner that it does not in any way cause taste, odor, color or sediment problems. Ground Wire 8. Connect chiller to building supply with a shut-off valve and install the in-line strainer between the valve and chiller. 9. Electrical: Make sure power supply is identical in voltage, cycle, and phase to that specified on chiller serial plate. Never wire the compressor directly to the power supply. Halsey Taylor (630) 574-8484 Page 8 2000000695 (Rev. A - 07/22) -
Page 9: Service Adjustments
O-ring seal. To remove the plug from Chiller, relieve the water pressure, pull the collar towards the fitting and then pull the fitting from the tube. To install the plug, push the fitting straight onto the tubing until it reaches a positive stop, which should be approximately 3/4” (19mm). Refer page 10 for quick connect fittings. (630) 574-8484 Halsey Taylor Page 9 2000000695 (Rev. A - 07/22) - Page 10 TUBE IS SECURED PUSH IN COLLET TUBE TO ATTACH IN POSITION TO RELEASE TUBE PUSHING TUBE IN BEFORE PULLING IT OUT HELPS TO Fig. 3 RELEASE TUBE Wiring Diagram Fig. 4 Halsey Taylor (630) 574-8484 Page 10 2000000695 (Rev. A - 07/22)
- Page 11 NOTE: All correspondence pertaining to any of the above water chiller or orders for repair parts MUST include model number and serial number of chiller, name and part number of replacement part. 8,11 Fig. 4 (630) 574-8484 Halsey Taylor Page 11 2000000695 (Rev. A - 07/22)
