Rover EXA 700 TAB User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

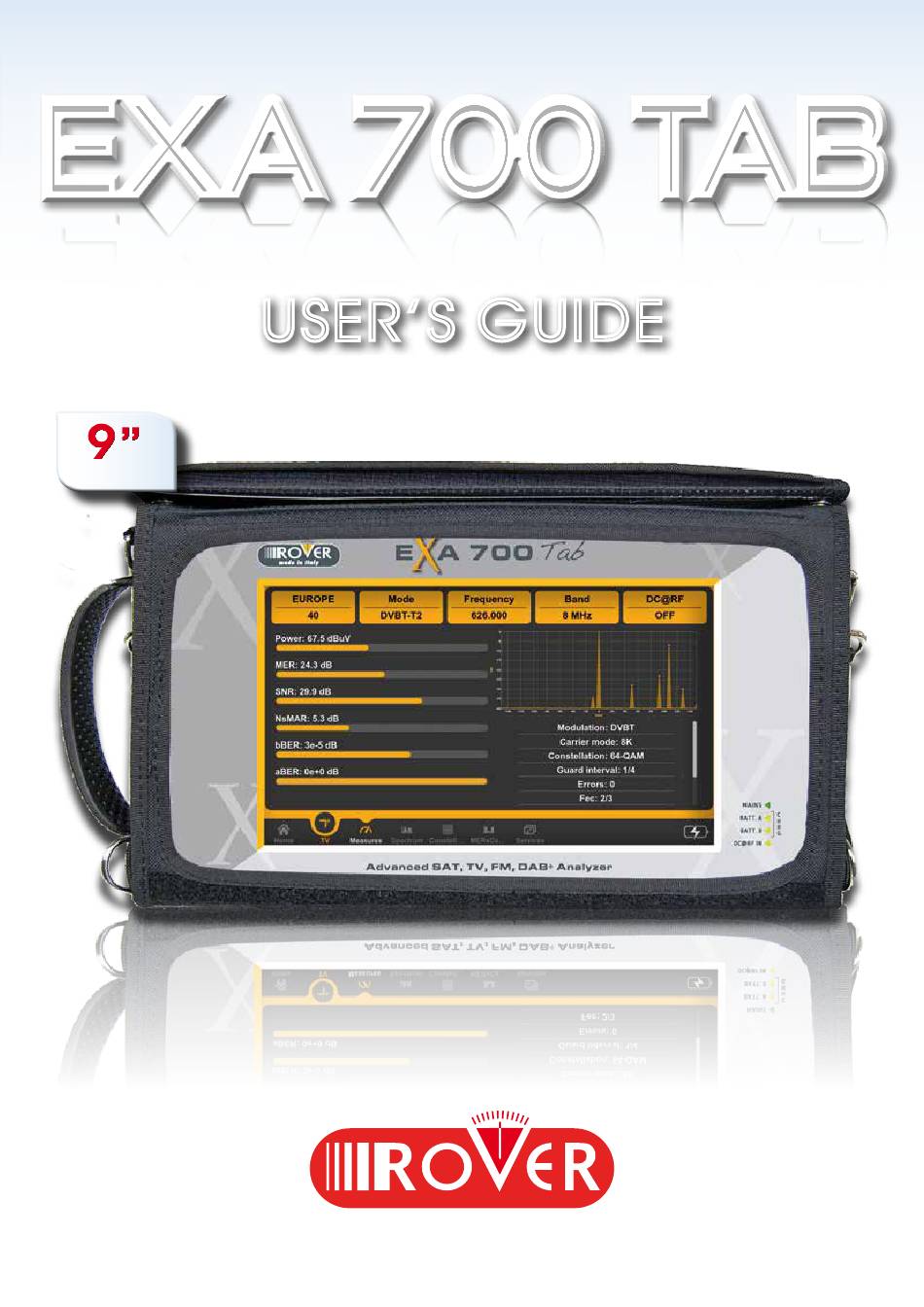

EXA 700 TAB
EXA 700 TAB
E X A 7 0 0 T A B
E X A 7 0 0 T A B
DISPLAY
DISPLAY
USER'S GUIDE
Www.roverinstruments.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the EXA 700 TAB and is the answer not in the manual?

Questions and answers

Related Manuals for Rover EXA 700 TAB

Summary of Contents for Rover EXA 700 TAB

  • Page 1 EXA 700 TAB EXA 700 TAB E X A 7 0 0 T A B E X A 7 0 0 T A B USER’S GUIDE DISPLAY DISPLAY Www.roverinstruments.com...
  • Page 2 GET TO KNOW YOUR EXA 700 TAB FRONT PANEL __________________________________ A. Display Touch 9” Pollici B. LEDs • POWER Or press the ‘HOME’ To turn on To turn off Button once and press the press and hold touch the ‘HOME’ key.
  • Page 3 SIDE PANELS _____________________________________________________ • TOP SIDE 1. TV/RF Ingress type “N” 50 Ω 2. SAT/RF ingress type “F” 75 Ω 3. DC at RF IN ON/OFF Remote power switch 4. Slot Common Interface for CAM Module 5. ASI Transport Stream IN/OUT 6.
  • Page 4 MULTI-PURPOSE BAG Make work easier by taking advantage of your multi-purpose bag. Work safely and without restrictions with both hands free. Connect the shoulder strap to the two hooks at the corners of the bag (top left and bottom right), so you can hang your meter around your neck leaving both hands free.

  • Page 5: Instrument Configuration

    INSTRUMENT CONFIGURATION Touch SETTING ICON to access Settings menu configuration to the General settings menu Touch NETWORK ICON to access Touch DATE & TIME ICON to access to the Network settings menu to the Date & Time Actualization menu Touch FILES ICON to access Touch UPGRADE ICON to access to the Local Memory menu to the Software Upgrade menu...
  • Page 6 SCREEN SHOT The “SCREEN SHOT” function allows you to directly save the TFT monitor screens in an external memory. • If you wish, connect an external memory source (not provided) to the USB A 3.0 or 2.0 socket otherwise the USB ICON will not appear •...
  • Page 7 DVB-T/T2 TELEVISION ANALYZER SWITCH TO TV MODE ________________________________________ Touch the TV Icon Main TV measurements screen Touch EUROPE and select the Touch MODE if you want to Country & Channel desired, touch change the receiving mode APPLY to confirm or EXIT Touch FREQUENCY if you want to Touch BAND if you want to change change the frequency received...
  • Page 8 ECHOES VISUALIZATION & MARKERS SELECTION Touch the ECHOES GRAPHIC to zoom IN Touch the colored MARKERS BOXES the Impulse response to select the available markers DVB-T TRANSMISSION PARAMETERS ____________________ Touch the PARAMETERS LIST to zoom IN DVB-T transmission parameters list the transmission parameters example DVB-T2 TRANSMISSION PARAMETERS...
  • Page 9 INFO DVB-T2 ___________________________________________________ Touch INFO T2 to access to DVB-T2 informations PLP SELECTION ________________________________________________ Touch SELECTION PLP to access to PLP Selection menu...
  • Page 10 TV SPECTRUM ANALYZER SWITCH TO TV SPECTRUM MODE ________________________ Touch the TV Icon Touch the Spectrum Icon TV Spectrum example Touch SPAN to change the Span value Touch dB/DIV to change Touch REFERENCE LEVEL to the dB division value change the Reference Level value MARKERS, MAX and MIN HOLD, AVERAGE, Touch MARKERS to access to the SHOULDER SX and DX CONFIGURATION EXAMPLE...
  • Page 11 TV CONSTELLATION ANALYZER SWITCH TO TV CONSTELLATION MODE ________________ Touch the TV Icon Touch the Constellation Icon DVB-T Constellation example DVB-T2 Constellation example...
  • Page 12 TV MER VS CARRIER ANALYZER SWITCH TO MER VS CARRIER MODE ___________________ Touch the TV Icon Touch the MER VS CARRIER Icon DVB-T MER VS CARRIER analyser Touch Markers to access to the example Markers setup menu MARKERS, MAXIMUM and MINIMUM, AVERAGE CONFIGURATION EXAMPLE...
  • Page 13 TV MPEG SERVICE SWITCH TO TV MPEG SERVICE MODE __________________ Touch the TV Icon Touch the Service Icon TV Service List example Touch the SERVICE desired Touch the PLAY SYMBOL to start FULL SCREEN image example the selected TV channel...
  • Page 14 TV ETR 290 ANALYZER SWITCH TO TV ETR 290 ANALYZER MODE _____________ Touch the TV Icon Touch the Service Icon TV Service List example Touch ETR-290 icon to start ETR Analyzer...
  • Page 15 TV STREAM RECORDING SWITCH TO TV STREAM RECORDING MODE _________ Touch the TV Icon Touch the Service Icon TV Service List example Touch RECORD Icon to Start and Stop TV Stream recording...
  • Page 16 DVB-S/S2 SATELLITE ANALYZER SWITCH TO SAT MODE ______________________________________ Touch the SAT Icon Main SAT measurements screen Touch EUTE 5 and select the Touch MODE if you want to Satellite & Transponder desired, change the receiving mode touch APPLY to confirm or EXIT Touch FREQUENCY if you want to Touch OSCILLATOR if you want to change the frequency received...
  • Page 17 PLS SELECTION ________________________________________________ Touch SELECTION PLS to access to PLS Selection menu ISI SELECTION __________________________________________________ Touch SELECTION ISI to access to ISI Selection menu...

  • Page 18: Sat Spectrum

    SAT SPECTRUM ANALYZER SWITCH TO SAT SPECTRUM MODE _______________________ Touch the SAT Icon Touch the Spectrum Icon SAT Spectrum example Touch SPAN to change the Span value Touch dB/DIV to change Touch REFERENCE LEVEL to the dB division value change the Reference Level value MARKERS, MAX and MIN HOLD, AVERAGE, Touch MARKERS to access to the SHOULDER SX and DX CONFIGURATION EXAMPLE...
  • Page 19 SAT CONSTELLATION ANALYZER SWITCH TO SAT CONSTELLATION MODE ______________ Touch the SAT Icon Touch the Constellation Icon DVB-S Constellation example DVB-S2 Constellation example...
  • Page 20 MPEG SERVICE SWITCH TO SAT MPEG SERVICE MODE ________________ Touch the SAT Icon Touch the Service Icon SAT Service List example Touch the SERVICE desired Touch the PLAY SYMBOL to start FULL SCREEN image example the selected SAT channel...
  • Page 21 SAT ETR 290 ANALYZER SWITCH TO SAT ETR 290 ANALYZER MODE ____________ Touch the SAT Icon Touch the Service Icon SAT Service List example Touch ETR-290 icon to start ETR Analyzer...
  • Page 22 SAT STREAM RECORDING SWITCH TO SAT STREAM RECORDING MODE ________ Touch the SAT Icon Touch the Service Icon SAT Service List example Touch RECORD Icon to Start and Stop SAT Stream recording...
  • Page 23 ANALYZER SWITCH TO TV DAB MODE _________________________________ Touch the DAB Icon Main DAB Measurements screen Touch DAB and select the Channel Touch MODE if you want to change the desired, touch APPLY to confirm or EXIT Receiving Mode Touch FREQUENCY if you want to Touch DC@RF if you want to change the Frequency received enable Remote Power Supply...
  • Page 24 ECHOES VISUALIZATION & MARKERS SELECTION Touch the ECHOES GRAPHIC to zoom IN Touch the colored MARKERS BOXES the Impulse response to select the available markers TRANSMISSION PARAMETERS _____________________________ Touch the PARAMETERS LIST to zoom IN DAB transmission parameters list example the transmission parameters...
  • Page 25 DAB SPECTRUM ANALYZER SWITCH TO DAB SPECTRUM MODE _____________________ Touch the DAB Icon Touch the Spectrum Icon DAB Spectrum example Touch SPAN to change the Span value Touch dB/DIV to change Touch REFERENCE LEVEL to the dB division value change the Reference Level value MARKERS, MAX and MIN HOLD, AVERAGE, Touch MARKERS to access to the SHOULDER SX and DX CONFIGURATION EXAMPLE...
  • Page 26 DAB CONSTELLATION ANALYZER SWITCH TO DAB CONSTELLATION MODE _____________ Touch the DAB Icon Touch the Constellation Icon DAB Constellation example...
  • Page 27 DAB MER VS CARRIER ANALYZER SWITCH TO DAB MER VS CARRIER MODE _____________ Touch the DAB Icon Touch the MER VS CARRIER Icon DAB MER VS CARRIER analyser Touch Markers to access to the example Markers setup menu MARKERS, MAXIMUM and MINIMUM, AVERAGE CONFIGURATION EXAMPLE...
  • Page 28 DAB MPEG SERVICE SWITCH TO DAB MPEG SERVICE MODE _______________ Touch the DAB Icon Touch the Service Icon DAB Service List example...
  • Page 29 DAB STREAM RECORDING SWITCH TO DAB STREAM RECORDING MODE _______ Touch the DAB Icon Touch the Service Icon DAB Service List example Touch RECORD Icon to Start and Stop DAB Stream recording...
  • Page 30 ANALYZER SWITCH TO FM MODE _______________________________________ Touch the FM Icon Main FM measurements screen Touch FREQUENCY if you want to Touch MODE if you want to change the frequency received change the receiving mode Touch DC@RF if you want to enable remote power supply...
  • Page 31 MPX VISUALIZATION & MARKERS SELECTION ________ Touch the MPX GRAPHIC to zoom IN Touch the colored MARKERS BOXES the MPX Informations to select the available markers TRANSMISSION PARAMETERS _____________________________ Touch the PARAMETERS LIST to zoom IN FM transmission parameters list example the transmission parameters RDS TRANSMISSION PARAMETERS ______________________...
  • Page 32 FM SPECTRUM ANALYZER SWITCH TO FM SPECTRUM MODE _______________________ Touch the FM Icon Touch the Spectrum Icon FM Spectrum example Touch SPAN to change the Span value Touch dB/DIV to change Touch REFERENCE LEVEL to the dB division value change the Reference Level value MARKERS, MAX and MIN HOLD, AVERAGE, Touch MARKERS to access to the SHOULDER SX and DX CONFIGURATION EXAMPLE...
  • Page 33 ANALYZER SWITCH TO ASI MODE _______________________________________ Touch the ASI/IP/FILE Icon Main ASI measurement screen Example about T2MI MULTI PLP Touch ERT-290 ICON to start ETR-290 analyzer Example of PLP Selection T2MI Informations when receiving a T2MI Stream...
  • Page 34 ANALYZER SWITCH TO IP MODE ________________________________________ Touch the ASI/IP/FILE Icon Touch IPTV ICON to start IPTV analyzer Touch ETR-290 ICON to start ETR-290 Touch IP STATIC ICON to start IPTV analyzer measures Example about T2MI MULTI PLP Example of PLP Selection when receiving a T2MI Stream T2MI Informations...
  • Page 35 FILE ANALYZER SWITCH TO FILE MODE ______________________________________ Touch the ASI/IP/FILE Icon Touch TS FILE ICON and select the file desired analyzer Example about T2MI MULTI PLP Example of PLP Selection when receiving a T2MI Stream T2MI Informations...
  • Page 36 ANALYZER SWITCH TO ETI MODE _______________________________________ Touch the ETI/EDI Icon Select the file required Main ETI screen...
  • Page 37 ANALYZER SWITCH TO EDI MODE ______________________________________ Touch the ETI/EDI Icon Touch EDI ICON Main EDI screen...
  • Page 38 FILES SWITCH TO FM SPECTRUM MODE _______________________ Touch the SETTINGS Icon to access Touch FILES Icon to access to the GENERAL SETTINGS menu at the local Memory Touch FILES Icon to accesso at the Example of opening a DATA-SHOOT file local Memory folder desired Example of opening a SCREENSHOOT file...
  • Page 39 NOTES...
  • Page 40 EXA 700 TAB TECHNICAL SPECIFICATIONS Supported standards DVB-S SAT: DVB-S2&S2X Single Stream DVB-S2&S2X Multi-Stream (for Broadcast Multiple Network, Transmitters feeding) DVB-T DVB-T2 Multi-PLP RADIO: DAB/DAB+ ASI: ASI IN/OUT LAN: TSoverIP and EDI input RF input performances (42-2.250 MHz) 2 RF inputs: 1- 75 Ω...
  • Page 41 BER before Viterbi (DVB-S): up to 1E-06 BER after Viterbi (DVB-S): up to 1E-08 BCH (DVB-S2): up to 1E-06 LDPC (DVB-S2): up to 1E-08 Constellation: Constellation diagram Digital Terrestrial TV DVB-T Standard: DVB-T2 RF input: 50 Ω “N” connector 25 to 130 dBµV - Max input power without damage +30dBm Input level range: (30V without simultaneous generation of internal voltage to the RF input) Frequency range:...
  • Page 42 Graphics: MPX spectrum Audio: RDS: PS, PT, TP, Clock, Text and Alternatives Frequency LAN IP/ASI/EDI IP Interface LAN: 1 Gb/s Ethernet interface UNICAST/MULTICAST RTP/UDP IP protocol: IP measurement Streaming status: Present, Not Present Number of MPEG packet size: 1 - 7 TS packet size: 188, 204 Number of missing packets:...
  • Page 43 TS information monitoring PSI/SI tables decoding: Visualization of service list, stream type PMT decoding: Service PID composition; real time refresh on service selection TS total bitrate, Stuffing rate Service bitrate, ES bitrate 0 to 270Mb/s Resolu- Bitrate measurement: tion 1kb/s T2MI information: L1 &...
  • Page 44 NOTES...
  • Page 45 NOTES...

  • Page 46: Suggested Values

    SUGGESTED VALUES This table shows the suggested measurements at a user’s socket for the main digital modulations. This table shows the suggested measurements at a user’s socket for the main digital modulations. � � DVB-T2 & GB COFDM DVB-T2 & dBµV dBµV GB COFDM...
  • Page 47 GUARANTEE REGULATIONS: 1. IMPORTANT: the guarantee is valid only upon the presentation of invoice or receipt to ROVER Laboratories S.p.A. The purchase date must be clearly indicated on the invoice/receipt.

  • Page 48: Disposal Of Electronic Equipment

    Risks and costs for transport to ROVER Laboratories S.p.A. must be sustained by the buyer. After repair, if the equipment is under guarantee, ROVER Laboratories S.p.A. will pay for the transport returning the goods to the customer. If the instrument is not under guarantee, after repair, the equipment will be returned by courier service with the amount to be paid by the customer shown on the invoice.

  • Page 49: Meter Maintenance

    Do not use hairdryer or other strong heating sources, but just leave the meter in quiet air. If possible, contact Rover Laboratories S.p.A. Technical Assistance.
  • Page 50 • IBAN code *: ..............................* Fields NOT required for official ROVER dealers (required for any end customer). N.B. Please enter the TAX CODE even if it the same as your VAT number. In the case of sole proprietorship, please communicate the name and surname of the owner.
  • Page 51 INDEX – Get to know your EXA 700 TAB – Multi-porpose bag – Instrument Configuration – Screenshot – DVB-T/T2 Television Analyzer – TV Spectrum Analyzer – TV Constellation Analyzer – TV MER vs CARRIER Analyzer – TV MPEG Service –...

  • Page 52: Customer Support

    CUSTOMER SUPPORT Wecare@roverinstruments.com Skype only for call ® wecare.roverinstruments UG-EXA700TAB-EN-V1 Designed in Europe, Assembled in Europe RO.VE.R. LABORATORIES S.p.A. Via Parini 2, 25019 Sirmione (BS) Italy tel. +39 030 9198 1 fax +39 030 990 6894 Product specification are subject to change without notice . All trademarks used are properties of their respective owners.
