dSCR Multiswitch
TdSCR504/508/512/516

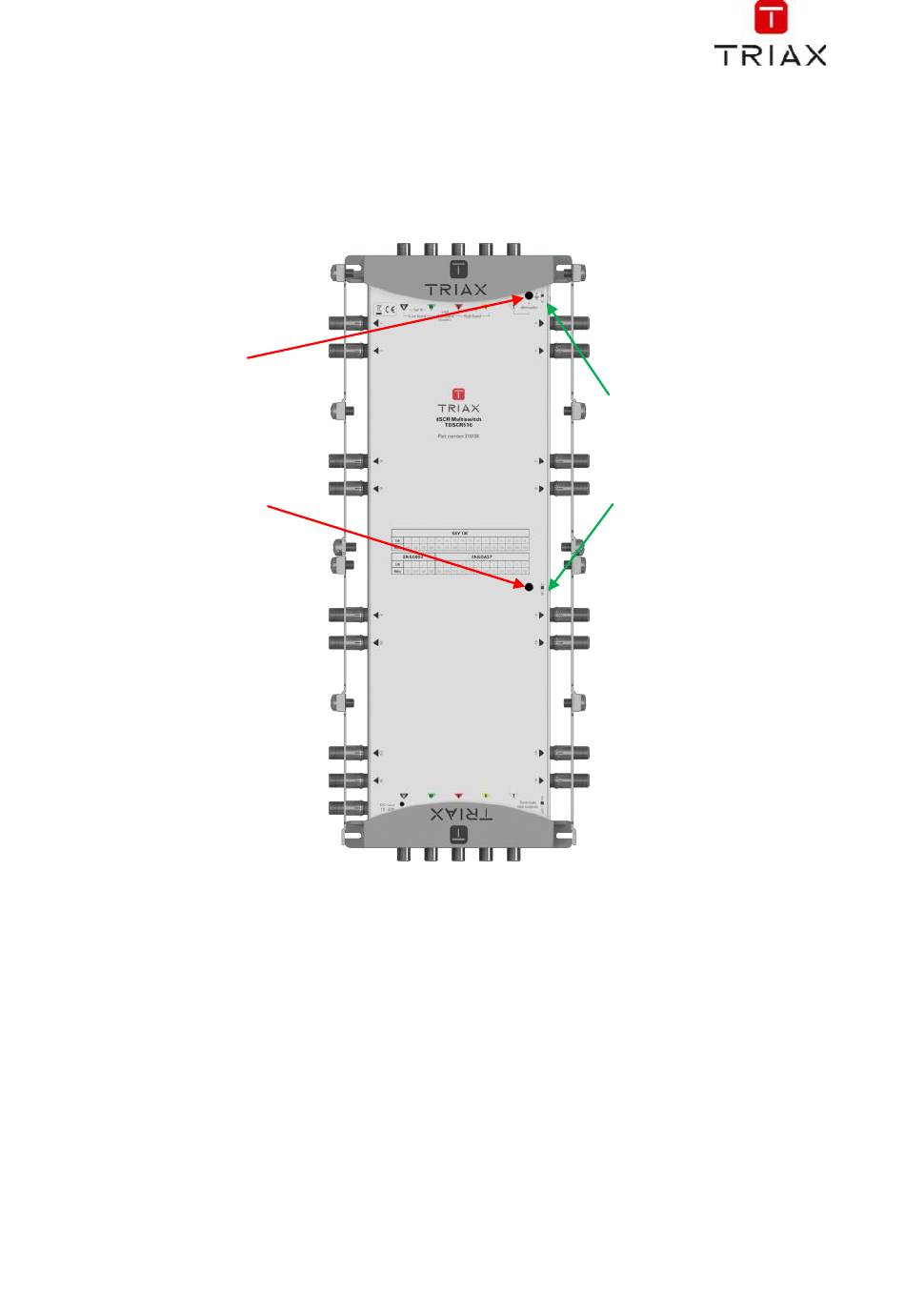

Please note on the 16 output
switch there are 2 x
Terrestrial adjustments. The
top potentiometer adjusts the
terrestrial output level for
subscriber outputs 1 –
The potentiometer in the
middle of the switch adjusts
the terrestrial output level for
subscriber outputs 9 - 16
16 output switch TdSCR516 (318188)
2
On the 16 output switch there
are 2 Quattro and Wideband
switches. These must both be in
the same mode. For example, if
Quattro is selected on the first
switch it must also be seleceted
on the second switch
