- Page 1 Multiswitch TdSCR 504/508/512/516 Article Article no. TdSCR 504 318185 dSCR TdSCR 508 318186 Multiswitch TdSCR 512 318187 TdSCR516 318188 Version D Date 06/2020 EN / DE...
-
Page 2: Product Description

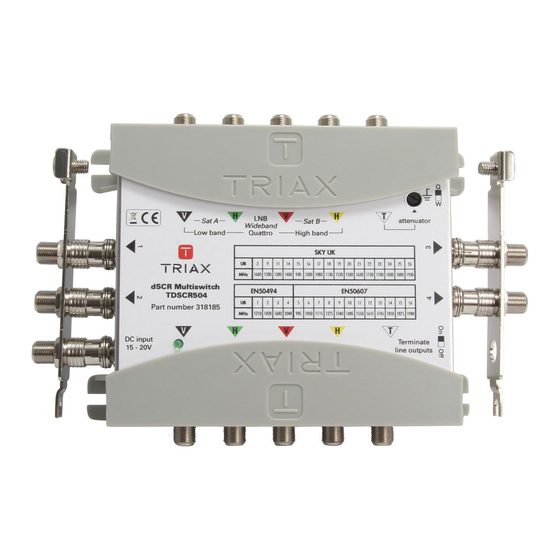

dSCR Multiswitch TdSCR504/508/512/516 Product description The product is designed to support a wide range of new and existing multiswitch installations. Each unit has: • 4 cascadeable LNB inputs from 1 universal Quattro LNB (VL HL VH HH) or 2 Wideband LNB’s (V &... - Page 3 dSCR Multiswitch TdSCR504/508/512/516 16 output switch TdSCR516 (318188) Please note on the 16 output switch there are 2 x Terrestrial adjustments. The On the 16 output switch there top potentiometer adjusts the are 2 Quattro and Wideband terrestrial output level for switches.
-
Page 4: Switch Installation
dSCR Multiswitch TdSCR504/508/512/516 Switch Installation The equipment should be mounted in a well-ventilated area. Connect the power supply to the switch, this can be done via the DC input, or via the Trunk lines. When power is connected, a green LED on the front of the switch should be lit. All four Satellite trunks have DC available on inputs and outputs, except if the switch is used as a terminated unit. - Page 5 dSCR Multiswitch TdSCR504/508/512/516 H Sat A H Sat B V Sat A V Sat B Terr Note: when using the product in wideband mode, the product will automatically make the translation between the input frequency and the output frequency. For example a STB tunes to Horizontal High band, the product will convert the incoming horizontal band 1290- 2340MHz into the output range between 1100-2150MHz.
- Page 6 dSCR Multiswitch TdSCR504/508/512/516 Sky UK standard for SkyQ STB’s SkyQ STB’s support 16 userbands EN50494/SCR standard (DiSEqC 1.0) STB’s that only support EN50494 will only be able to use the first 4 user bands. EN50607/dCSS/dSCR standard (DiSEqC 2.0) STBs that support the newer EN50607 will be able to use all user bands (UB1 through UB16). This is typical for new multi- tuner STBs.
-
Page 7: Technical Specifications
Multiswitch TdSCR504/508/512/516 Technical Specifications TdSCR504 – Triax Unit Specification Part No. 318185 Inputs 4 SAT (1x quattro or 2 x wideband) + 1 TERR User outputs 4 Outputs with 16 User bands Impedance inputs- / outputs Frequency range SAT: 950 –... - Page 8 Multiswitch TdSCR504/508/512/516 TdSCR508 – Triax Unit Specification Part No. 318186 Inputs 4 SAT (1x quattro or 2 x wideband) + 1 TERR User outputs 8 Outputs with 16 User bands Impedance inputs- / outputs Frequency range SAT: 950 – 2150 dCss, Legacy 290 –...
- Page 9 Multiswitch TdSCR504/508/512/516 TdSCR512 – Triax Unit Specification Part No. 318187 Inputs 4 SAT (1x quattro or 2 x wideband) + 1 TERR User outputs 12 Outputs with 16 User bands Impedance inputs- / outputs Frequency range SAT: 950 – 2150 dCss, Legacy 290 –...
- Page 10 Multiswitch TdSCR504/508/512/516 TdSCR516 – Triax Part Unit Specification No. 318188 Inputs 4 SAT (1x quattro or 2 x wideband) + 1 TERR User outputs 16 Outputs with 16 User bands Impedance inputs- / outputs Frequency range SAT: 950 – 2150 dCss, Legacy 290 –...
-
Page 11: Design Examples
dSCR Multiswitch TdSCR504/508/512/516 Design Examples Hybrid system using dSCR and legacy Switches Quattro LNB TFC FM/ DAB/UHF Power Supply 318170 318161 318113 318185 318186 318160 318119 318180 318187 318185 318101... - Page 12 dSCR Multiswitch TdSCR504/508/512/516 2 Satellite system using dSCR Switches in Wideband mode Wideband Wideband TFC FM/ DAB/UHF 307777 307777 Note: Sky must be connected to inputs 1 and 2 318187 Power Supply All TdSCR switches on the system must be switched to Wideband mode All outputs work in dSCR mode (support SkyQ), Legacy...
- Page 13 dSCR Multiswitch TdSCR504/508/512/516 N N N N otes...
- Page 14 Peut être sujet à modification sans préavis Copyright © 2020 TRIAX. All rights reserved. The TRIAX Logo and TRIAX Multimedia are registered trademark(s) of the TRIAX Company or its affiliates. TRIAX A/S | Bjørnkærvej 3 | 8783 Hornsyld | Denmark...
