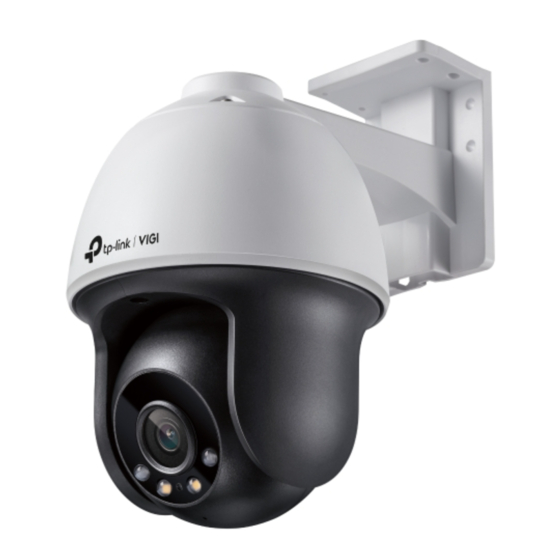

TP-Link VIGI C540 Quick Start Manual

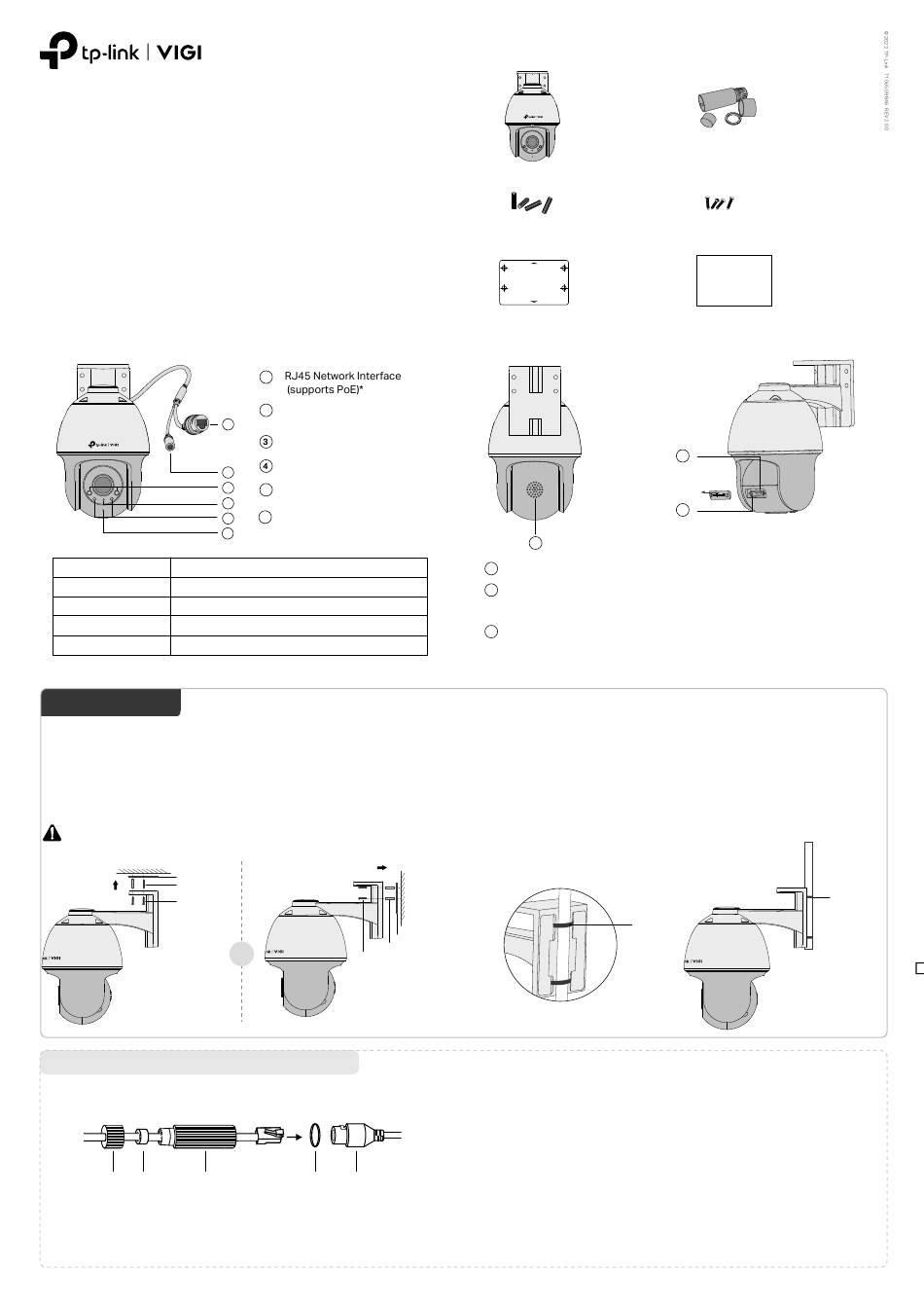

Quick Start Guide
*Images may differ from actual products.
Appearance
Status LED Indication
Solid Red Starting up
Blinking Red Slowly Disconnecting from the internet
Solid Green Working normally and connecting to the internet.
Camera upgrading
Blinking Green Quickly
Camera resetting
Blinking Red Quickly
*The camera's standard power supply is 12V DC (14W) or PoE (802.3af/at).
1
Mount Camera
Wall Mounting
Option 1: Wall/Ceiling Mounting
1. Stick the mounting template to the desired mounting place. Drill 4 screw holes
according to the template.
2. Insert the anchors into the holes, use the provided screws to fix the camera's
bracket to the wall or ceiling.
Note: Make sure that the wall is strong enough to withstand 3 times the
weight of the camera and mounting bracket .
Mounting Template
Anchor
Self-tapping Screw
Installing Waterproof Cable Attachments
Install the waterproof cable attachments for the network interface when the camera is installed outdoors.
Note: Make sure each part is securely attached and the waterproof rings are flush to keep out water.
Fix Nut Waterproof Waterproof
Ring Jacket
1. Route the network cable through the following components in order: fix nut,
waterproof ring, and then the waterproof jacket.
2. Fix the O-ring to the network interface of the camera and connect the network
cables.
1
Power Supply Interface
2
(12V DC)
1
Infrared LED
Status LED
2
3
5 White LED
4
Built-in Microphone
6
5
6
Mounting Template
OR
Anchor
Self-tapping Screw
O-ring Network
Interface
Package Contents
Network Camera
Anchors x 4
Mounting Template
7
Speaker
7
Micro SD Card Slot
8
Insert a micro SD card for local storage. Initialize the SD card via VIGI app before
recording videos.
Reset Button
9
Long press the button to reset the camera to factory settings.
Option 2: Pole Mounting
1. Thread each of the two cable ties through the slits on the back of the camera's
bracket indicated below.
2. Slip the two cable ties through the pole. Tighten them to firmly attach the pole.
Cable Tie
3. Attach the network interface with the waterproof jacket, then twist to lock.
4. Insert the waterproof ring into the waterproof jacket. Rotate the fix nut to secure
it to the waterproof jacket.
Waterproof Cable
Attachments
Screws x 4
Quick
Quick Start Guide
Start
Guide
8
9
Note: Before inserting the micro SD card or resetting
the camera, rotate the sphere and unfasten the two
fixed screws to remove the cover.
Cable Tie
